Design and analysis of Cartesian 3D printer

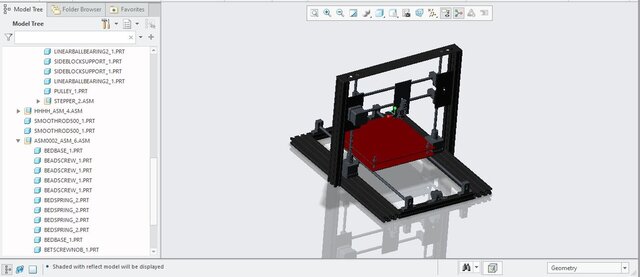

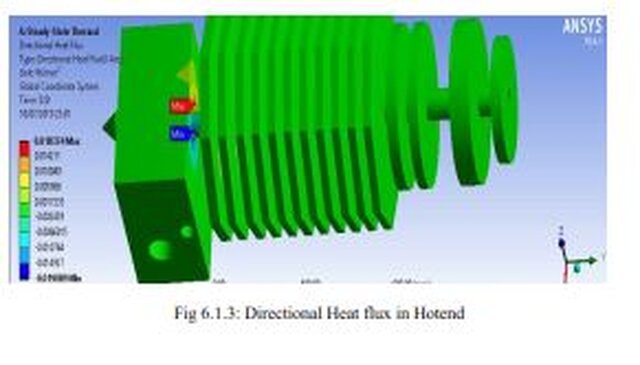

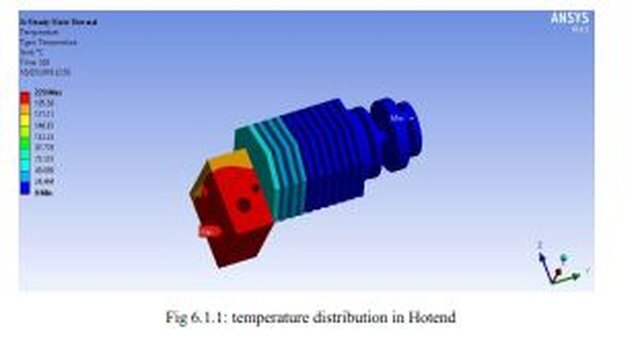

I designed and developed a complete 3D printer assembly model using CAD software, focusing on the structural frame, motion system, and extrusion mechanism. The design includes key components such as the aluminum extrusion frame, linear motion guides, stepper motor-driven axes, build platform, and the hotend extrusion system responsible for filament melting and deposition. In addition to the mechanical design, I conducted a Finite Element Analysis (FEA) on the hotend extruder to evaluate its thermal behavior during operation. The analysis focused on determining the temperature distribution and heat flux direction within the hotend assembly. This study helped identify how heat transfers from the heating cartridge to the nozzle and surrounding components, ensuring proper filament melting while minimizing heat transfer to undesired areas such as the cold end. The simulation involved defining appropriate material properties, thermal boundary conditions, and heat sources corresponding to the heating element. Post-processing of the results allowed visualization of the temperature profile, thermal gradients, and heat flow paths, which are critical for improving thermal efficiency and preventing issues such as heat creep. The results provided valuable insights for optimizing the thermal management and performance of the 3D printer's extrusion system.
