Cylinder Engine 3D CAD Design & Mechanical Kinematic Assembly

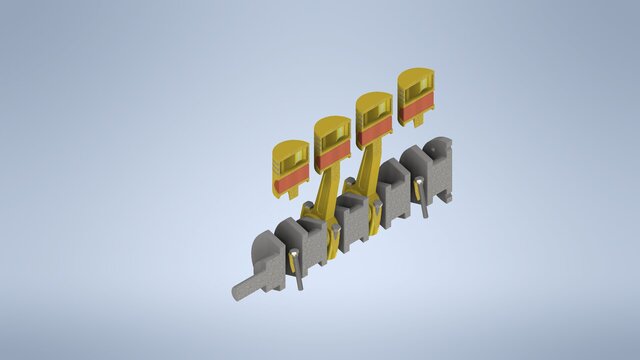

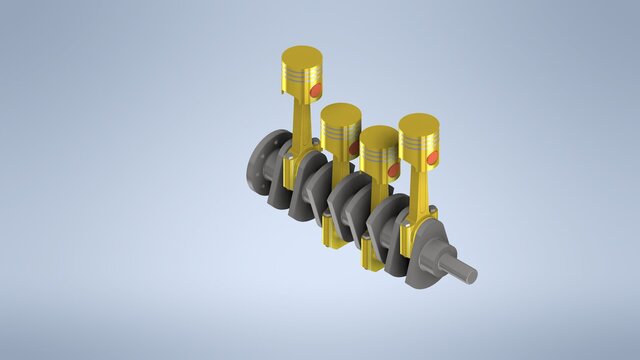

Designed and modeled a complete 4-cylinder internal combustion engine assembly in Autodesk Inventor. Performed precise assembly constraints for pistons, connecting rods, gudgeon pins, and crankshaft to model realistic mechanical motion and stroke timing. Implemented cross-sectional analysis (Half-Section View) to verify clearance tolerances and zero component interference during 360-degree rotation. Delivered high-resolution render views and technical CAD model documentation suitable for manufacturing and functional kinematic simulation.
