Custom Server Rack to DIN Rail and Panel Mount Component brackets

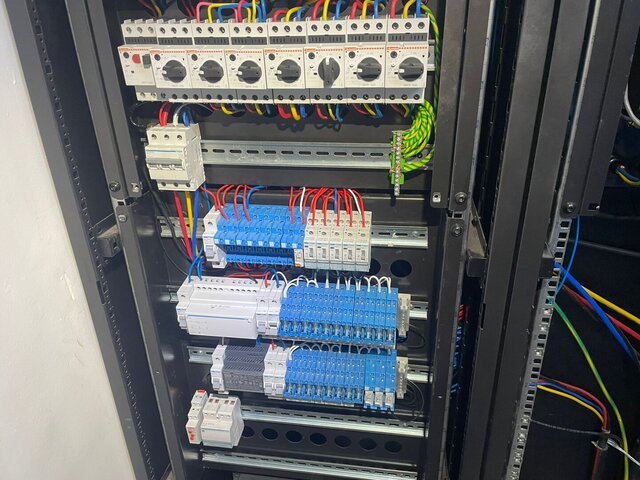

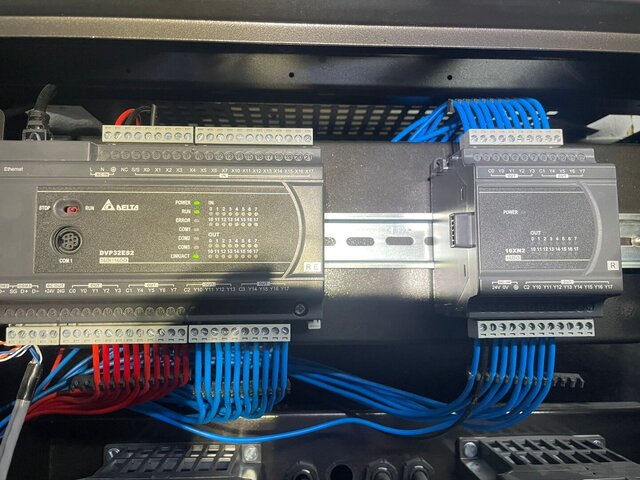

Commissioned to design a range of brackets for the mounting of DIN Rail equipment and breakers as well as some panel mount VFD components for a RO Plant. These brackets were designed in Autodesk Inventor using the Sheet Metal Environment, the flat patterns and bend drawings were then sent to a fabricator to produce and powder coat the brackets.
