Custom Parametric Coil Spring CAD Design for Mechanical Engineering

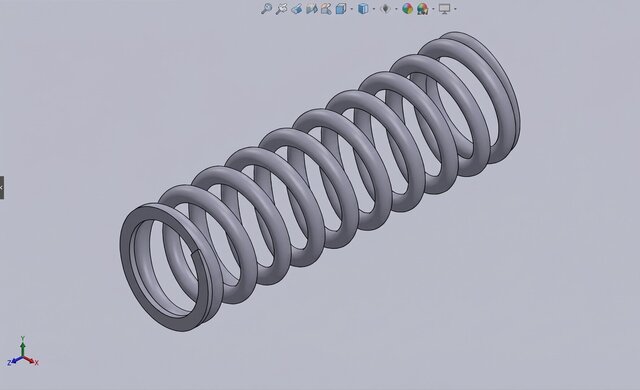

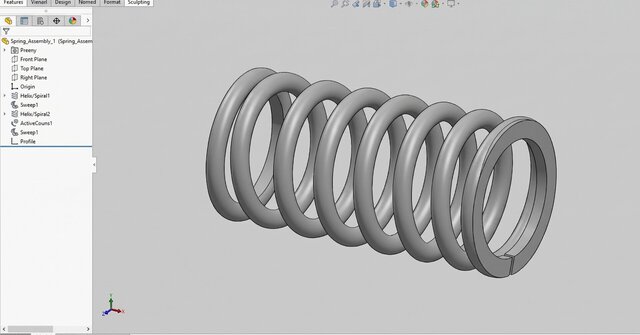

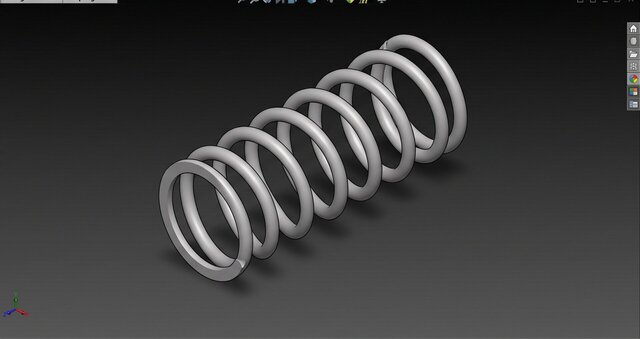

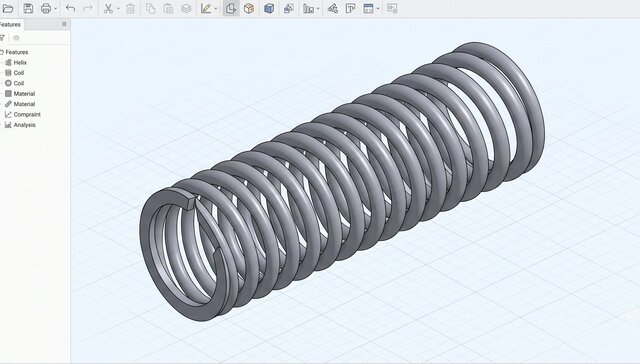

Project Title: Custom Parametric Coil Spring CAD Design for Mechanical Engineering Description: Overview This project features a highly accurate, fully parametric 3D CAD model of a mechanical compression coil spring. Designed with precision engineering in mind, this model is built to be seamlessly integrated into larger mechanical assemblies, suspension systems, or industrial machinery designs. Whether you need a standalone component for visual rendering or a dimensionally accurate part for finite element analysis (FEA) and manufacturing, this model demonstrates a high standard of mechanical drafting and 3D modeling. Key Features & Design Capabilities The model is built to be fully adaptable. As a parametric design, the core dimensions can be easily adjusted to meet specific functional requirements and space constraints. The design accounts for the following critical engineering parameters: A) Variable Length: Configurable for precise Free Length and Solid (fully compressed) Length. B) Optimized Coil Count: Adjustable active and total coil counts, minimized efficiently for specific space constraints. C) Defined Pitch: Accurately modeled distance between each coil to ensure proper load distribution and travel. D) Precise Diameters: Strict adherence to required Outer Diameter (OD) and Inner Diameter (ID) tolerances for proper housing and clearance. E) Wire Specification: Adjustable rod/wire diameter to accommodate various material stress requirements. Technical Workflow Modeled with strict attention to mechanical accuracy, this asset is optimized for engineering workflows utilizing industry-standard software like SolidWorks and AutoCAD. The geometry is clean, properly constrained, and ready for technical drawing extraction, 3D printing preparation, or high-fidelity technical rendering.
