Custom Kitchen Manufacturing Drawings

Report

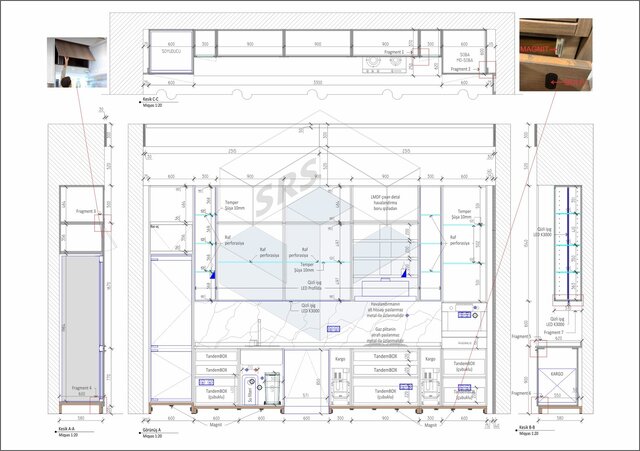

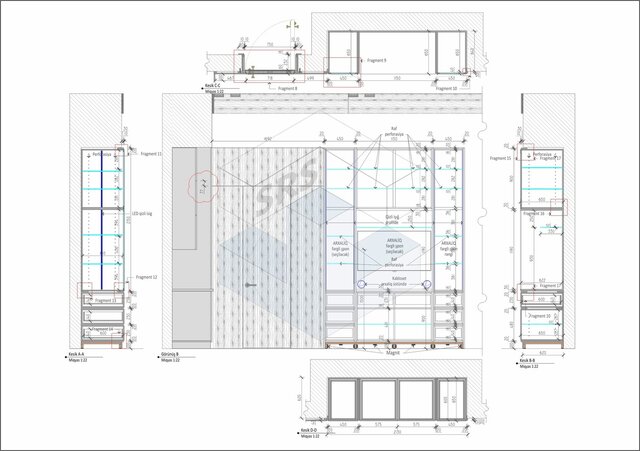

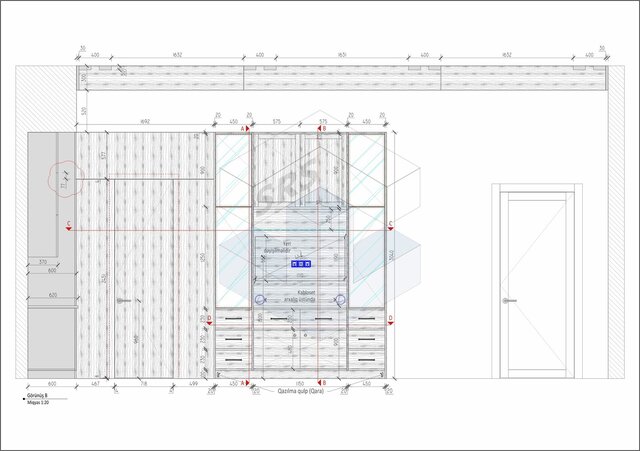

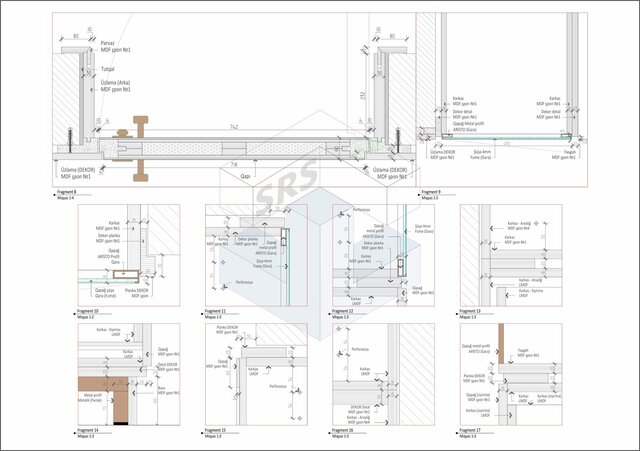

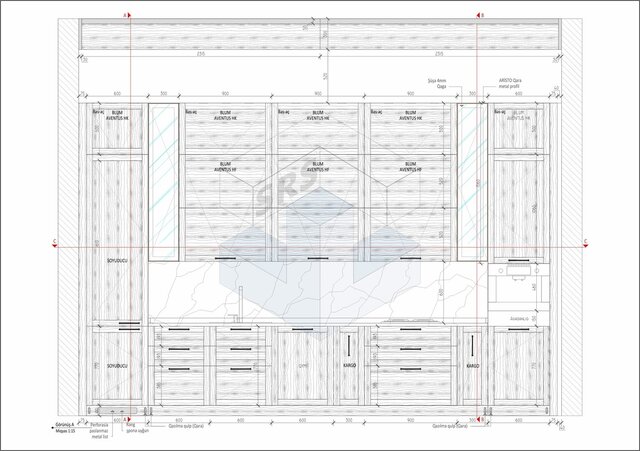

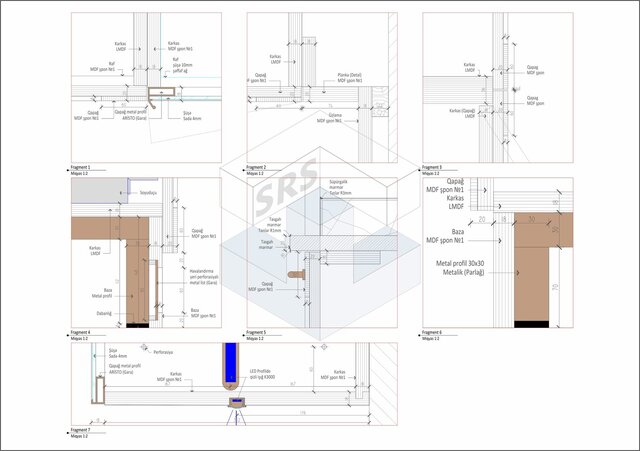

Detailed AutoCAD technical and manufacturing drawings for a custom kitchen project. Includes cabinet elevations, sections, internal layouts, dimensions, construction details, material specifications, hardware positions, appliance integration, assembly solutions and installation details. Prepared as practical production documentation for furniture manufacturing and workshop use.
Published
in Fabrication Drawings Services AutoCAD Drawing Services Manufacturing Drawings
autocad millwork technical-drawing kitchen-design manufacturing-drawing custom-furniture cabinetry production-drawings kitchen-cabinets custom-kitchen
Rendering Images
