custom elevator design

Report

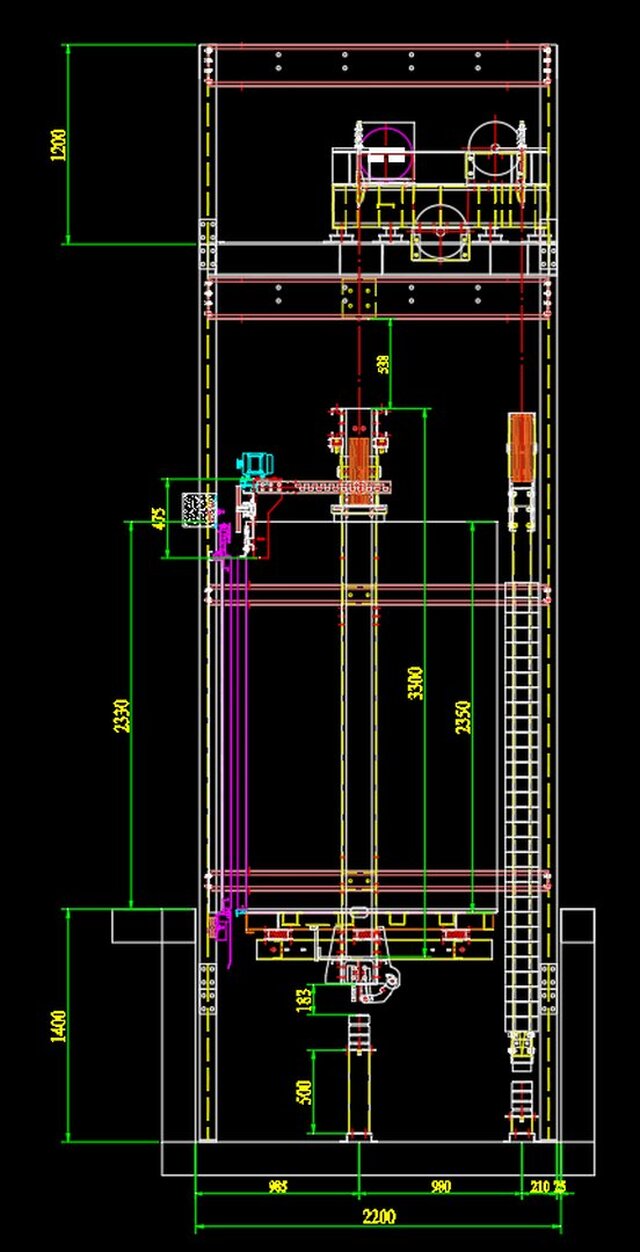

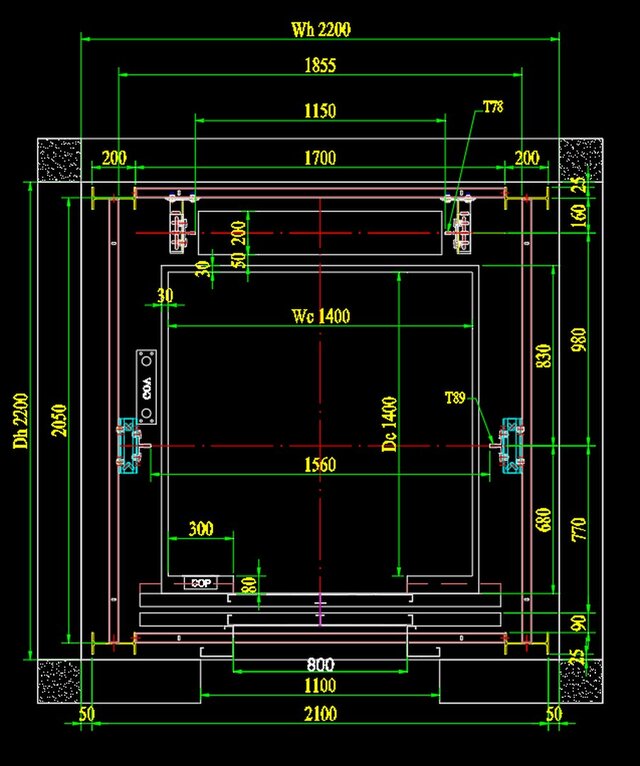

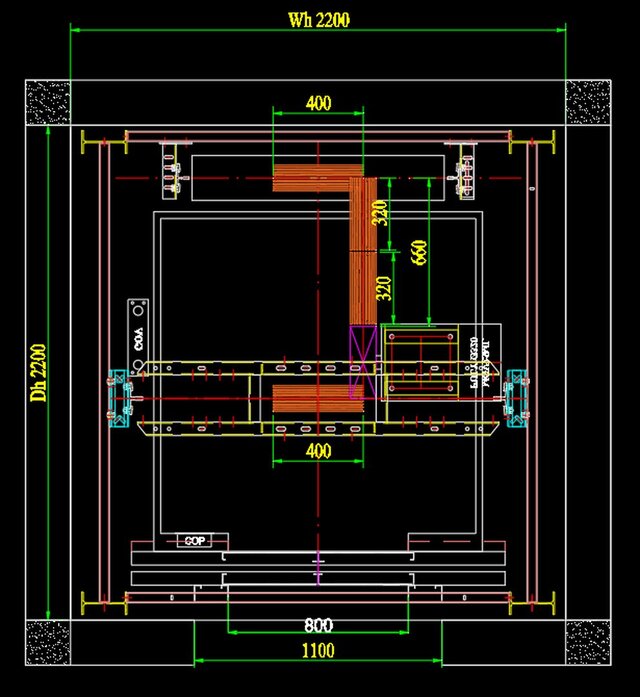

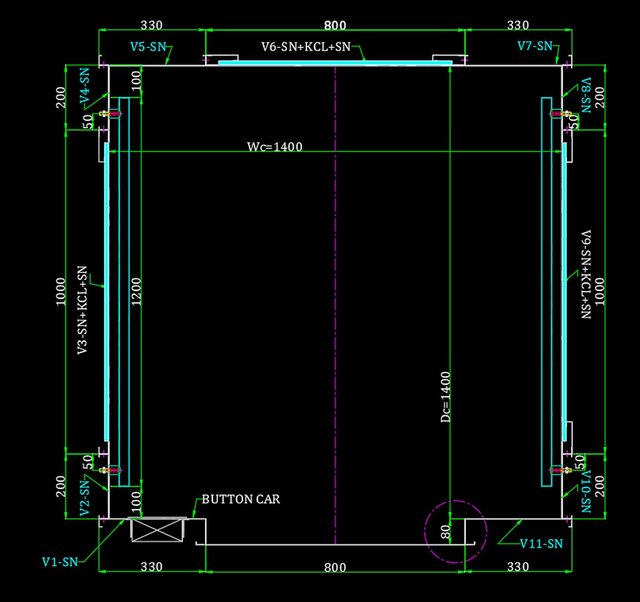

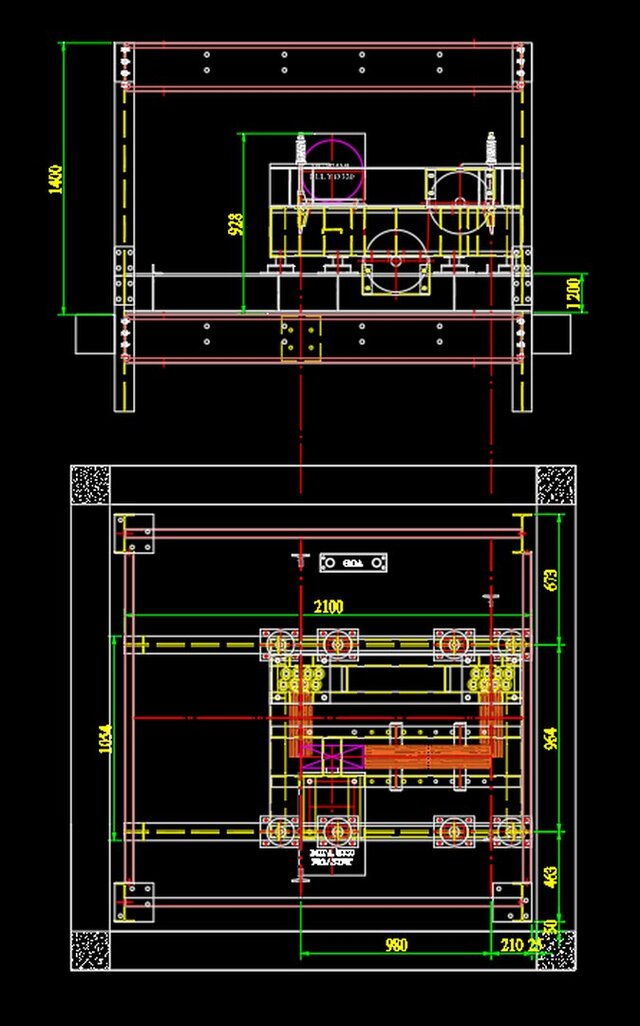

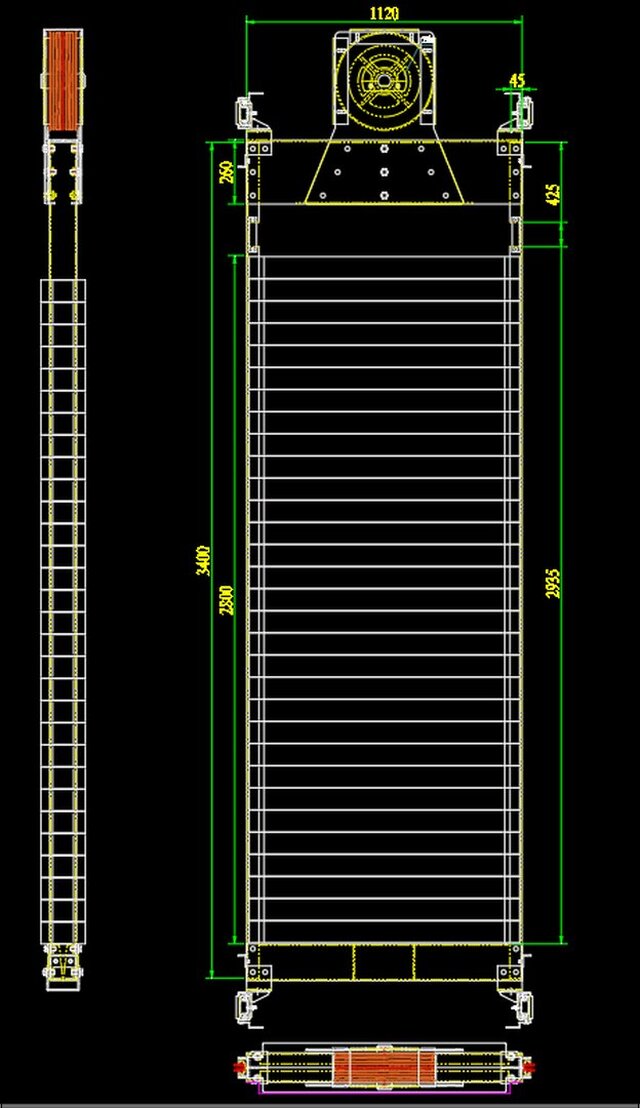

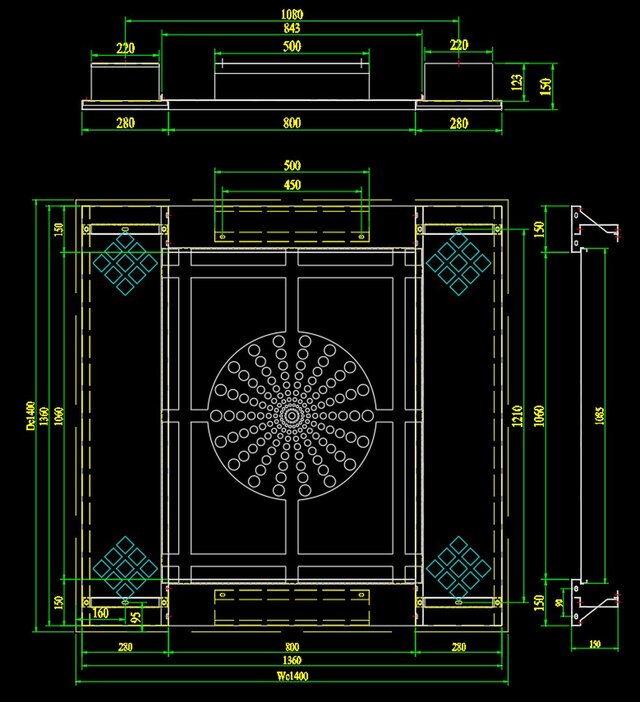

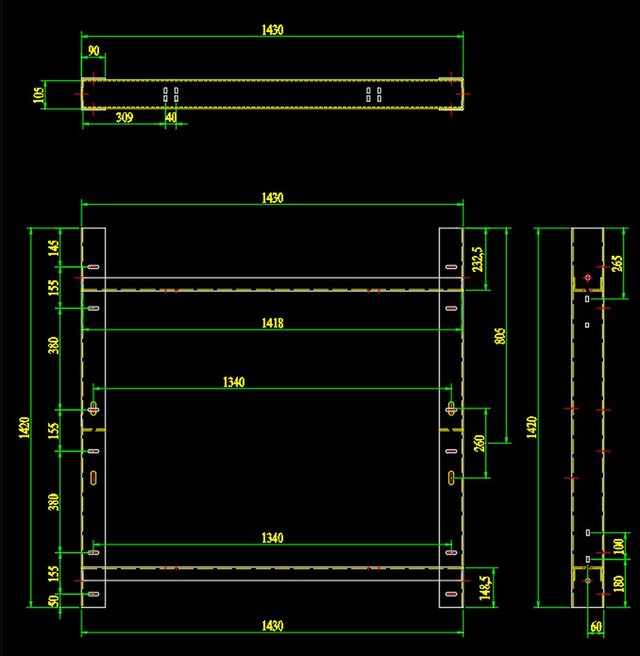

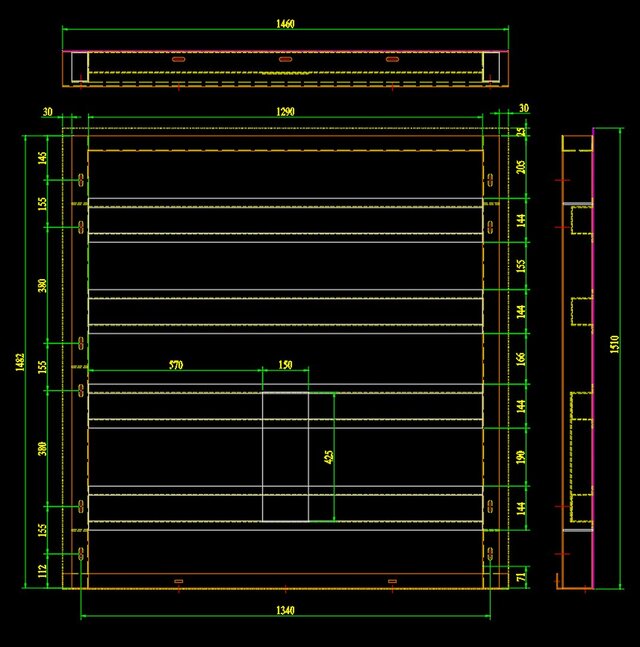

Another custom elevator design completed for a reinforced concrete shaft. Project Specifications Concrete Shaft: 2200 × 2200 mm Cabin Size: 1400 × 1400 mm Center-Opening Door (CO): 800 mm Rear Counterweight Configuration Cabin Guide Rail: T89 Counterweight Guide Rail: T78 Cabin & Counterweight Sheaves: Ø400 mm Traction Machine Deflector Sheave: Ø320 mm Pit Depth: 1400 mm This configuration provides a spacious cabin while maintaining an efficient rear counterweight layout for smooth operation and reliable performance. I specialize in complete elevator mechanical design, including 3D modeling, manufacturing drawings, cabin and door design, counterweight systems, machine layout, and installation drawings for custom elevator projects. If you need a custom elevator solution for your next project, feel free to connect or send me a message. #ElevatorDesign #MechanicalDesign #TractionElevator #LiftEngineering #HomeLift #PassengerElevator #CADDesign #SolidWorks #Engineering #CustomElevator #MachineDesign #ManufacturingDrawings #3DModeling #Counterweight #FreelanceEngineer
