Crude Oil Tank Farm

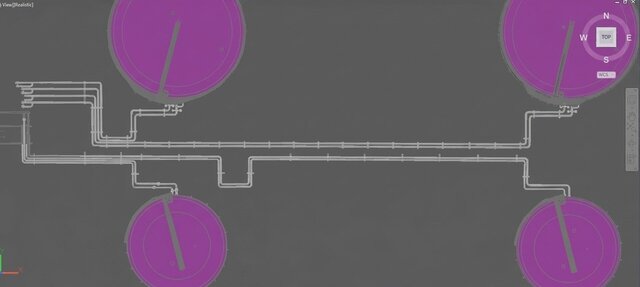

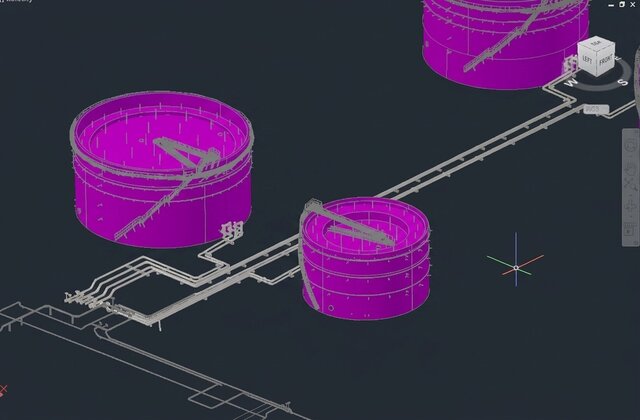

Crude Oil Tank Farm & Interconnecting Piping Layout Design 3D plant layout and interconnecting piping design for a large-scale crude oil storage tank farm developed using AutoCAD Plant 3D. Key Project Highlights: Storage Equipment: Detailed 3D modeling of vertical atmospheric crude oil storage tanks with roof structures, access stairways, and top platforms. Piping System: Routing of suction, discharge, and interconnecting pipe manifolds with proper line spacing, pipe support allocation, and inline components. Valves & Specialty Items: Integrated tool palette specs including gate, globe, check, needle, and pressure relief valves sized to process requirements. Deliverables: Complete 3D model arrangement, ortho views, and isometric-ready spec-driven piping design tailored for EPC industrial standards.
