crank and slotted lever mechanism

Report

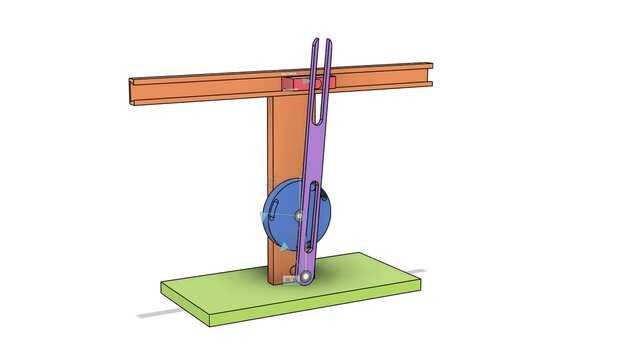

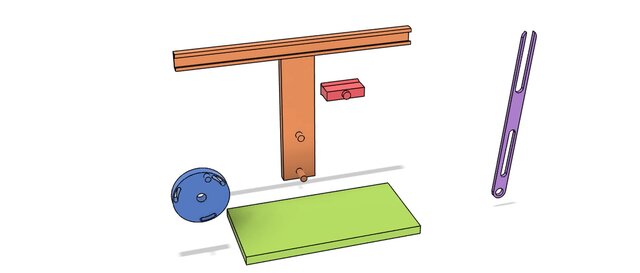

Crank and slotted lever mechanism Components: Base Crank Rocking lever Slider Working: Crank is rotating about its axis with one of its part slides in a slot of a lever which rocks about its axis. A slider is connected to free end of lever which slides along the provided path. Application: Shaper tool Continuous cutting machine
