Conveyor belt with square tube

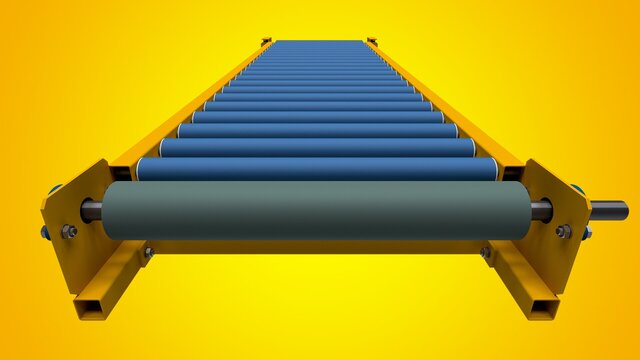

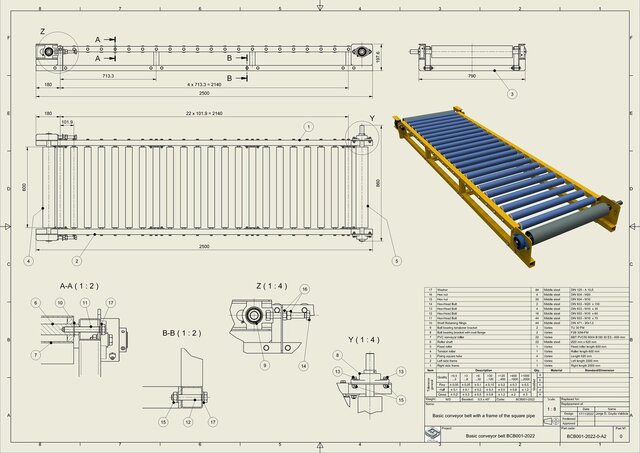

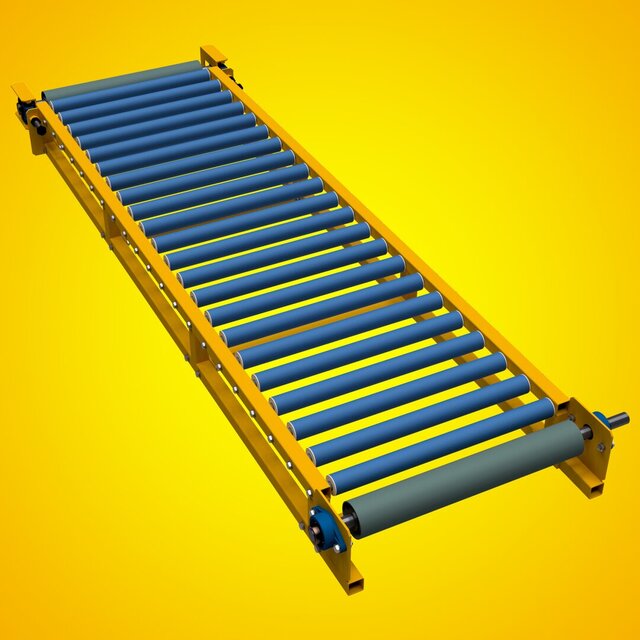

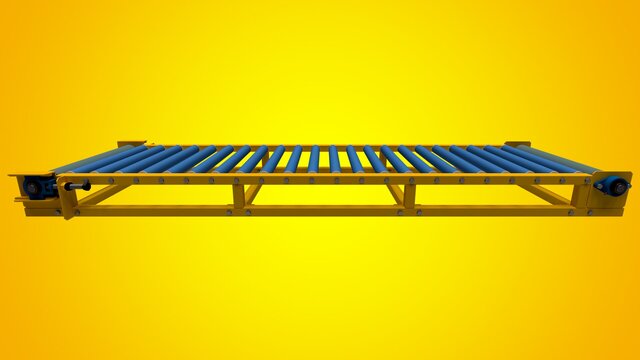

This conveyor belt with square tube frame is a mechanical system for continuous material transportation, developed using the Skeleton Design methodology in Autodesk Inventor. This approach utilizes multiple base sketches distributed across different planes within a master part file, serving as the foundational geometry for all components and sub-assemblies throughout the model. Additionally, iLogic was implemented to generate configurable variables and a dialog box with multiple customization options, allowing rapid adaptation to different specifications. The design features a continuous belt moving over rollers, supported by a robust square tube frame that provides structural stability for various industrial applications including mining, logistics, manufacturing, and agriculture. The parametric workflow ensures design consistency, facilitates modifications, and enables efficient customization through iLogic automation for diverse working conditions and load requirements.
