Compressor Diaphragm – CAD Model

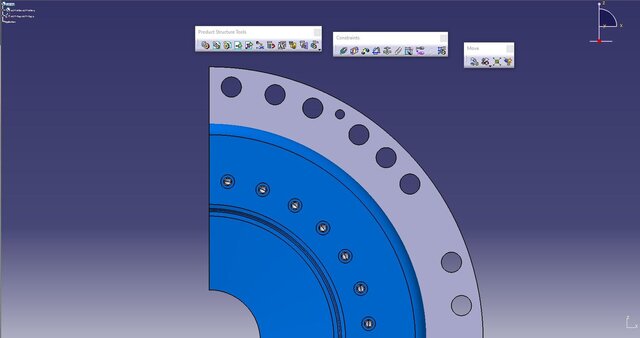

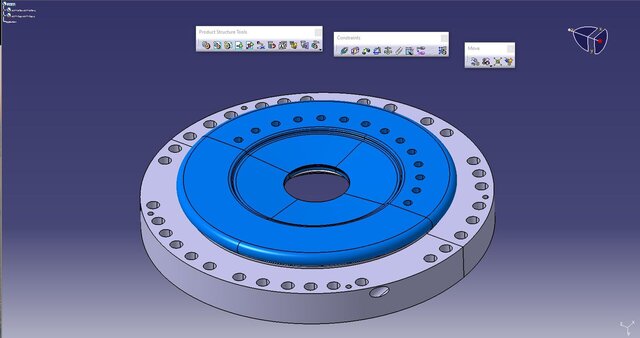

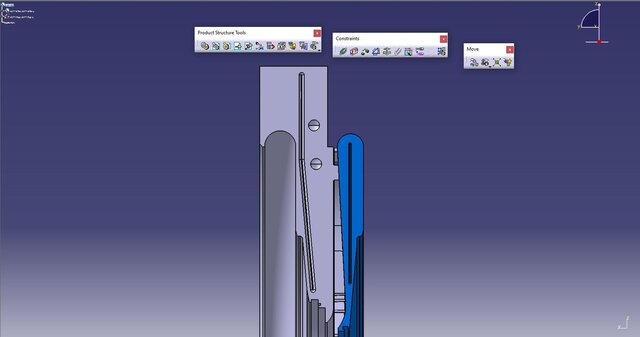

A high-detail CAD model of a compressor diaphragm designed in CATIA. The model represents the casing and spacer structure that supports the stator blades. This diaphragm is an essential part of axial compressors, providing both aerodynamic channeling and mechanical support. The design is suitable for clash detection, finite element analysis (FEA) in Abaqus, and further CFD studies to evaluate flow characteristics.
