Compression, Tension & Torsion Spring Library

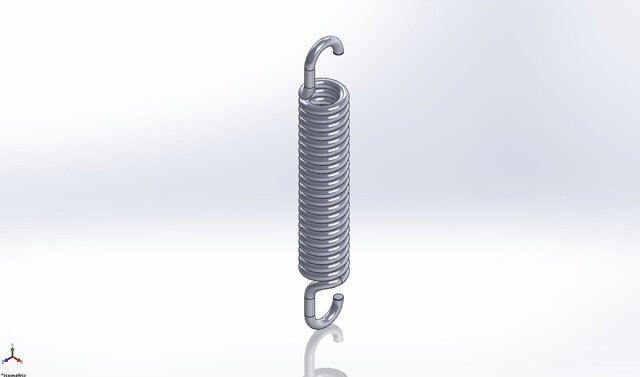

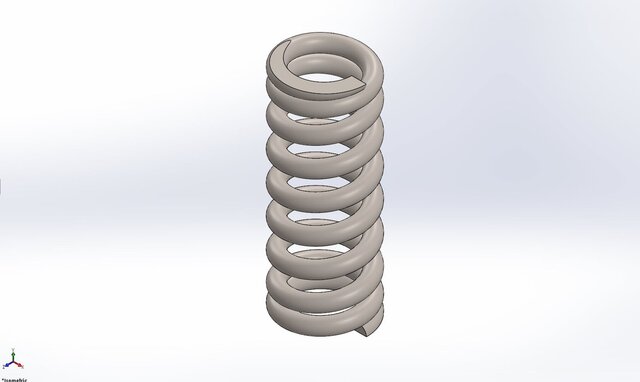

Developed a parametric library of compression, extension, and torsion springs in SolidWorks. Using equations and design automation, each spring type was created as a configurable master model that generates new designs by simply entering key parameters such as wire diameter, outer diameter, pitch, and free length. The project also included standard manufacturing drawings, significantly reducing modeling time and ensuring design consistency.
