Complete Documentation Package — 10HP Submersible Pump Control Panel

Report

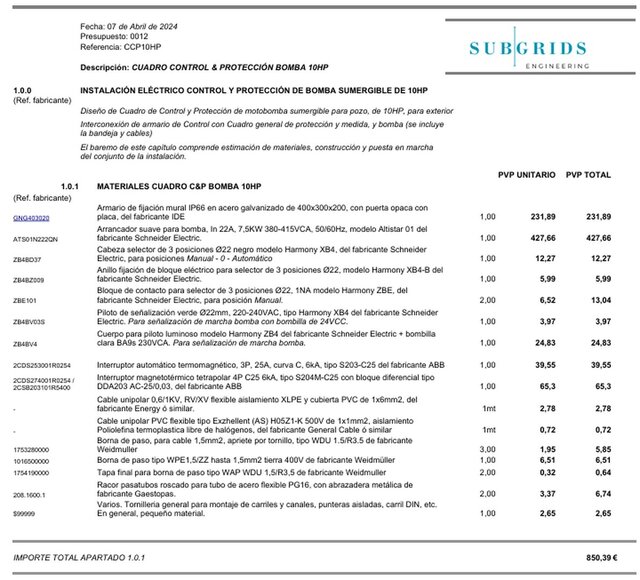

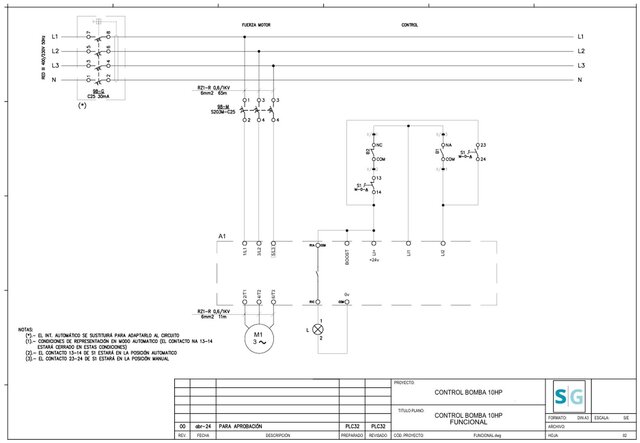

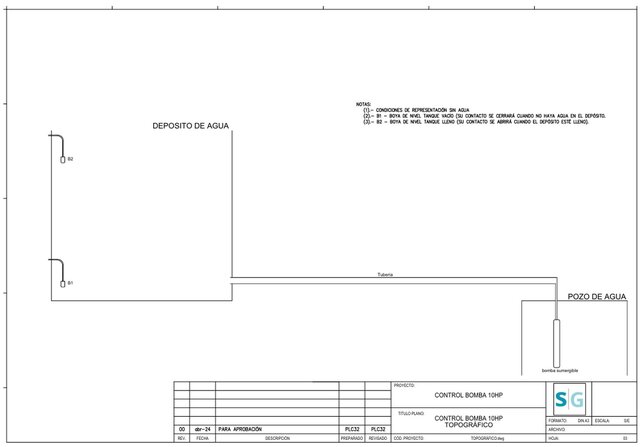

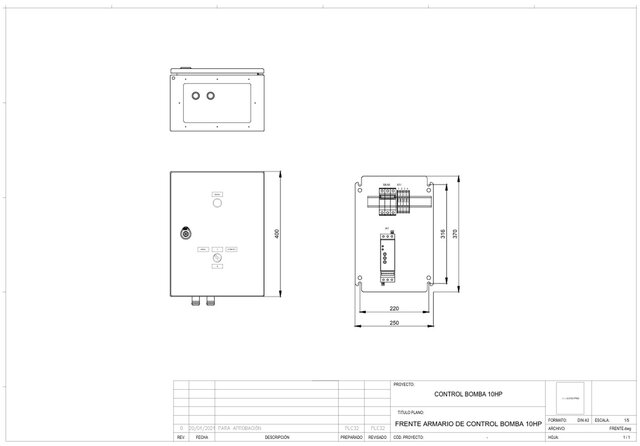

Full documentation package for a 10HP/400V submersible pump control and protection panel: functional schematic (power and control circuits with soft starter, manual/automatic modes and level switches), panel front and internal layout with dimensions, site topographic diagram (well, tank and level sensors), cover sheet and itemized bill of materials with real component references (ABB, Schneider Electric, Weidmüller). The kind of workshop-ready package I deliver for small industrial installations — drawn in AutoCAD, DIN A3 title blocks, IEC symbology.
Published
in Electrical Engineering 2D CAD Design Services Electrical Schematic Drawing Services
autocad control-panel electrical-schematic motor-control iec pump-control panel-layout bill-of-material
