Compact Milk Production Line

Report

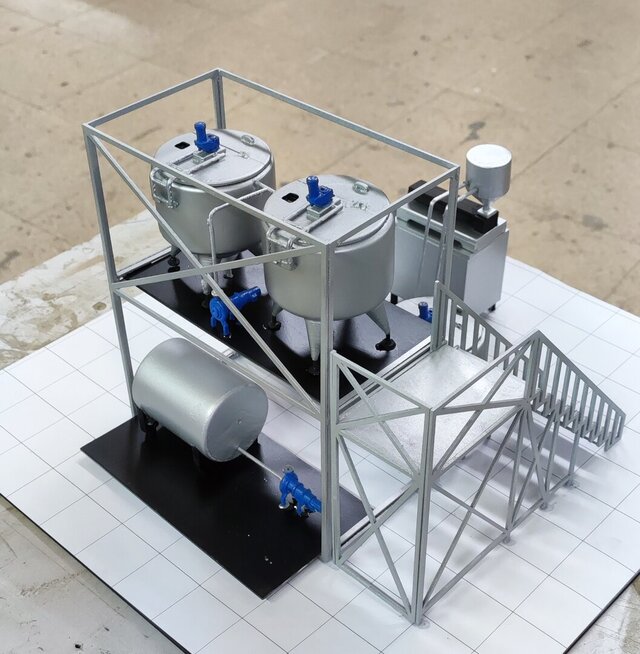

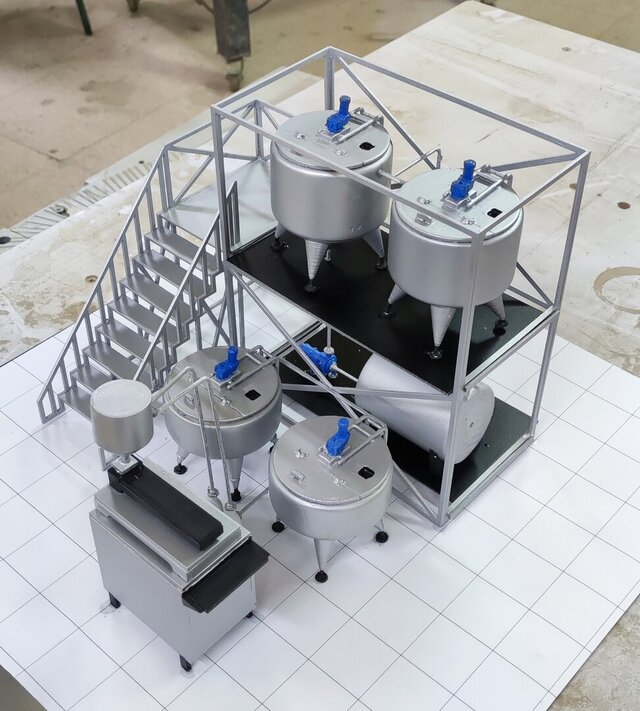

Designed a compact milk-processing production line in SOLIDWORKS using parametric modeling, assemblies, weldments, tanks, structural frames, piping, access platforms, and processing equipment. Created a 1:10 physical scale model using turned parts and 3D printing to verify equipment placement, component interfaces, and overall assembly relationships.
Published
in Product Design 3D Modeling Mechanical Design Services
solidworks piping 3d-printing 3d-modeling rapid-prototyping mechanical-design weldments structural-design design-for-manufacturing large-assembly

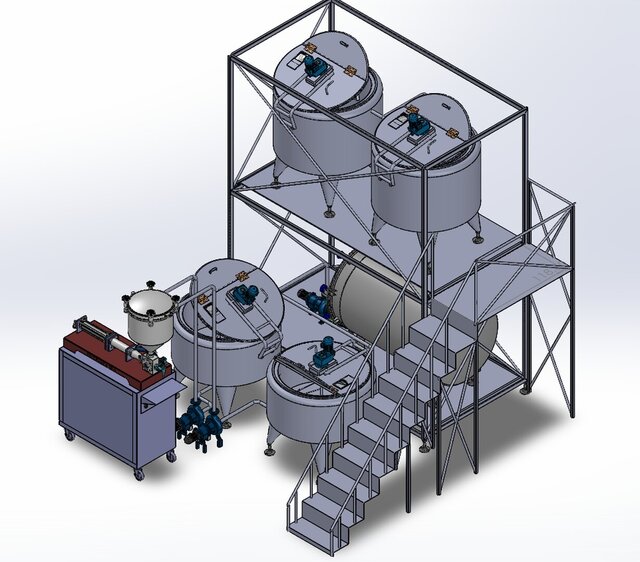

Rendering Images
