compact elevator with this door configuration
It's been a long time since a client requested an elevator with a 600 mm center-opening door (CO600). Designing a compact elevator with this door configuration is always an interesting engineering challenge, where every millimeter of space matters.
Despite the limited shaft dimensions, the layout was carefully optimized to provide a practical cabin size while ensuring smooth operation and reliable performance.
Project Specifications

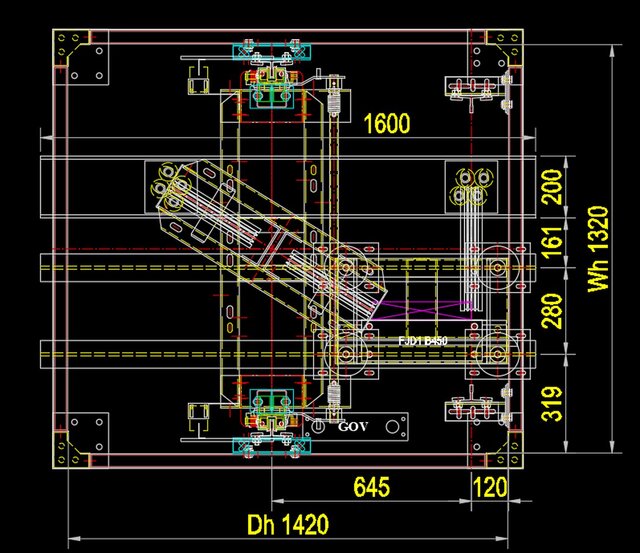

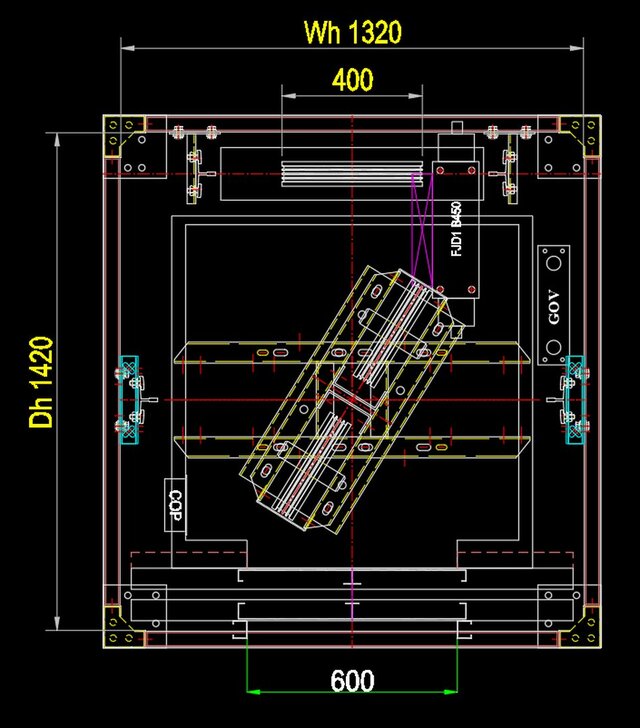

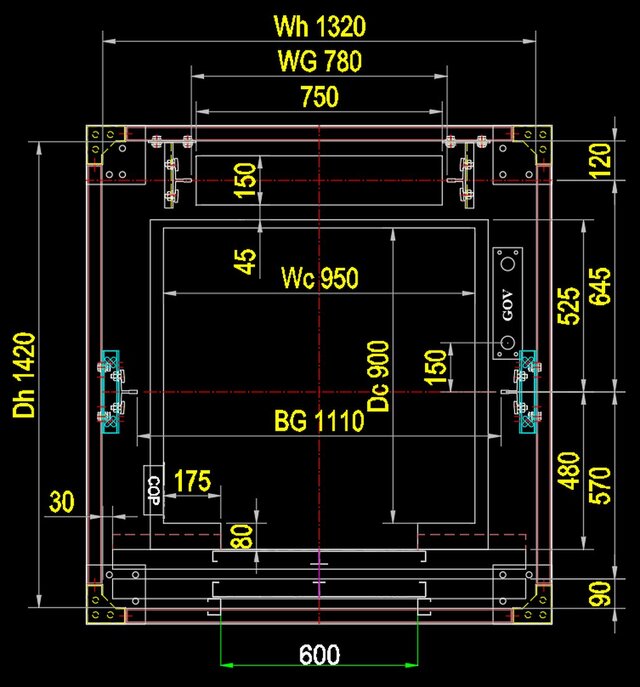

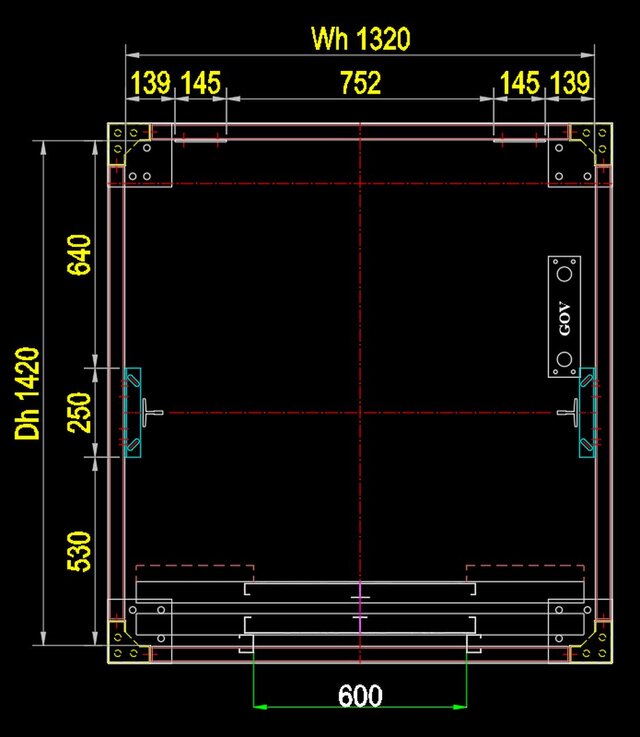

+ Steel Shaft: 1320 × 1420 mm

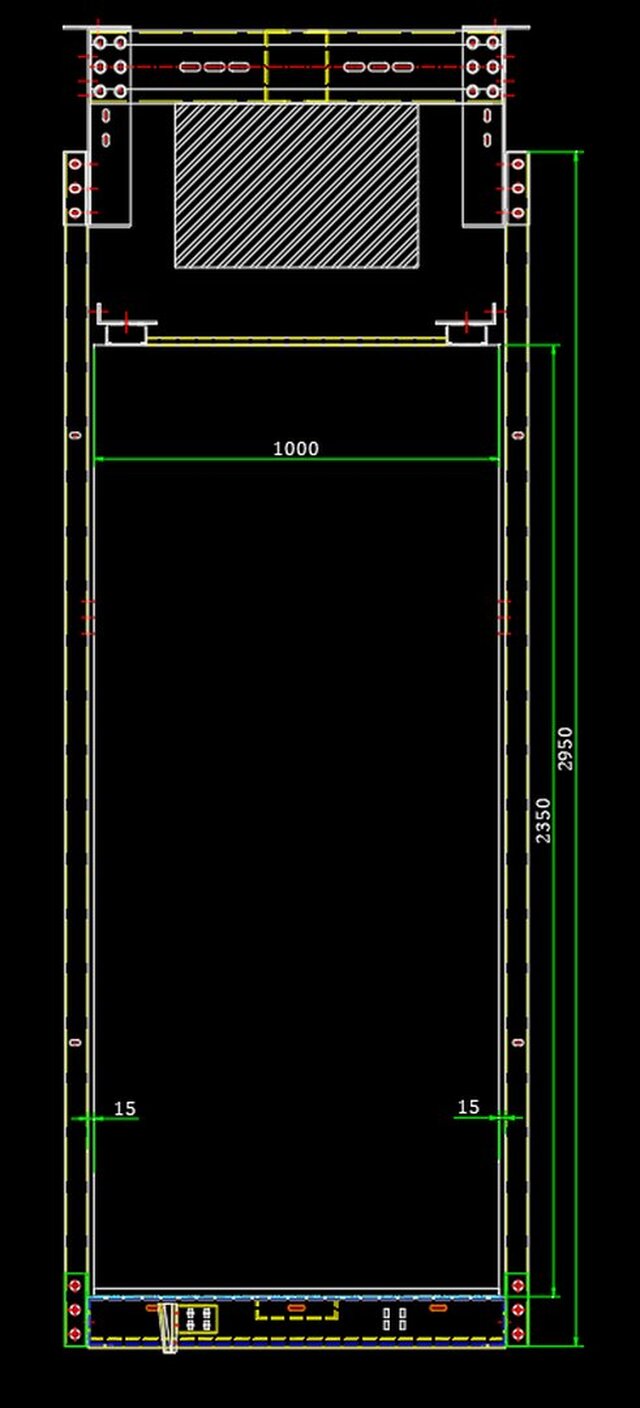

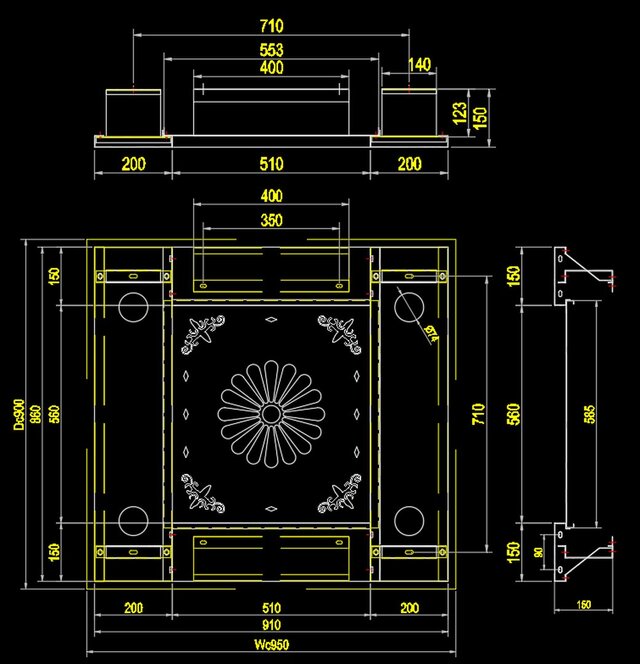

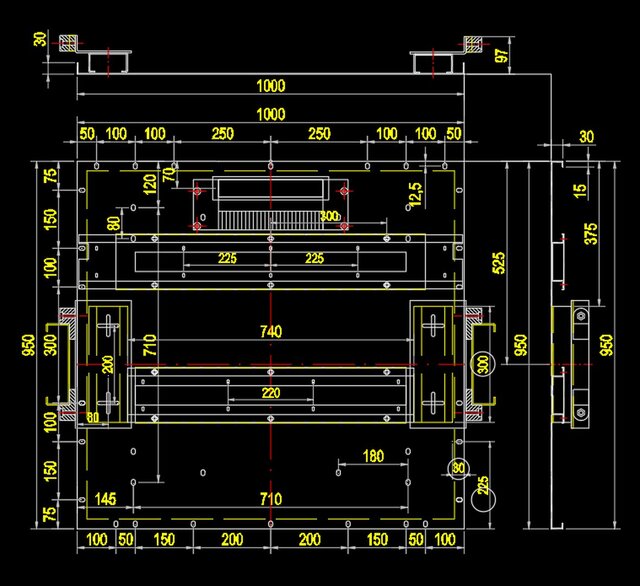

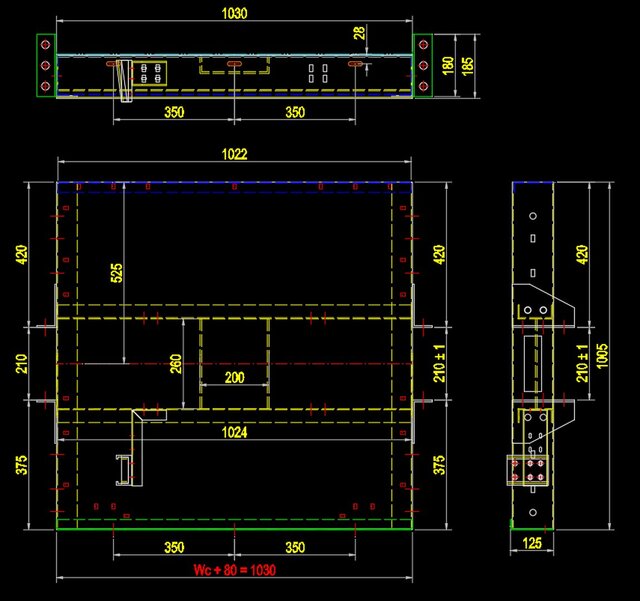

+ Cabin Size: 900 × 950 mm
+ Capacity: 450 kg

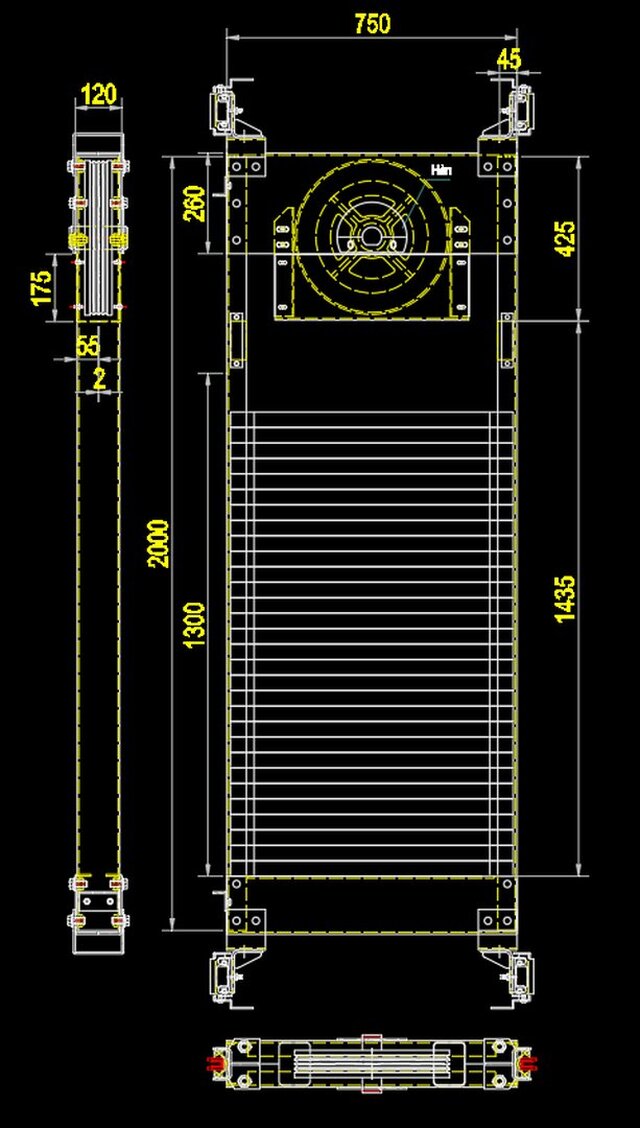

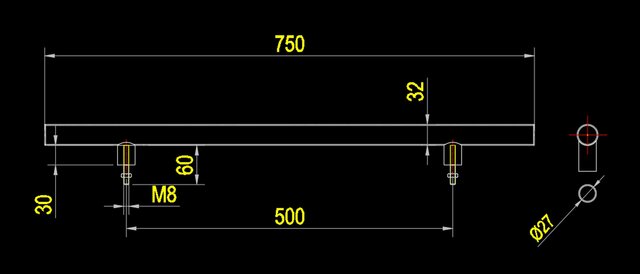

+ Center-Opening Door (CO): 600 mm
+ Rear Counterweight Configuration
Drive System

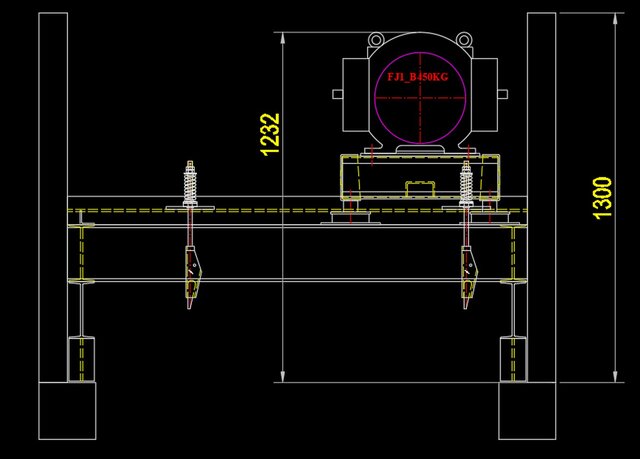

+ FJD1-B450 Traction Machine – 3.3 kW
+ Drive Sheave: Ø320 mm

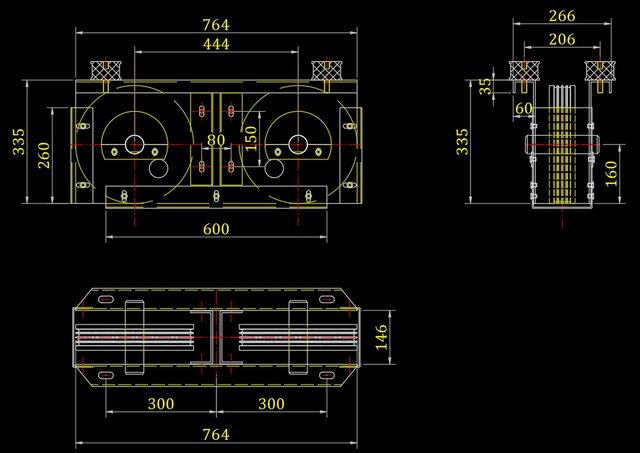

+ 4 × Ø8 mm Steel Wire Ropes (12 mm pitch)

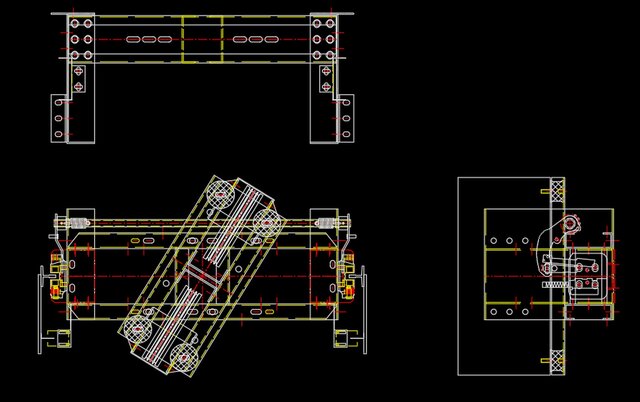

+ Upper-mounted safety gear

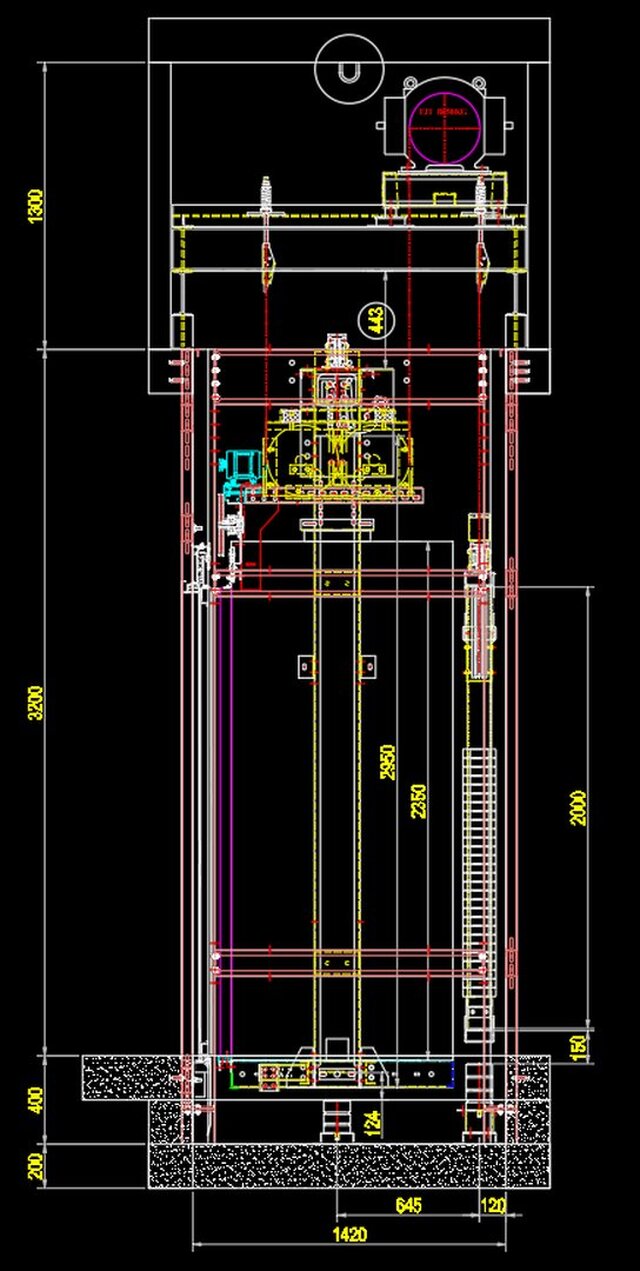

Installation Dimensions
+ Pit Depth: 400 mm
+ Overhead (OH): 3200 + 1300 mm
Compact elevator projects require more than simply fitting components into a small space. They demand careful planning of the traction system, counterweight layout, maintenance access, and manufacturing feasibility to achieve a safe and reliable design.
I enjoy solving these kinds of engineering challenges and transforming space constraints into practical elevator solutions.
