Combo Rack

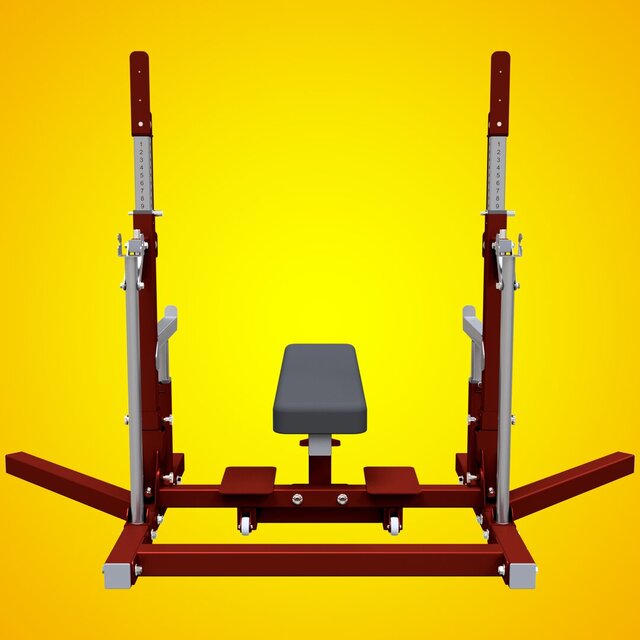

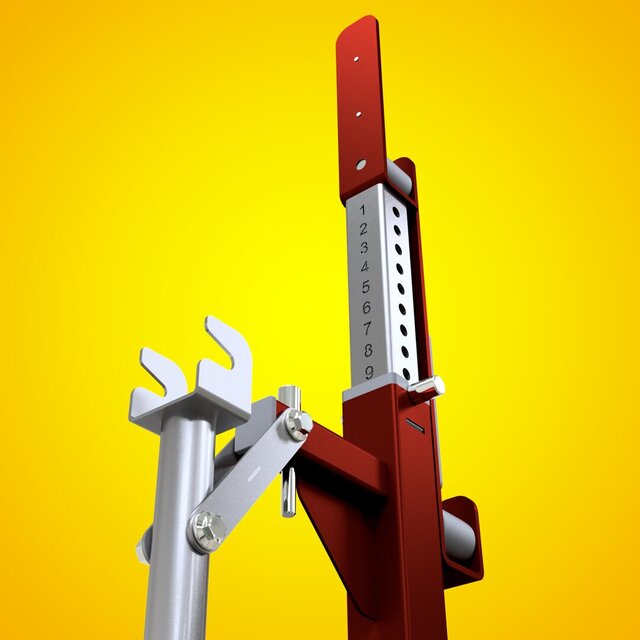

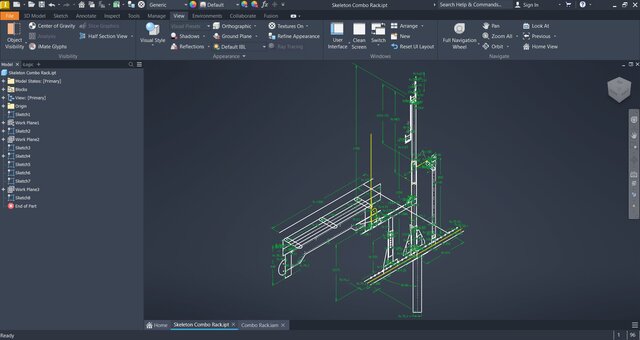

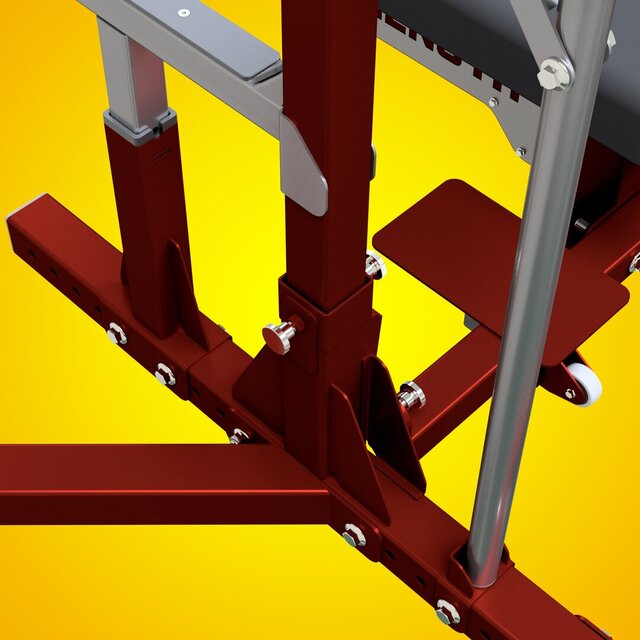

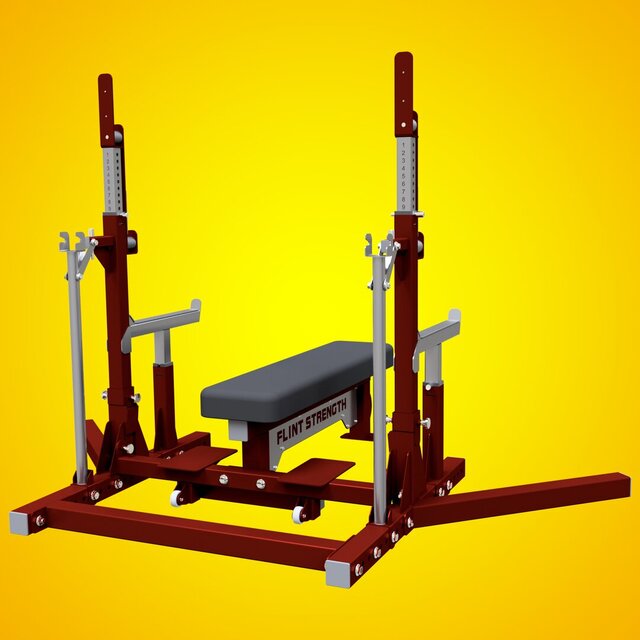

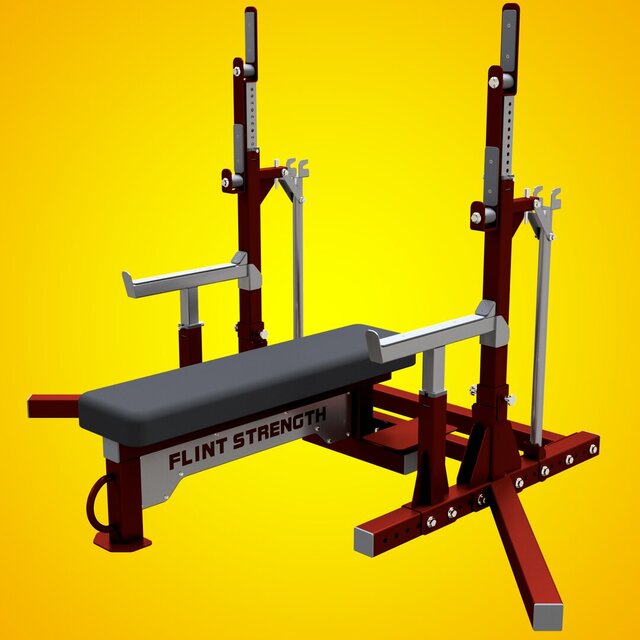

The Combo Rack is a versatile gym equipment combining a squat rack with an integrated weightlifting bench, developed using the Skeleton Design methodology in Autodesk Inventor. This approach utilizes multiple base sketches distributed across different planes within a master part file, serving as the foundational geometry for all components and sub-assemblies throughout the model. The design features adjustable upright posts with safety catches, reinforced frame construction, and professional branding elements. The parametric workflow ensures design consistency, facilitates modifications, and maintains precise relationships between all structural elements. This comprehensive solution provides an efficient and safe space for various strength training exercises including squats, bench presses, and overhead movements. Ideal for weightlifting enthusiasts and strength training facilities, the Combo Rack delivers versatility and stability in a single integrated unit.
