CNC Machined Aluminum Fixture Plate | CAD, Drawing & Production

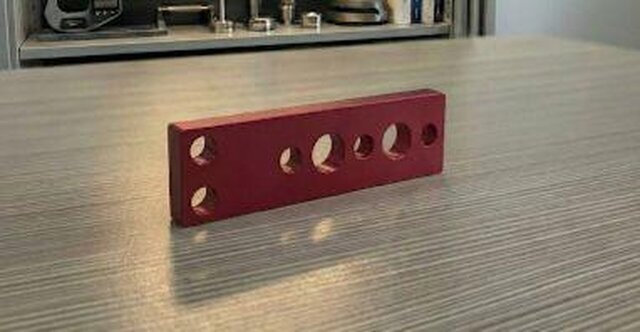

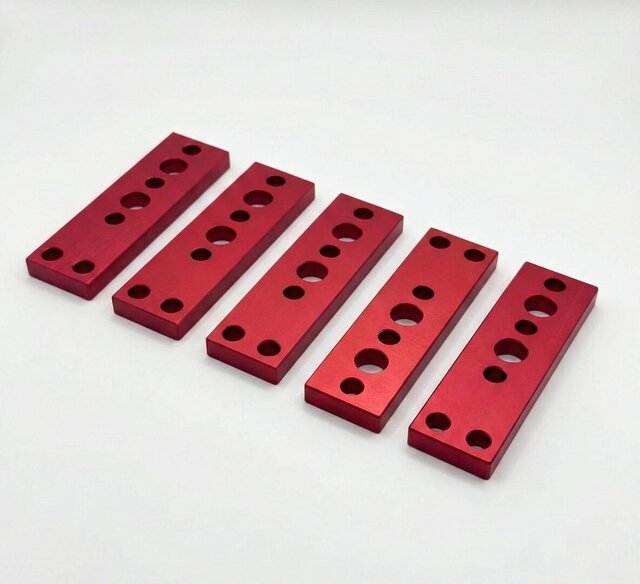

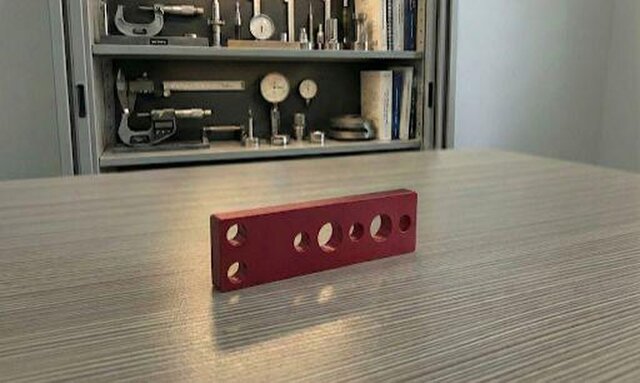

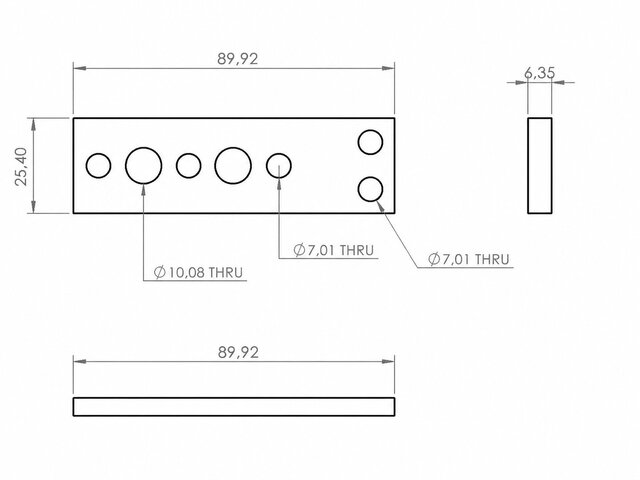

I designed and manufactured a custom aluminum fixture plate based on precise technical requirements. The project included 2D technical drawing preparation, hole layout planning, CNC programming, machining, drilling, and finishing. The part was produced from aluminum and included multiple through-holes with different diameters, accurate spacing, and a clean anodized surface finish. I handled both the CAD/CAM preparation and the physical production process, ensuring dimensional accuracy and a professional final result.
