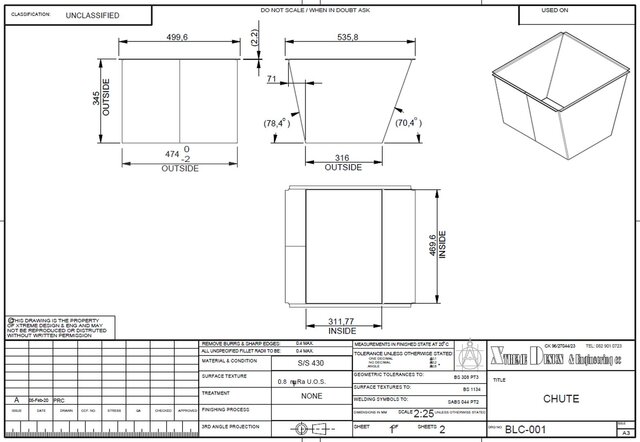

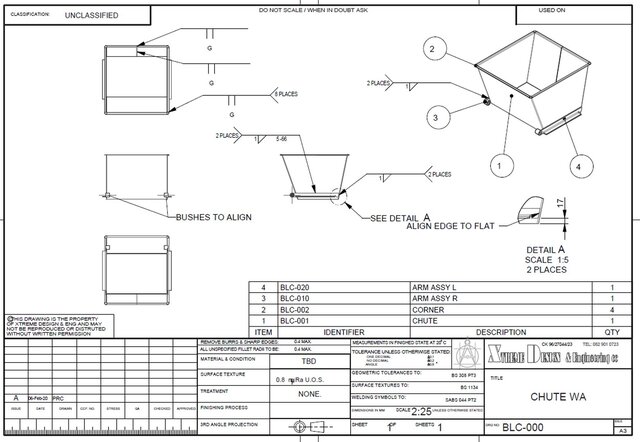

Sheet Metal Chute Design This is a custom sheet metal chute designed in Creo Parametric, incorporating precise cutouts, bends, and optimized flow geometry. Applied parametric rules to allow quick size and thickness adjustments while ensuring manufacturability. Leveraged fabrication knowledge to minimize material waste and deliver a cost-efficient, production-ready design. Full set of DXF produced.
