Chain-Driven Industrial Roller Machine Assembly

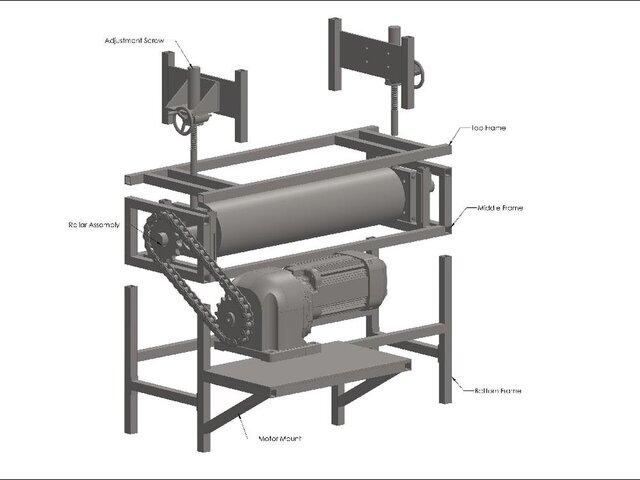

Designed a chain-driven industrial roller machine as a complete working assembly. The system includes a welded support frame, roller mechanism, motor mounting, chain-and-sprocket transmission, and adjustable upper supports. Developed the SolidWorks assembly, resolved component interfaces and service access, and prepared an exploded view for fabrication, assembly, and maintenance.
