Cast Iron Robotic Transfer Stamping Die | Automotive Tooling | Full UG NX Design

Report
This cast iron robotic transfer stamping die delivers a production-ready automotive tooling solution, fully engineered in UG NX for high-volume automotive sheet metal stamping on tandem press lines. This transfer die design integrates multiple stamping stations with automated robotic part transfer, combining drawing, trimming, piercing and sizing operations into a fully automated production flow.
Published
in Automotive Design CAD Design 3D Design Services
auto-cad stamping-die-design nx-siemens tool-and-die-making automotive-3d-model robotic-transfer-die cast-iron-die

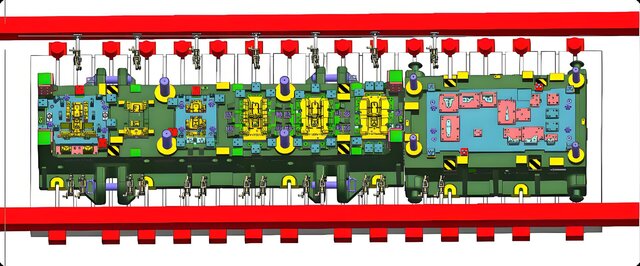

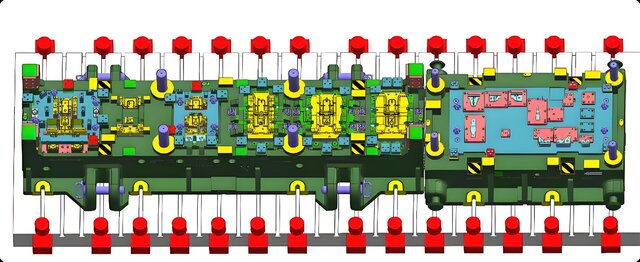

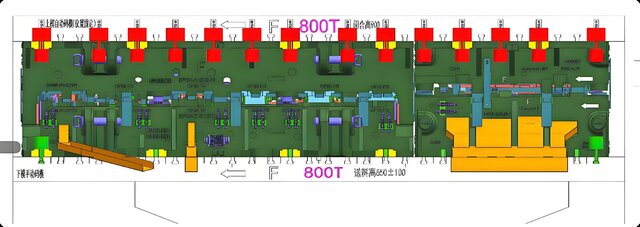

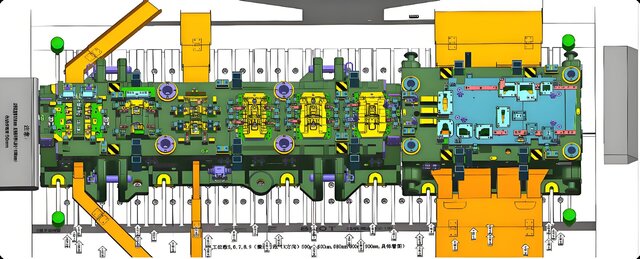

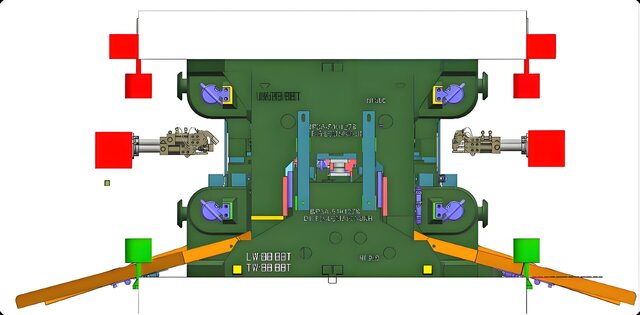

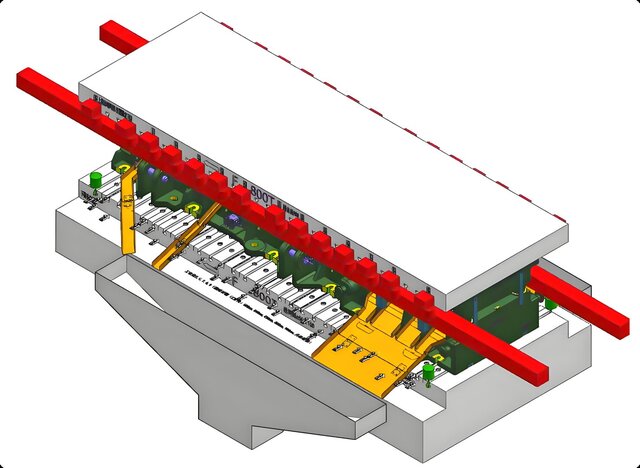

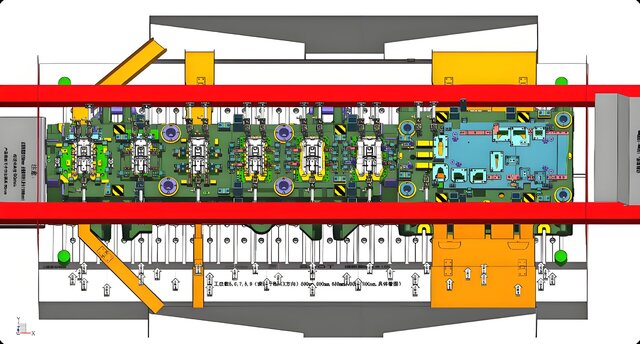

Rendering Images
