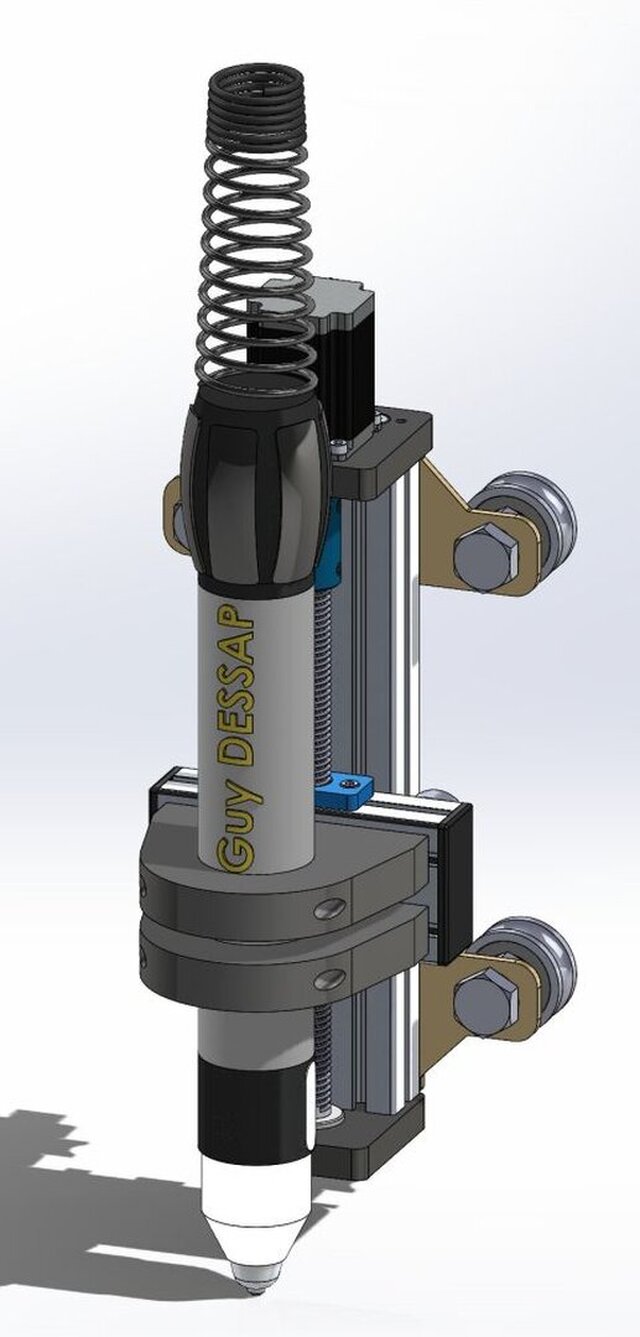

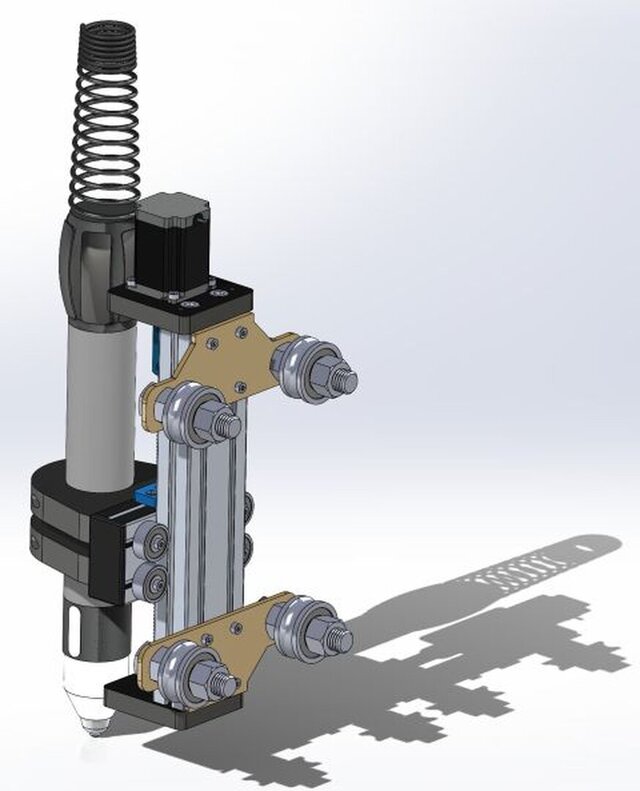

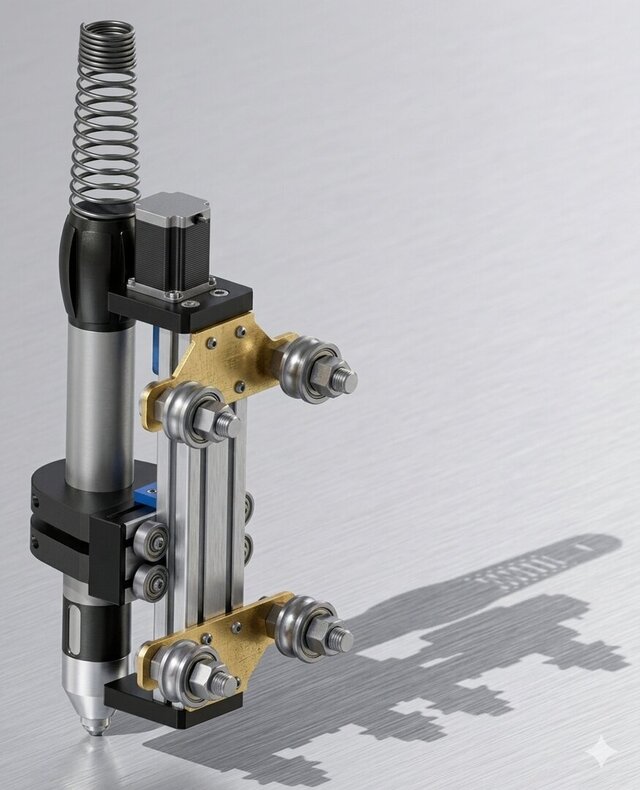

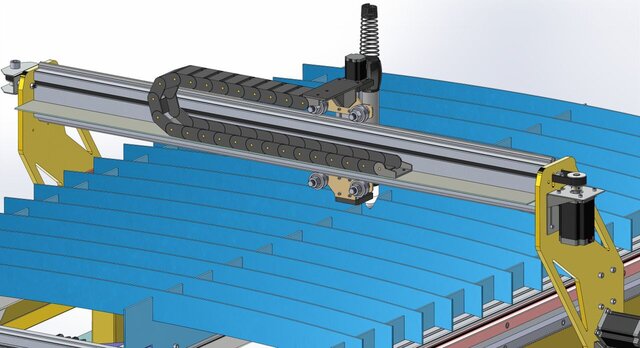

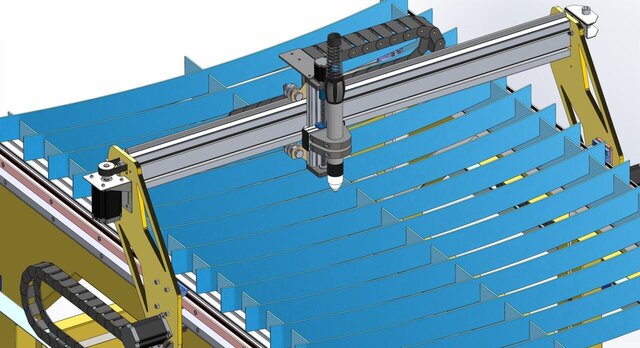

CAD Design: 3-Axis CNC Plasma Cutting Table

This industrial project involves the mechanical design and complete 3D modeling of a 3-axis (X, Y, Z) Computer Numerical Control (CNC) plasma cutting table. The main objective was to develop a robust, high-performance, and production-ready machine capable of cutting heavy-gauge industrial sheet metal with high geometric precision, while withstanding the severe thermal and vibratory constraints of the plasma cutting process.
