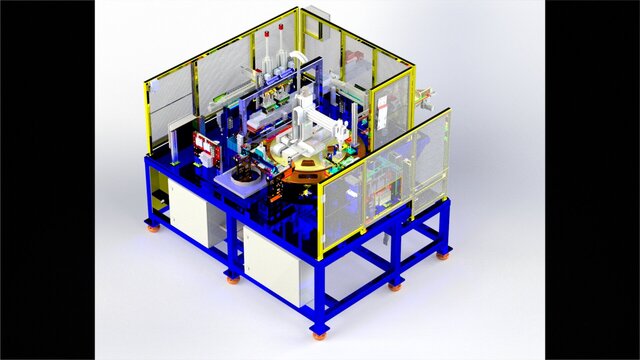

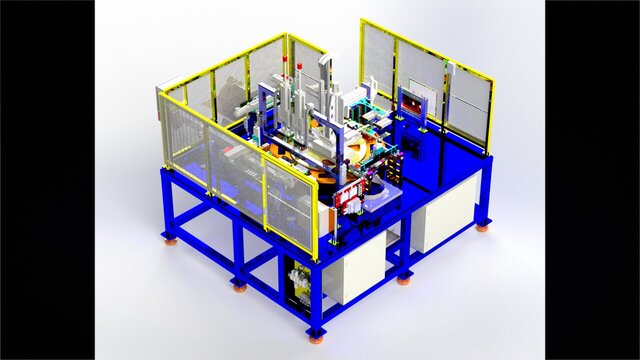

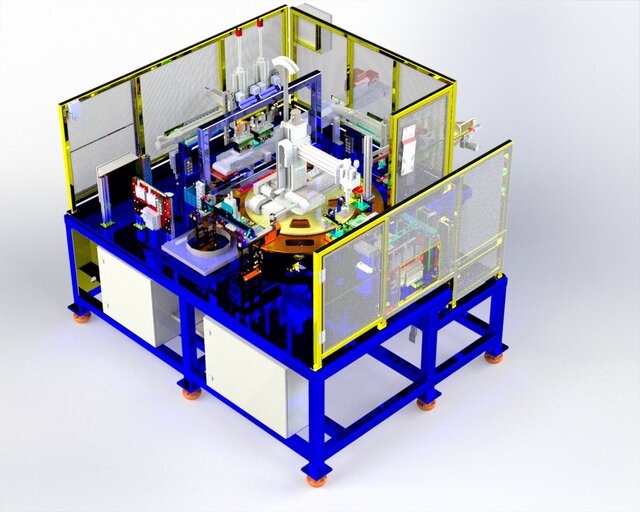

Bracket Assembly Machine

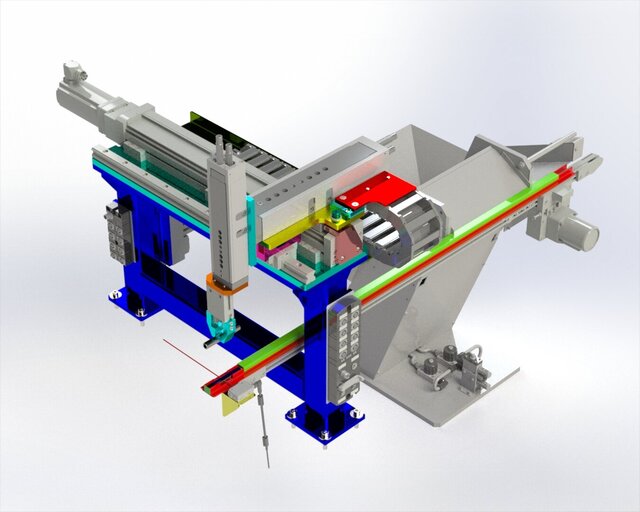

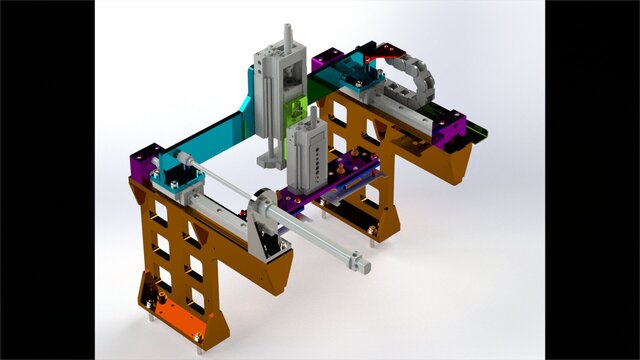

🔹 Compact & Portable Design – A standalone machine with a 2-hour replenishment cycle, featuring a fail-safe Poka-Yoke system to seamlessly handle two variants. 🔸 High-Speed Automation – A precision-engineered 4-position rotary indexer ensures smooth and efficient operation. 🟢 Smart Pin Feeding – A step feeder delivers consistent and reliable pin supply with minimal downtime. 🔵 Advanced 3-Axis Gantry – A servo & pneumatic-driven gantry for high-precision pin pick-and-place, optimizing accuracy and speed. 🟠 Effortless Bracket Loading – A rotary pick-and-place unit streamlines bracket placement for uninterrupted workflow. 🟣 Seamless Molded Part Handling – A 2-axis pneumatic pick-and-place system ensures smooth and efficient molded part loading. ✅ Zero Defect Assurance – A fully automated segregation system guarantees 100% separation of NG (non-good) parts from OK parts, ensuring top-tier quality. Design focused on real shop-floor implementation and manufacturing feasibility
