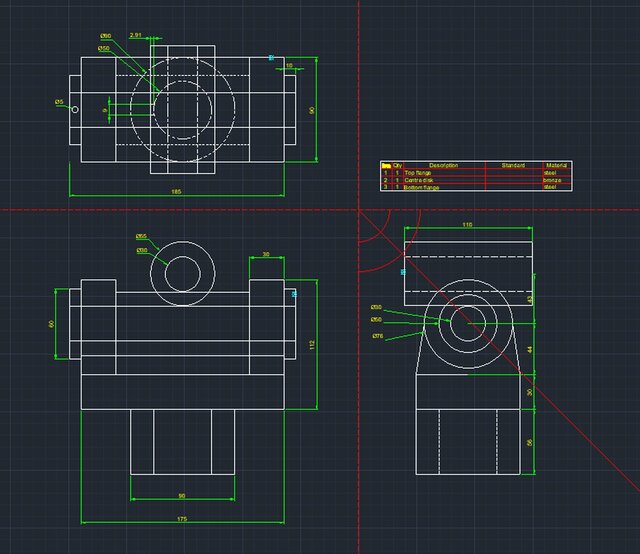

Professional 2D CAD drafting of a mechanical Bearing Block assembly. This comprehensive technical drawing includes three fully dimensioned orthographic views (Top, Front, and Right Side) Key Features & Dimensions Detailing: -Overall Dimensions: The main housing has an overall length of 185mm (170mm base) and a width of 55mm. -Bearing Features: The side profile shows a central stepped bore with diameters of Ø76, Ø50, and Ø30. -Mounting Base: Features a detailed base with a 110mm width and a 56mm height, designed for secure mounting. -Shaft Extensions: The top view clearly details shaft extensions on both sides, including a Ø25 feature on the right side and a Ø15 step on the left, complete with a 3mm keyway slot. -Precision Details: Includes comprehensive dimensioning for center distances (90mm vertical), fillets, chamfers, and hidden lines indicating internal bores and mounting holes.
