Belt Conveyor assembly

Report

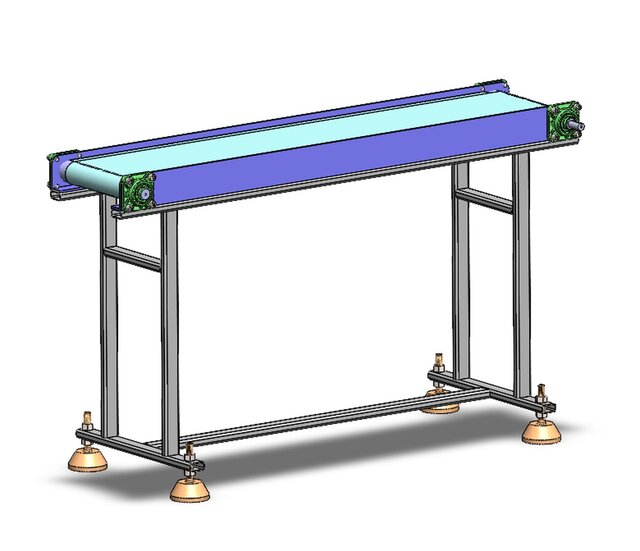

3D assembly of an industrial belt conveyor system. Designed and modeled in SolidWorks, featuring structural frame supports, drive and tensioner rollers, pulleys, and a continuous transport belt. Optimized for material handling, manufacturing automation, and bulk transport applications. Fully constrained assembly with detailed part hierarchies. Native SolidWorks files and standard interchange formats included.
Published
in 3D Modeling Mechanical Engineering SolidWorks Engineering Services
solidworks industrial-design mechanical-design machine-design belt-conveyor material-handling assembly-modeling conveyor-system
Rendering Images
