BAGFILTER WITH HOPPER AND INLET OUTLET PLENNUM

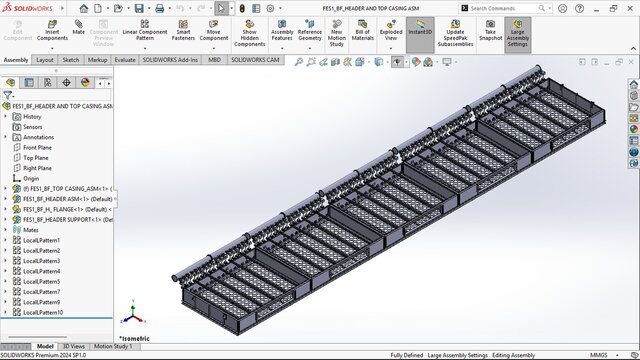

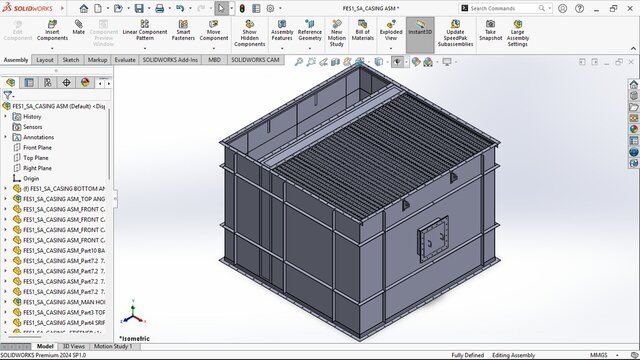

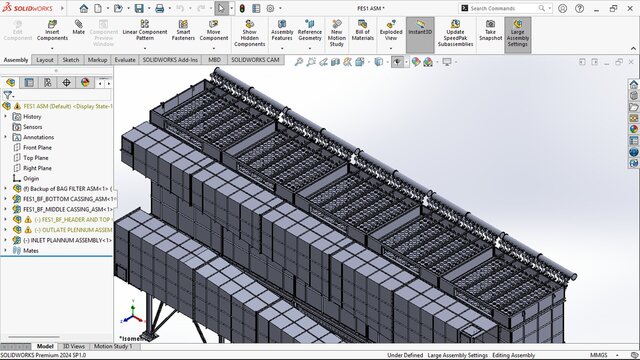

Detailed 3D CAD model of an industrial Bag Filter system featuring an integrated dust collection hopper, inlet plenum, and outlet plenum. The model includes the filter housing, bag filter arrangement, hopper, inlet/outlet plenums, flanges, access doors, support structure, and connecting provisions. Developed with practical considerations for airflow distribution, dust collection, fabrication, assembly, maintenance access, and integration with an industrial Fume Extraction System (FES). Suitable for design visualization, fabrication reference, assembly planning, and engineering documentation.
