Automotive Progressive Stamping Die | Full Structural Design in UG NX

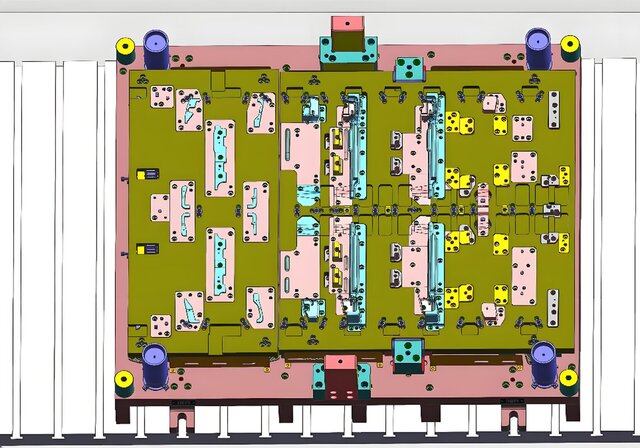

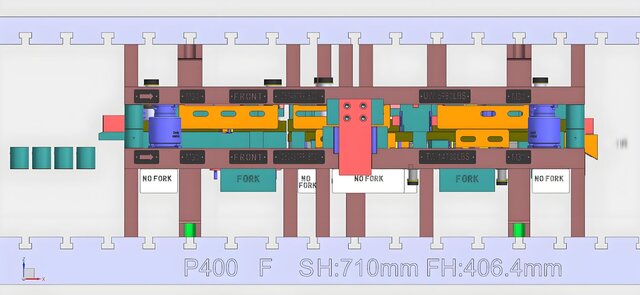

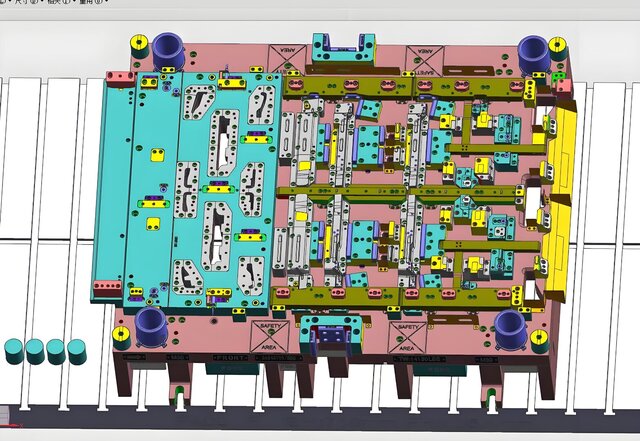

This automotive progressive stamping die design provides a complete production-ready tooling solution, fully modeled and engineered in UG NX for high-volume sheet metal stamping in the automotive industry. This tool and die design integrates multiple sequential working stations along the strip feed path, combining precision forming, piercing and trimming operations into a single continuous manufacturing process. Built with a heavy-duty steel die base and high-rigidity frame structure, the die delivers excellent vibration resistance and long-term dimensional stability for uninterrupted high-speed production. It is equipped with industry-standard guide pillar guiding systems, nitrogen spring blankholding & stripping mechanisms, and a reliable scrap discharge setup, ensuring consistent part quality and stable operation across long production runs.
