Automotive Progressive Stamping Die | 800T Press | Full UG NX Design

Report
High-precision progressive stamping die designed in UG NX, built for high-volume automotive sheet metal manufacturing on 800-ton press lines. This tool and die design integrates multi-station forming, piercing, trimming and blanking into one continuous strip feed process.
Published
in 3D Modeling Design 3D Design Services
autocad progressive-die-design ug-nx stamping-die-design automotive-die-design metalstamping productiontool dieengineer stampingdie

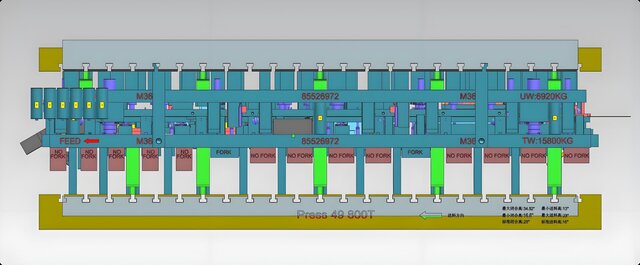

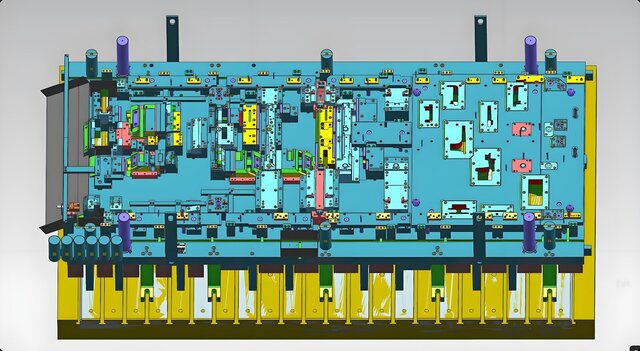

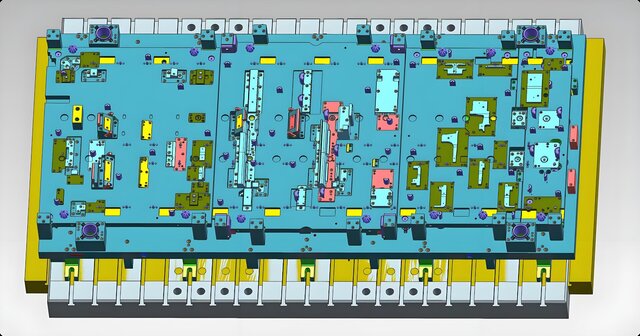

Rendering Images
