Automotive Grade Cast Iron Progressive Stamping Die Full 3D Design

Report
The entire tooling was fully modeled and validated in UG NX, with comprehensive DFM analysis, 3D interference checking and stamping motion simulation completed in the design phase. This upfront validation minimizes on-site modification risks, shortens tool tryout cycles and ensures seamless transition from design to production. High Precision Cast Iron Progressive Die | Automotive Stamping Tooling
Published
in 3D Modeling Design 3D Design Services AutoCAD Design Services
automotive progressive-die-design ug-nx cad-3d stamping-die tool-and-die-making sheet-meatal-design

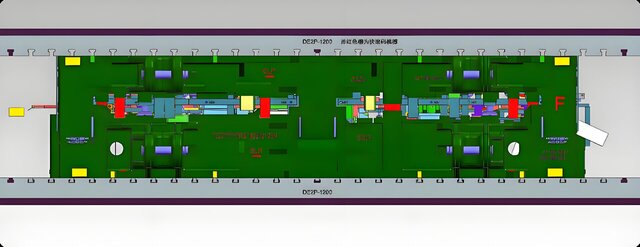

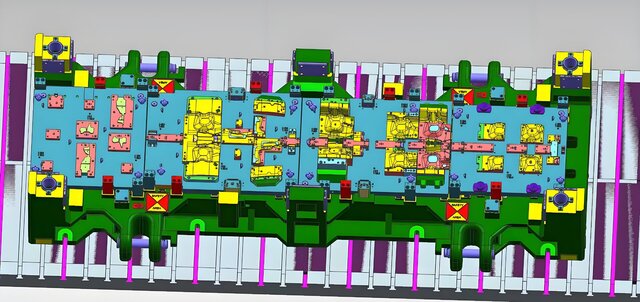

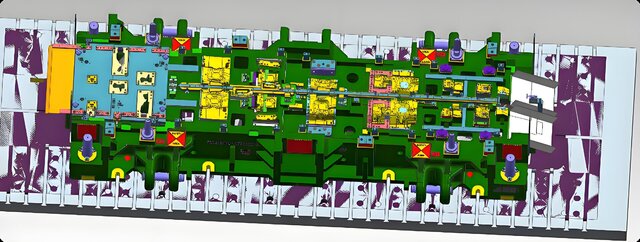

Rendering Images
