Automatic Double Station Lathe Loading and Unloading Machine

Report

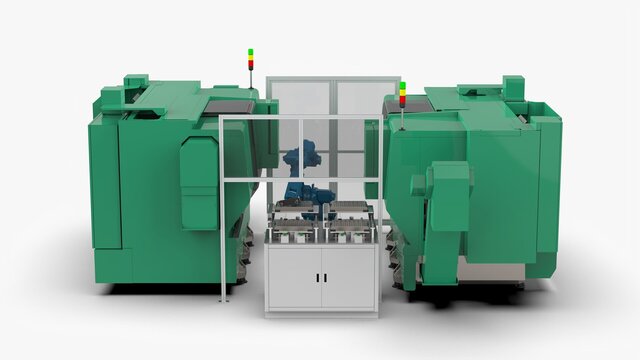

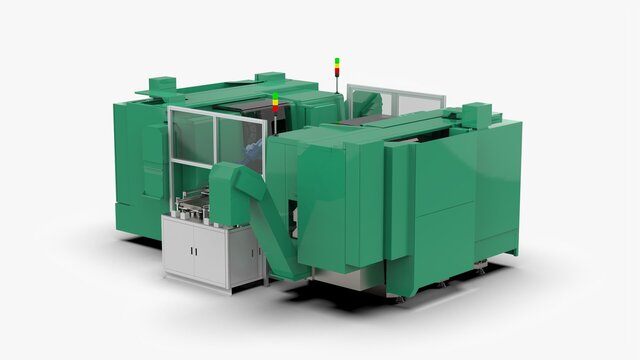

A detailed 3D CAD model of an Automatic Double Station Lathe Loading and Unloading Machine, developed to showcase an automated machining and workpiece handling system. The model includes the machine structure, double-station setup, loading and unloading mechanism, workpiece handling components, supports, fixtures, and other mechanical elements. Key Features Complete 3D machine assembly Double-station lathe setup Automatic loading and unloading mechanism Workpiece handling system Mechanical supports and fixtures Detailed component modeling Assembly-focused CAD design Manufacturing-oriented mechanical design
Published
in Industrial Design Services SolidWorks Engineering Services Assembly Modeling Services
manufacturable-design

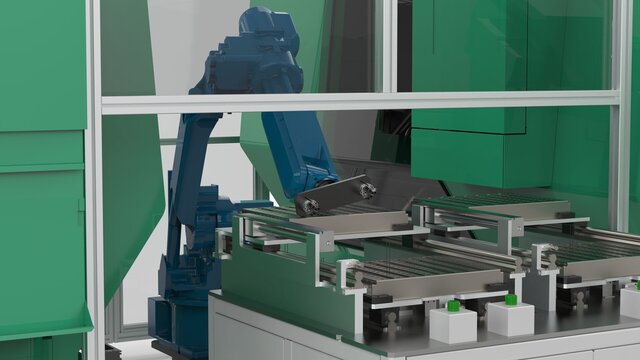

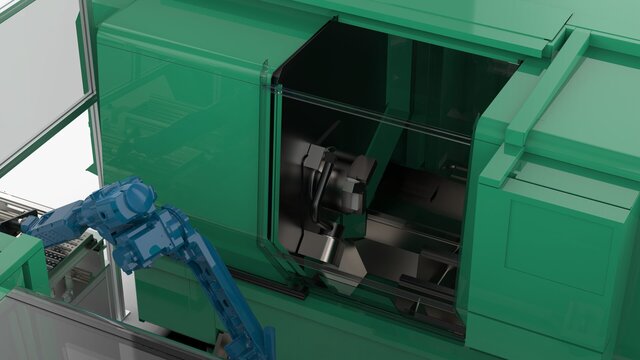

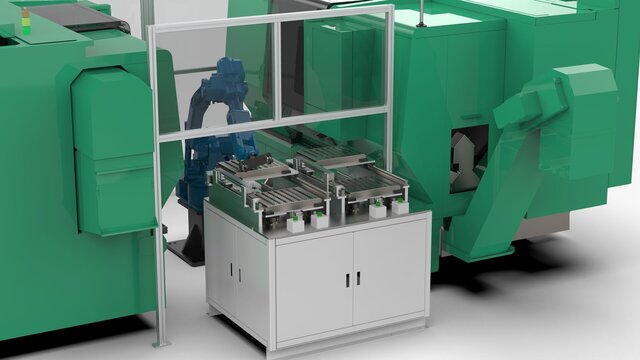

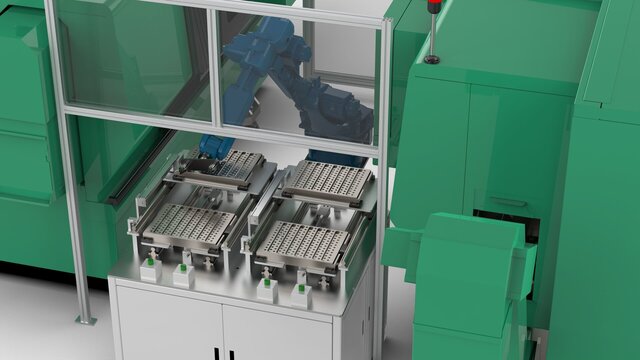

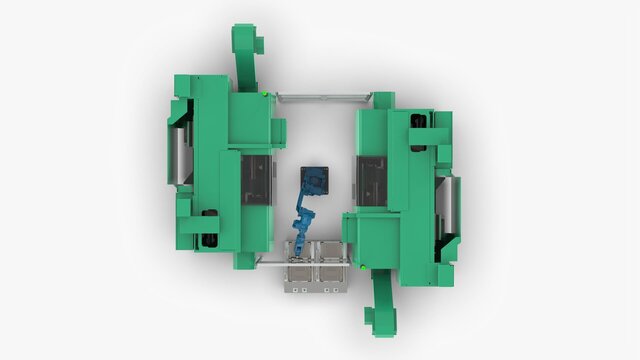

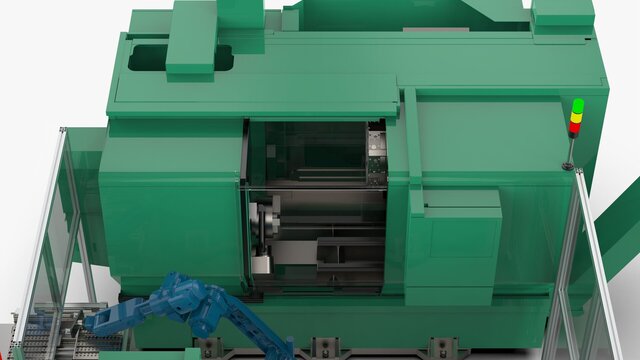

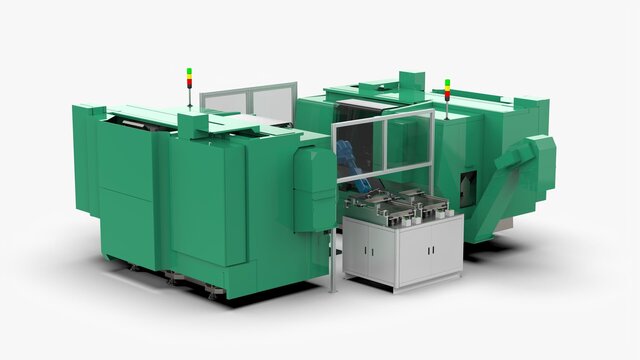

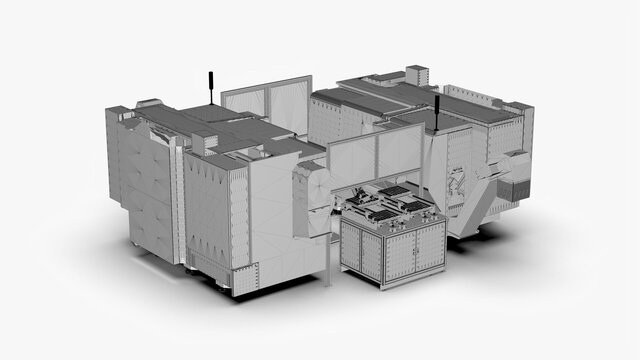

Rendering Images
