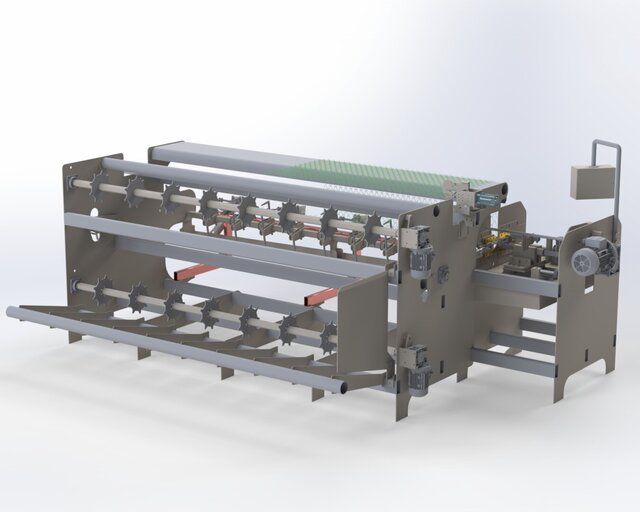

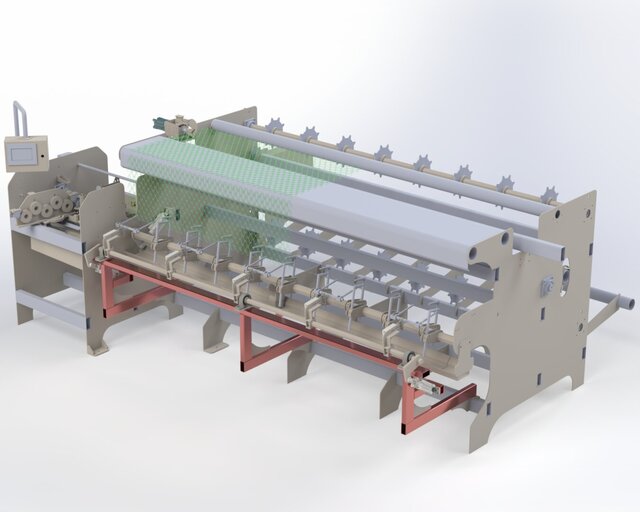

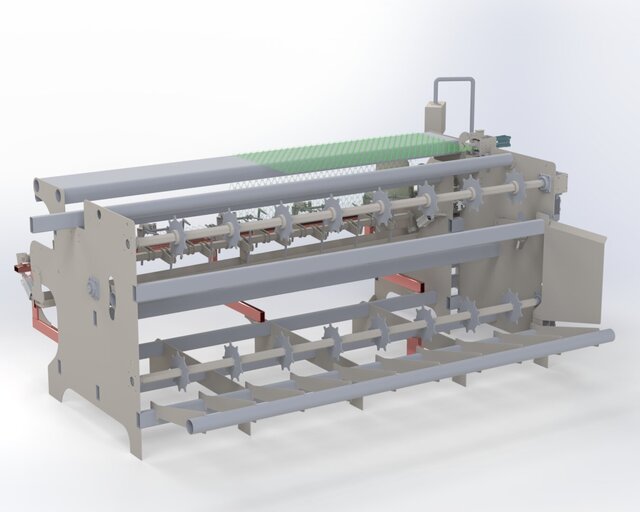

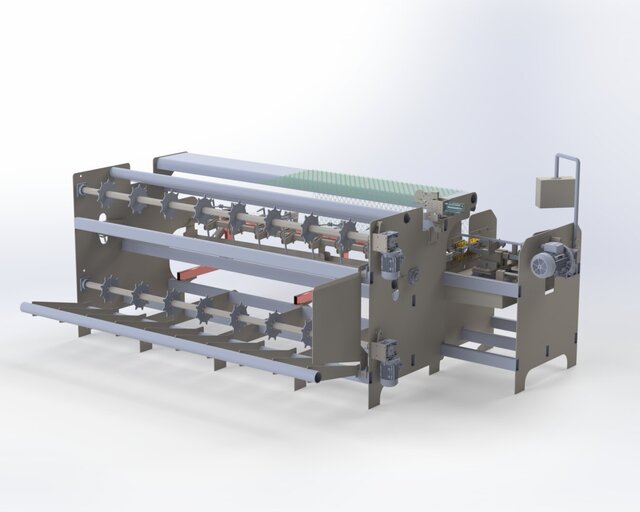

Automatic Chain Link Fence Weaving Machine Design

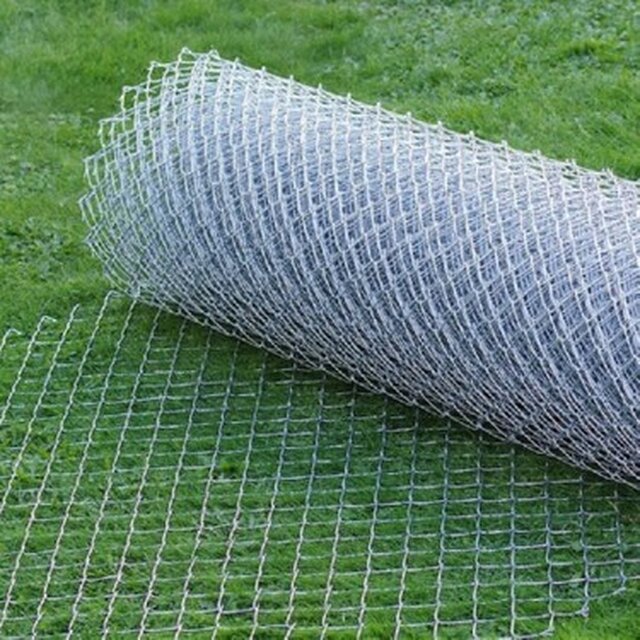

This project showcases the complete mechanical design of an automatic chain link fence weaving machine developed for industrial mesh production. The machine is designed to manufacture chain link fencing continuously by feeding steel wire, forming the characteristic diamond-shaped mesh pattern, interlocking successive wires, and transporting the finished fence toward the winding section. The entire system was modeled as a fully manufacturable industrial machine with emphasis on structural rigidity, synchronized motion, ease of maintenance, and efficient production. Main Design Features Complete 3D mechanical design Heavy-duty welded steel frame Sheet metal side structures Multiple synchronized weaving heads Automatic wire feeding mechanism Mesh forming and guiding system Driven transport rollers Mesh pulling and tension control Industrial motor and gearbox integration PLC-compatible machine layout Maintenance-friendly modular construction Engineering Scope The project involved designing and assembling numerous mechanical components, including: Welded frame construction Precision machined shafts Bearing housings Roller assemblies Guide mechanisms Drive transmission components Structural supports Adjustable mounting brackets Sheet metal guards Operator access areas Special attention was given to proper shaft alignment, component accessibility, structural stiffness, and manufacturing feasibility. Design Process The machine was developed as a complete production-ready CAD assembly, where each subsystem was designed individually before being integrated into the final machine. The work included: Concept development Mechanical layout Assembly modeling Motion verification Manufacturing-oriented design Component positioning Structural optimization Production-ready assembly creation CAD Software SolidWorks Assembly Modeling Weldments Sheet Metal Mechanical Design Production Drawings Design for Manufacturing (DFM) Applications Chain link fence production Security fencing Agricultural fencing Industrial perimeter fencing Sports field fencing Construction site barriers
