Automated Thermal Transfer Machine for Timing Belts

Report

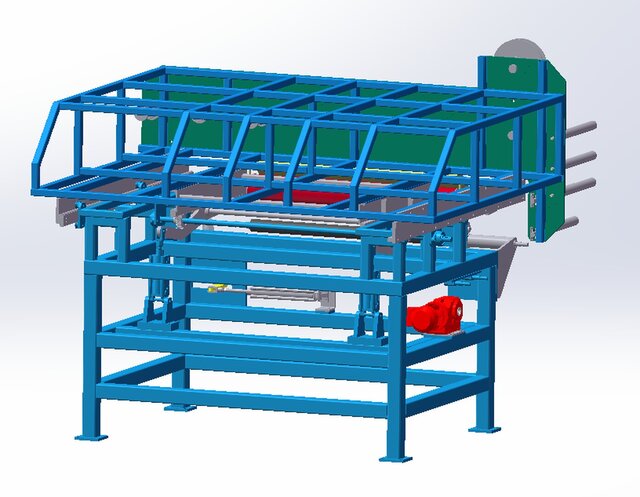

My role: Lead Mechanical Design Engineer Project description: 3D mechanical design of a custom automated thermal transfer machine for timing belt manufacturing using SolidWorks. Key Engineering Features: • Complete structural frame weldment & heavy-duty chassis design • Multi-roller tension control and precision belt guidance system • Integrated motor-driven transmission and thermal transfer roller assembly • Full 3D assembly modeling, component interference checking, and BOM generation Tools: SolidWorks 3D CAD, Motion Analysis.
Published
in Mechanical Engineering 3D Design Services SolidWorks Design Services
solidworks-design-services thermal-transfer-machine roller-system weldment-frame timing-belt
