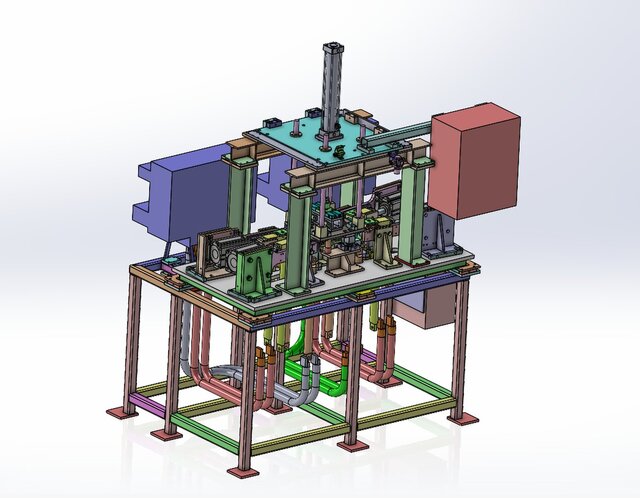

Auto Spot Welding Machine DOOR COMP

Project Overview This project involves the design and development of an Automatic Spot Welding Machine specifically engineered for fuel tank manufacturing applications. The machine is designed to automate the spot welding process, improving production efficiency, weld consistency, and overall product quality while reducing manual labor requirements. The design was created with a strong focus on industrial manufacturing environments where reliability, precision, and high production throughput are essential. Industry Applications Automotive Fuel Tank Manufacturing Motorcycle Fuel Tank Production Metal Fabrication Industries Sheet Metal Assembly Lines Industrial Welding Automation Custom Tank and Container Manufacturing Key Design Features Robust welded steel frame construction Pneumatic welding electrode actuation system Adjustable welding positions for various fuel tank sizes Modular assembly for easy maintenance and future upgrades Precision alignment fixtures to ensure repeatable weld quality Operator-friendly design with safety considerations Production-oriented layout for efficient workflow Integration capability with automated loading and unloading systems CAD Design and Engineering Scope The project included: Complete 3D machine modeling Mechanical assembly design Fabrication and manufacturing drawings Sheet metal component development Welding fixture and tooling design Detailed engineering documentation Bill of Materials (BOM) preparation Design validation for manufacturability Software Utilized SolidWorks (3D Modeling, Assembly Design, Technical Drawings) AutoCAD (2D Engineering Drawings and Documentation) Deliverables Fully detailed 3D CAD model Production-ready fabrication drawings Assembly drawings and exploded views DXF files for laser cutting and CNC fabrication Bill of Materials (BOM) STEP, DWG, PDF, and native SolidWorks files Real-World Implementation This machine design is intended for manufacturing facilities that require high-volume fuel tank production with consistent weld quality. By automating the spot welding process, manufacturers can increase productivity, reduce defects, improve workplace safety, and maintain tighter quality control standards. The design approach emphasizes practical fabrication methods, ease of assembly, maintainability, and long-term operational reliability, making it suitable for modern industrial production environments.
