ASME VIII Pressure Vessel Design

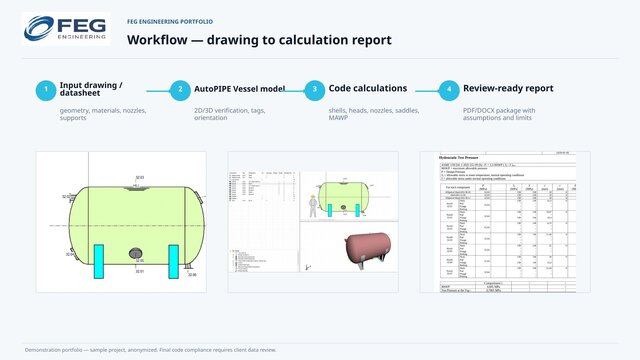

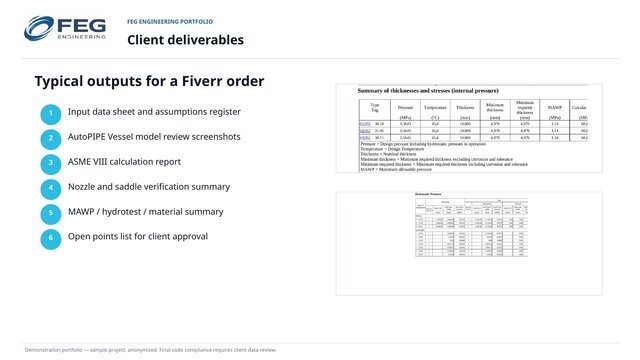

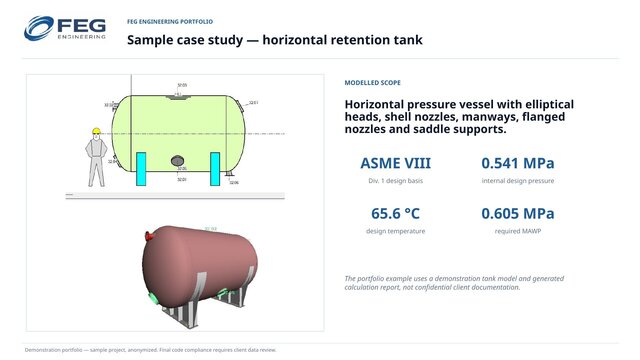

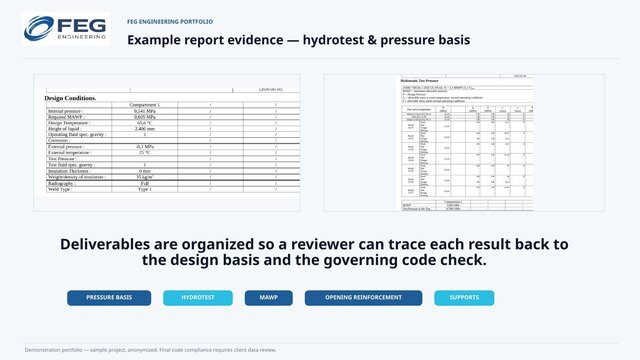

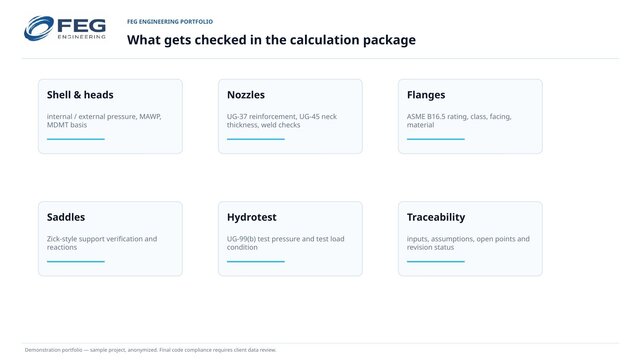

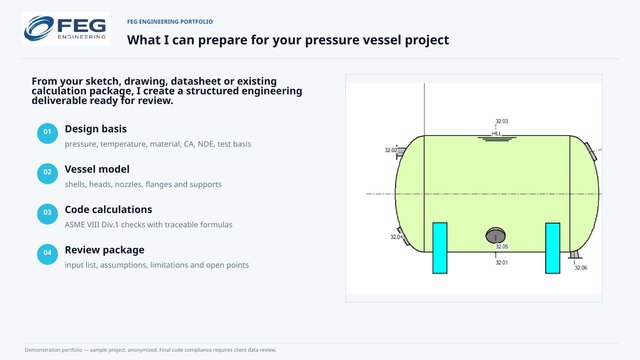

Portfolio sample showing an ASME VIII Div. 1 pressure vessel design and verification workflow for a horizontal retention tank. The project includes vessel geometry definition, shell and elliptical head verification, nozzle reinforcement checks, ASME B16.5 flange review, saddle support analysis, MAWP verification, external pressure check and hydrostatic test pressure calculation. The work was prepared using professional pressure vessel design software and structured as an auditable engineering calculation package, from design basis to final technical report. Main scope: * ASME VIII Div. 1 pressure vessel calculation * Horizontal vessel with elliptical heads * Nozzle and opening reinforcement review * Standard flange verification * Saddle support analysis * MAWP and hydrotest calculation * Engineering report preparation This is a portfolio demonstration based on anonymized/sample data. Final engineering deliverables always require project-specific inputs, drawings, design conditions, material data and engineering review before fabrication or certification.
