Art-to-CNC — Image Vectorization & High-Precision Toolpath Engineering for CNC Woodworking

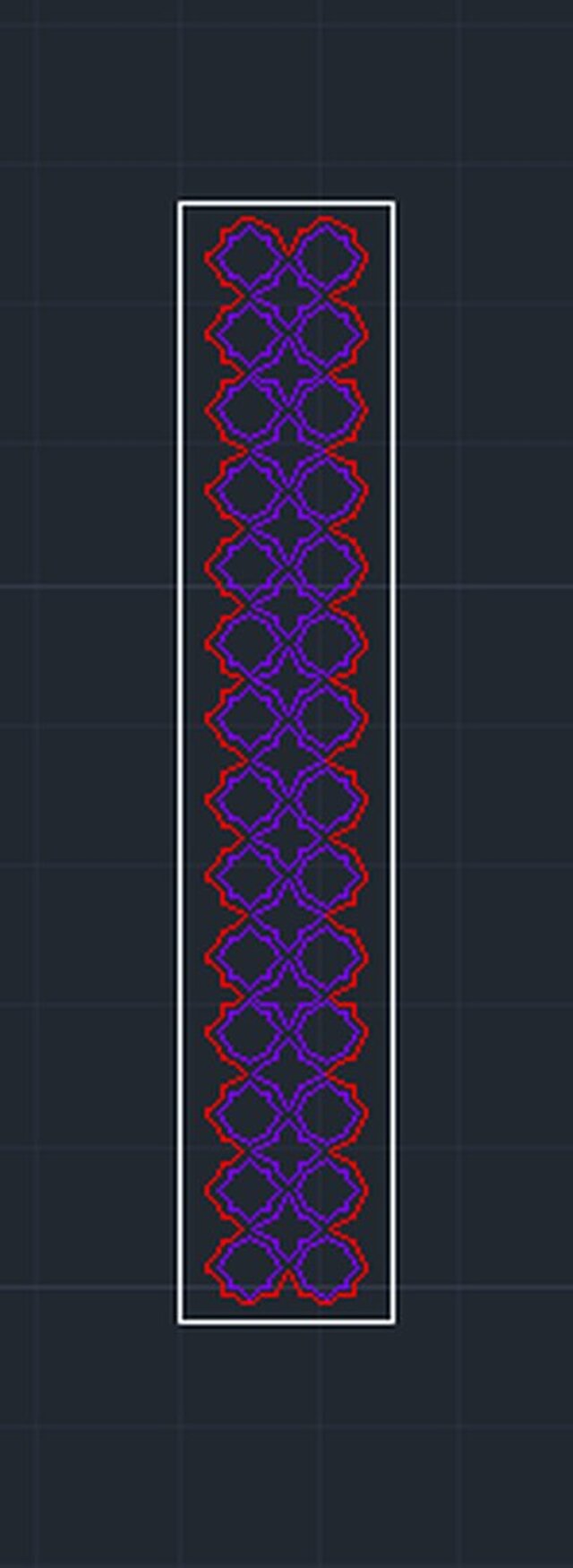

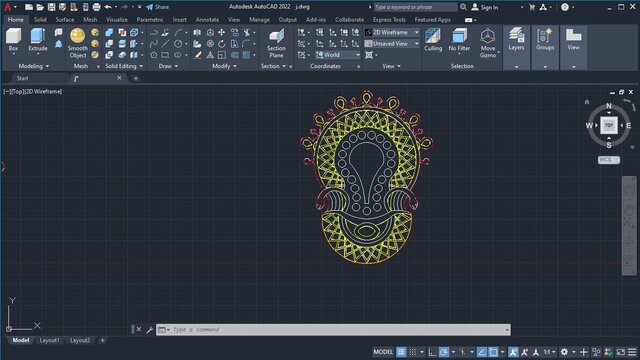

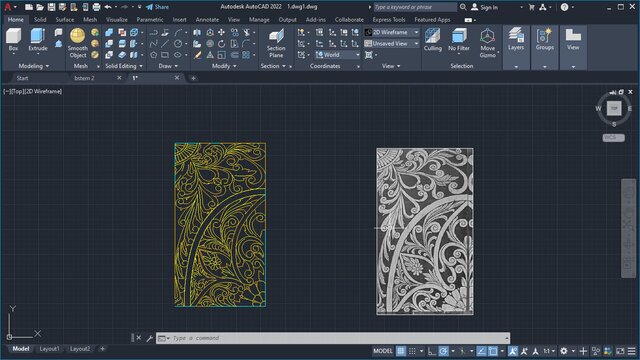

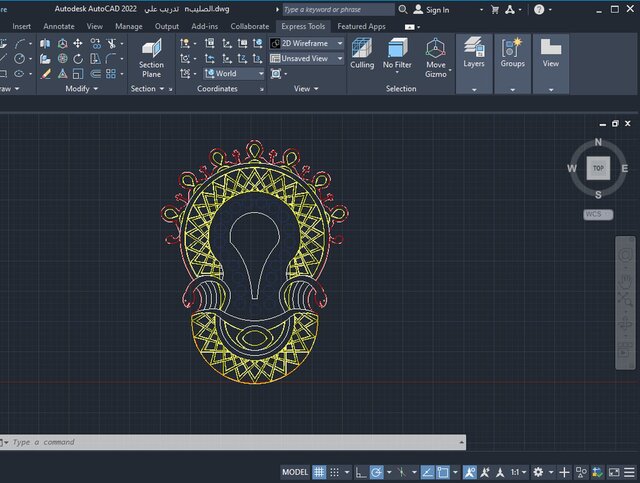

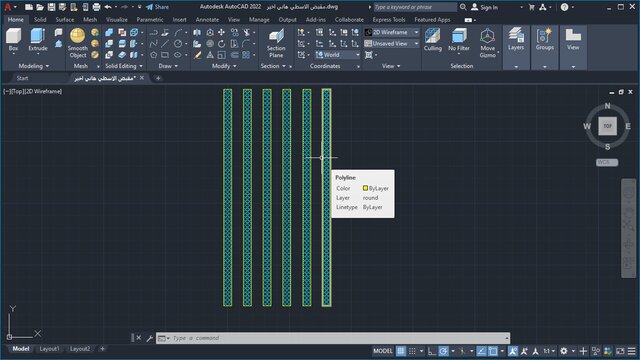

Transformed hand-drawn and scanned artistic motifs into production-ready CNC files.. from raw image capture through vector reconstruction, toolpath optimization, and material layout. Delivered clean-cut results with no post-processing required. TECHNICAL PROCESS: 1. IMAGE CAPTURE & PROCESSING • Scanned original artwork via CamScanner • Applied noise reduction and threshold correction for clean edge extraction • Output: High-resolution vector-ready bitmap 2. VECTOR RECONSTRUCTION (AutoCAD) • Manually rebuilt curves using G2/G3 continuity — eliminates velocity discontinuities that cause machine jitter, burning, or burring in wood • All radii verified against client's minimum tool diameter to prevent uncut corners • Spline geometry simplified without loss of visual fidelity — reduces file size and machine processing time 3. CNC OPTIMIZATION • Toolpath customized to client's specific bit diameters and machine kinematics • Corner entries and exits chamfered to maintain constant feed rate through tight radii • Climb vs. conventional milling direction selected per wood grain orientation to minimize tearout 4. MATERIAL NESTING • Patterns arranged on board layout to maximize material yield and minimize waste cuts • Kerf width accounted for in all part spacing DELIVERABLES: AutoCAD DXF / DWG files ready for CNC controller import Material layout sheet Cut sequence documentation SOFTWARE: AutoCAD, CamScanner APPLICATION: CNC Wood Routing / Carving CLIENT TYPE: Local manufacturing workshop
