ANSYS FEA & CFD Engineering Portfolio - 6 Simulation Projects
A collection of 6 independent Finite Element Analysis (FEA) and Computational Fluid Dynamics (CFD) simulation projects completed using ANSYS Workbench, covering structural, fatigue, thermal, and fluid flow analysis:

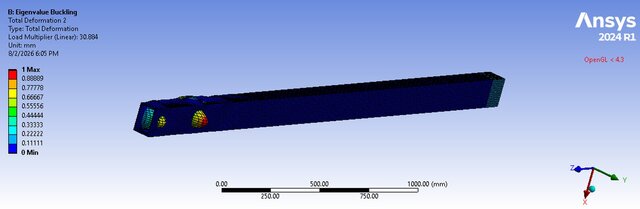

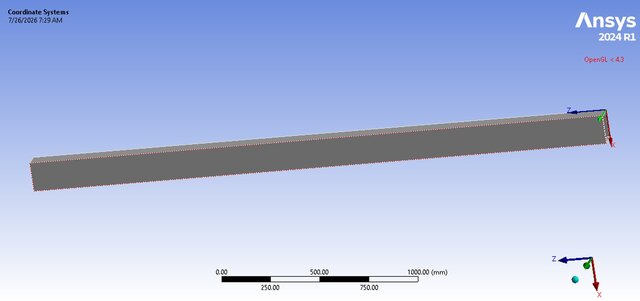

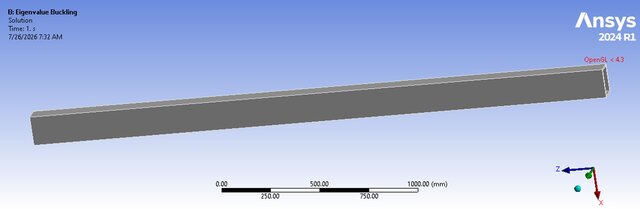

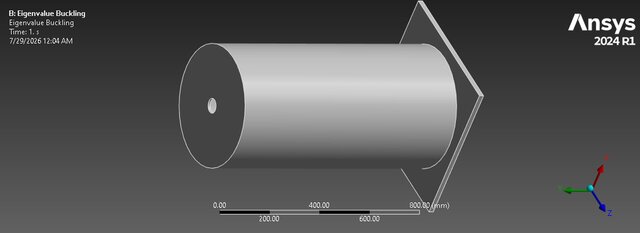

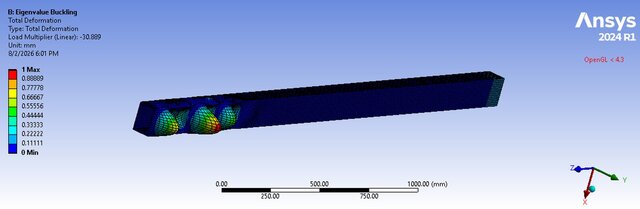

1. Static Structural & Eigenvalue Buckling Analysis of a Crane/Excavator Boom Assembly

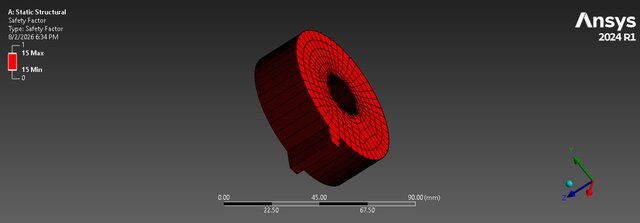

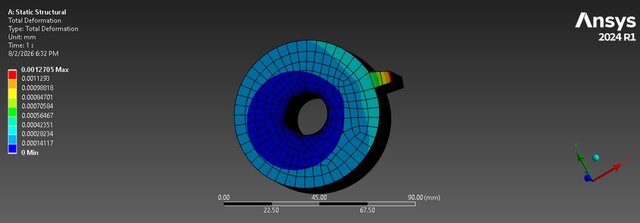

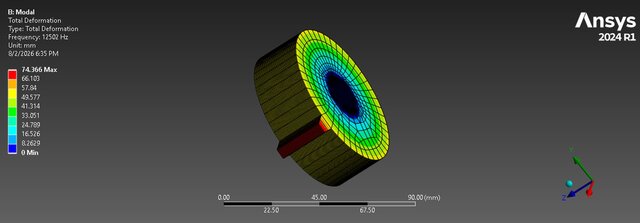

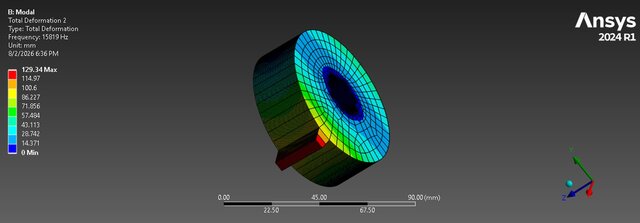

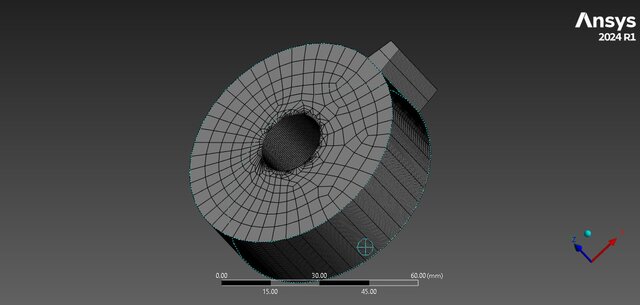

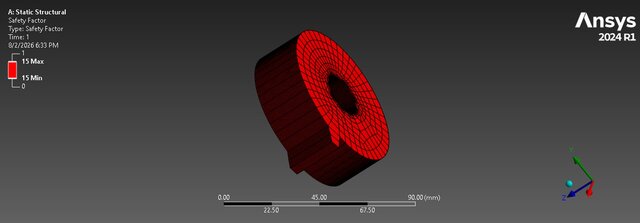

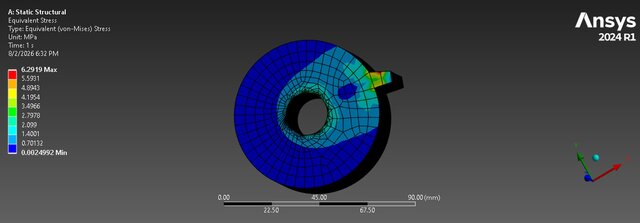

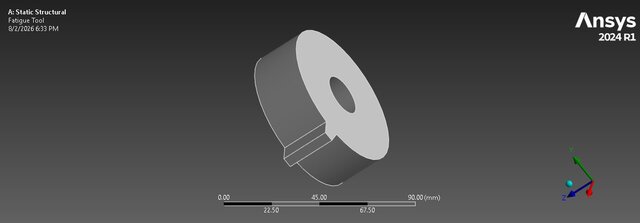

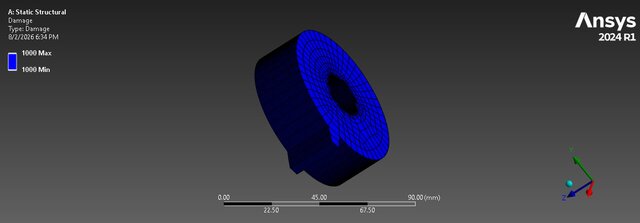

2. Gear Tooth Stress, Fatigue & Modal Analysis

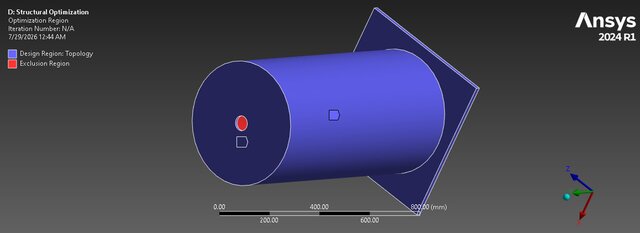

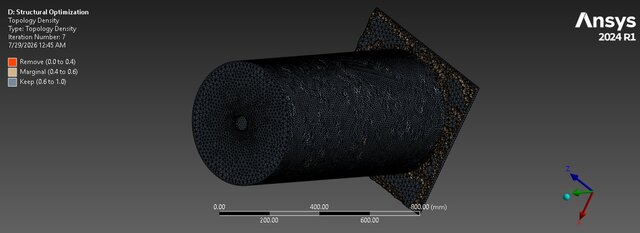

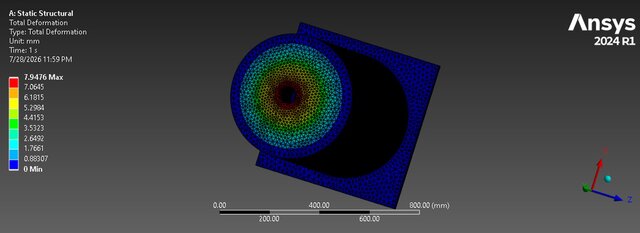

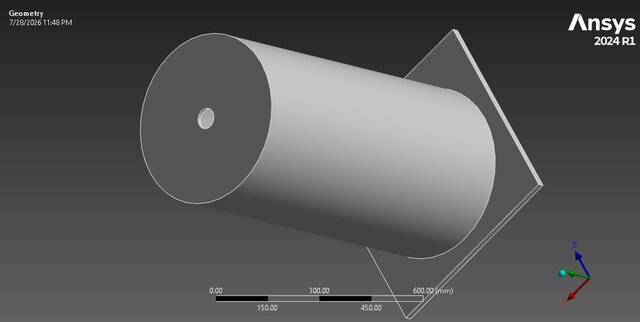

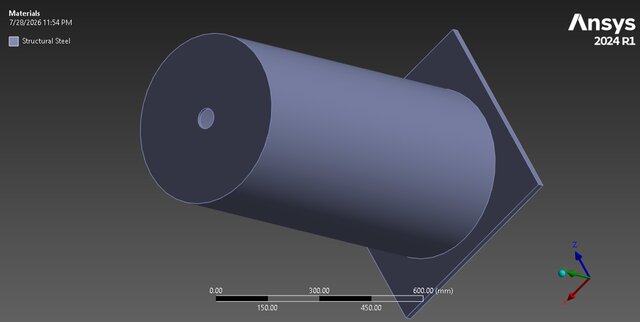

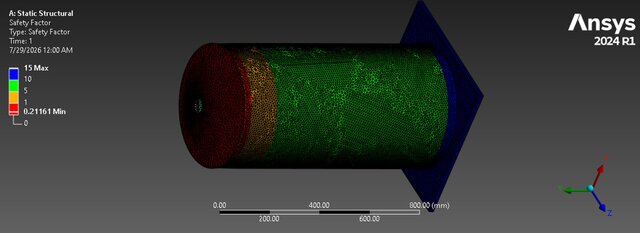

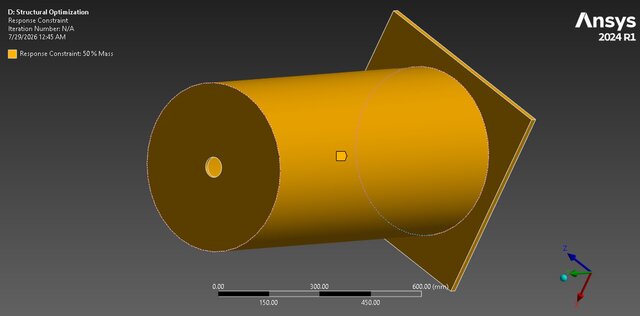

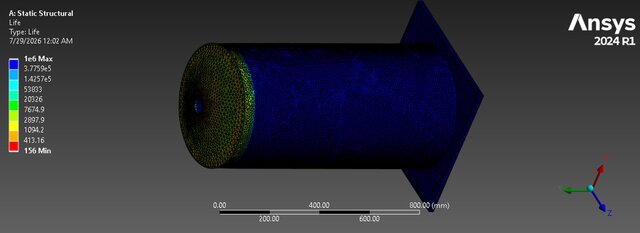

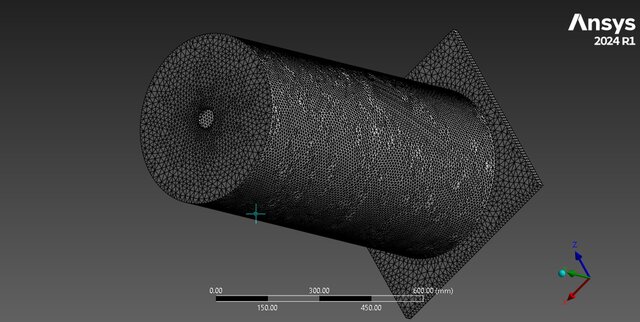

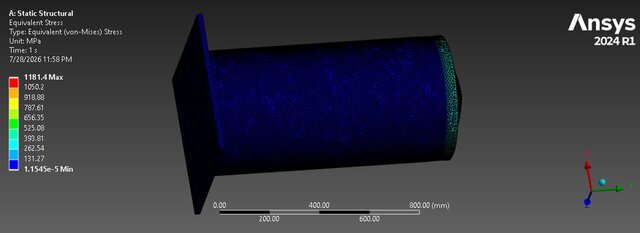

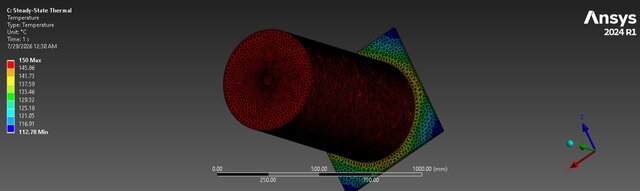

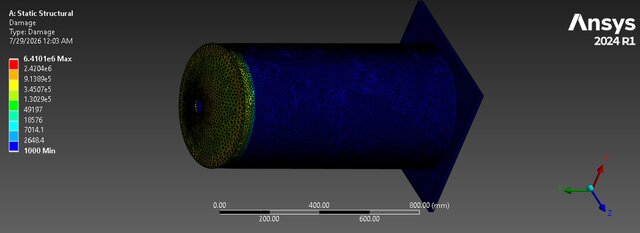

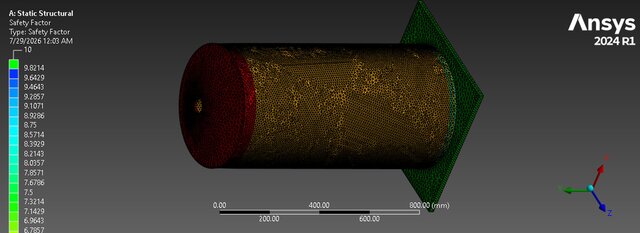

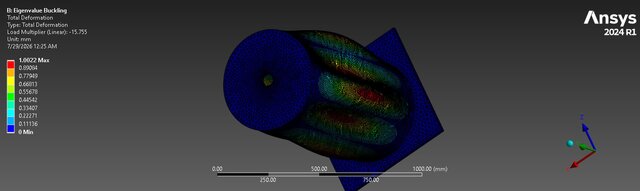

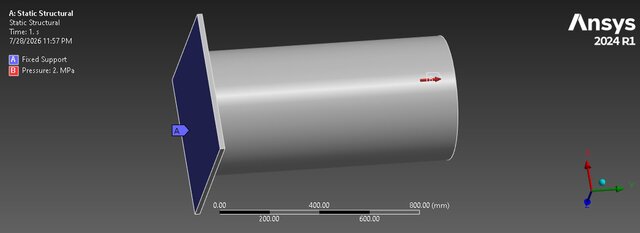

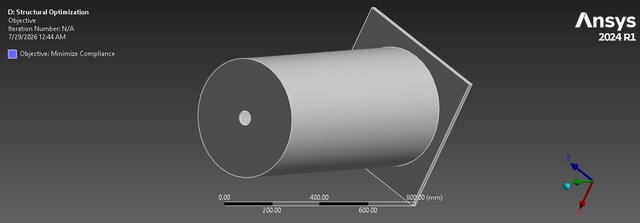

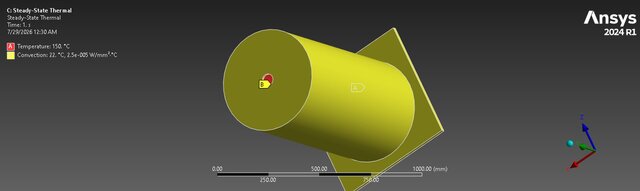

3. Multi-Physics Analysis of a Pressure Vessel with Support Bracket

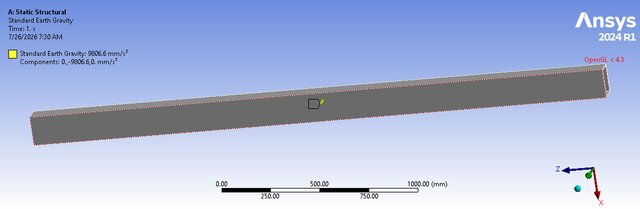

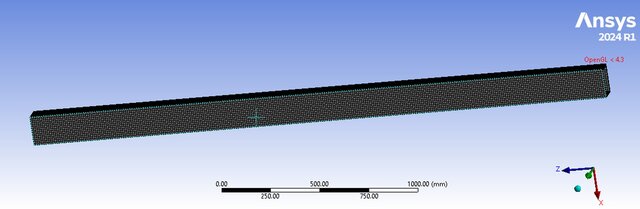

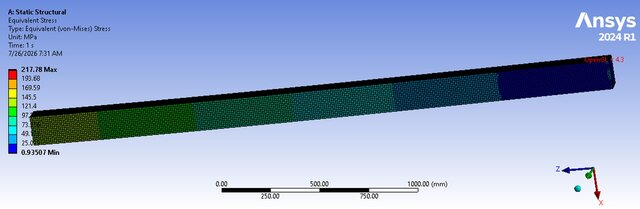

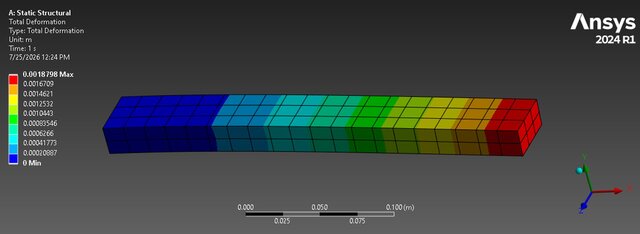

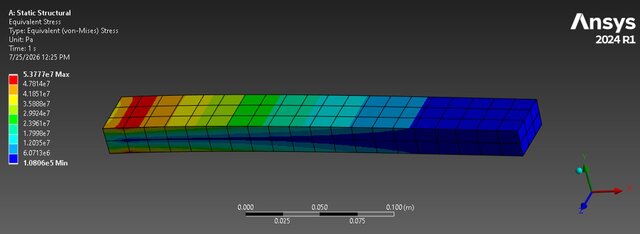

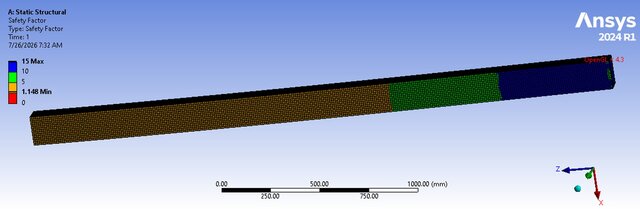

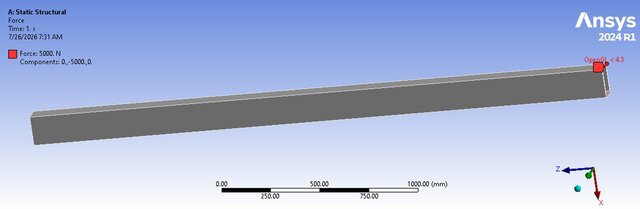

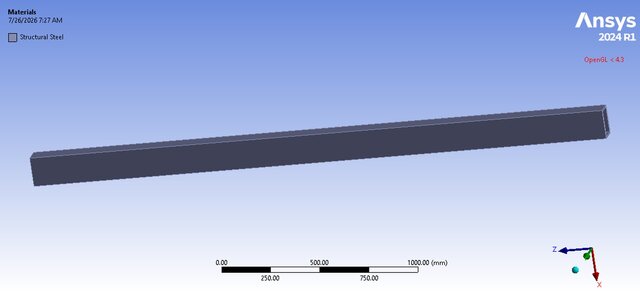

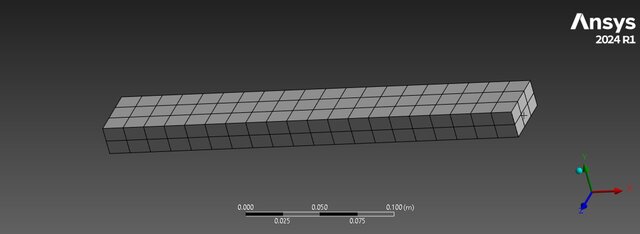

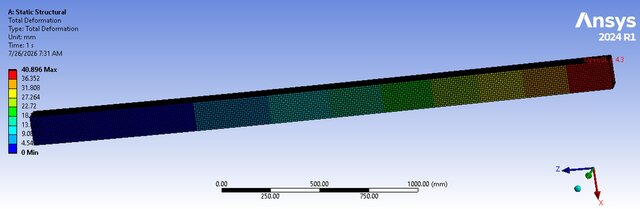

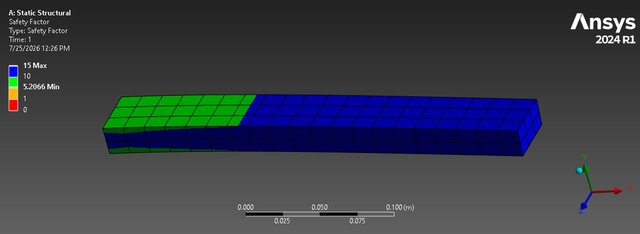

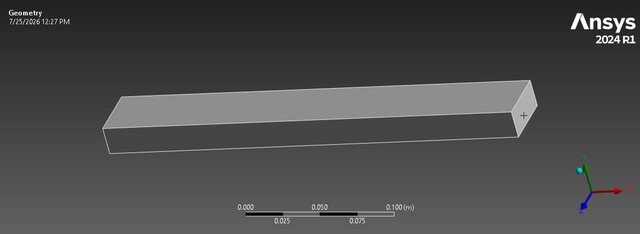

4. Static Structural Analysis of a Cantilever Beam Bracket

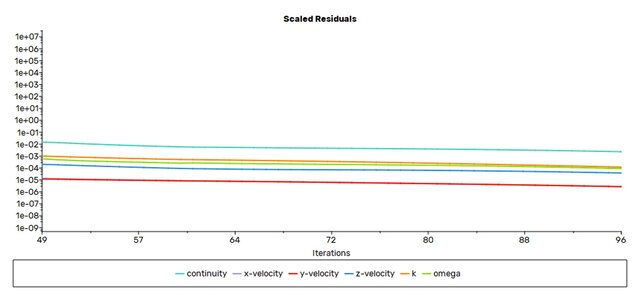

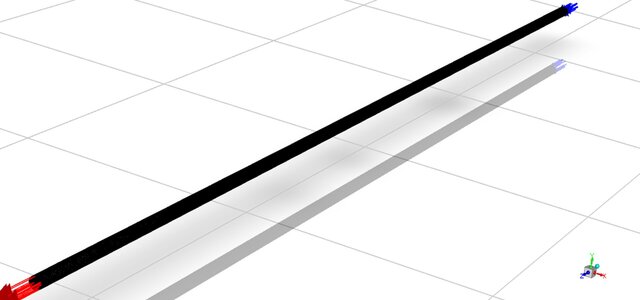

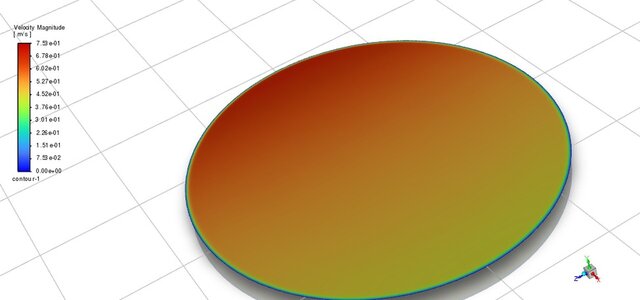

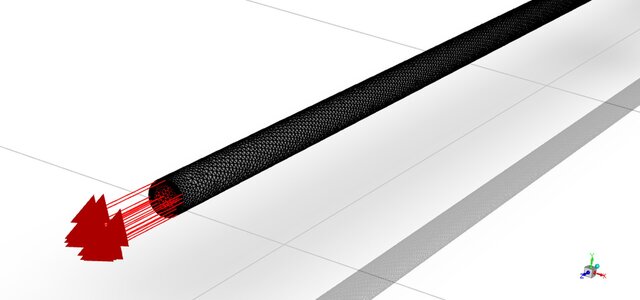

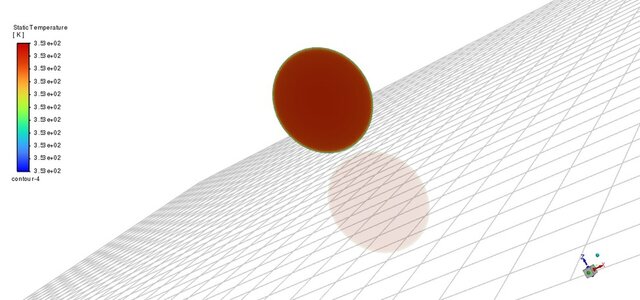

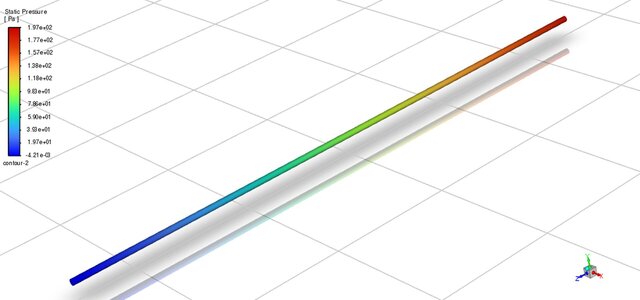

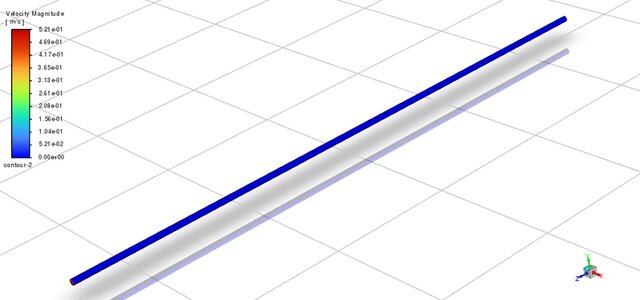

5. CFD Pressure Drop Analysis in a Cooling Water Pipeline

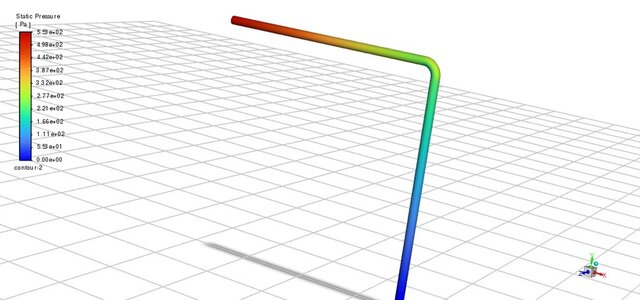

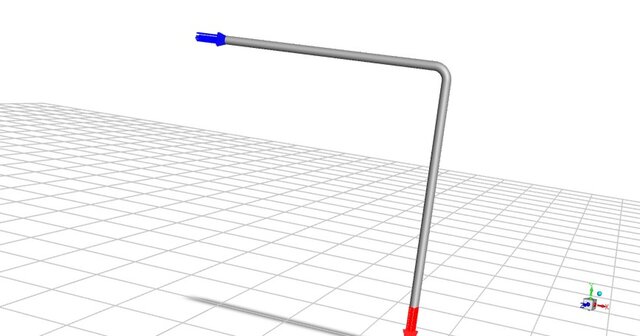

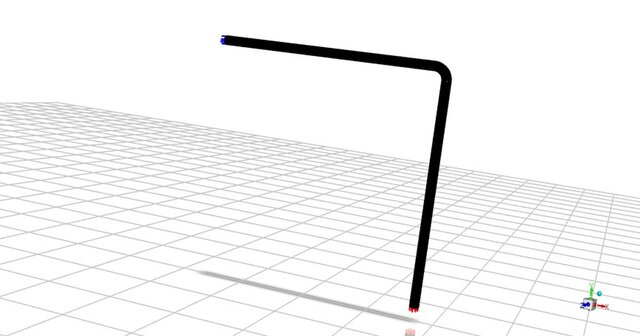

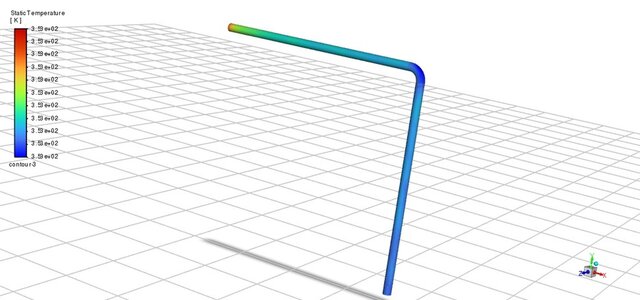

6. CFD Analysis of Flow through a 90° Pipe Bend
Each project includes complete simulation workflow: geometry modeling, meshing, boundary condition setup, solving, post-processing, and validation against analytical calculations.
