Aluminum Pergola Structural Design & Permit Drawings Miami Dade, Florida

Report

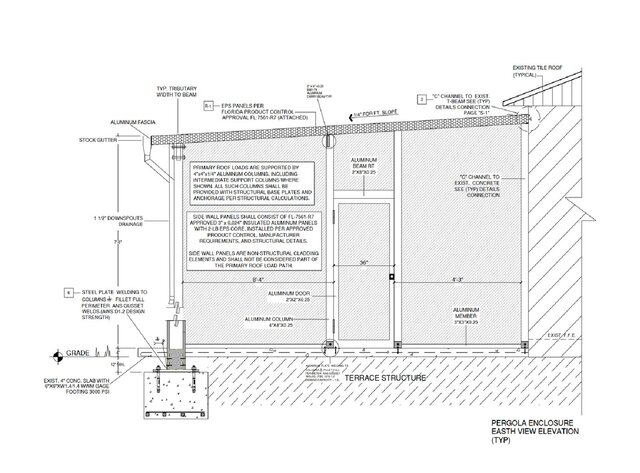

Complete structural design and permit drawing package for a residential aluminum pergola developed in accordance with Florida Building Code requirements and wind load criteria. Project scope included: • Structural framing layout • Aluminum beam and column design • Base plate and anchorage details • Wind load analysis • Structural calculations • Connection and fastening details • Foundation and footing requirements • Florida Building Code 2023 compliance • Permit-ready construction documents The project was designed for permit approval, construction coordination and building department review. Prepared using AutoCAD 2026, Bluebeam Revu and structural engineering standards applicable to Florida residential construction. Services provided by EnConstruction US LLC.
