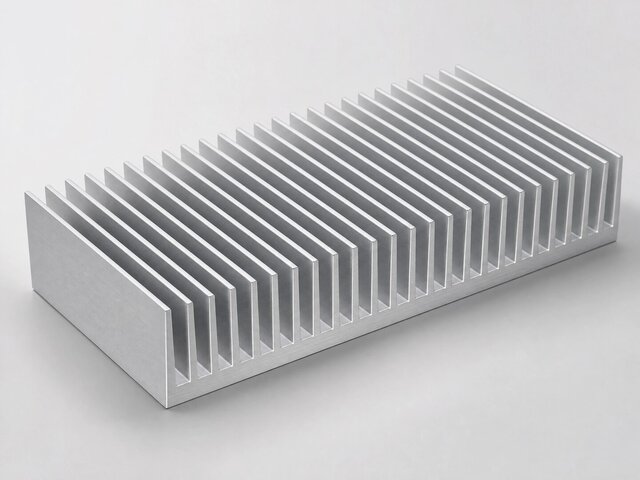

aluminum_heat_sink-1-
This project features a custom aluminum mechanical component designed for precision CNC machining and industrial applications. The model was created in SolidWorks with a focus on manufacturability, structural strength, and dimensional accuracy.
The design incorporates optimized wall thickness, fillets, chamfers, threaded holes, mounting features, and machining-friendly geometry to reduce production time while maintaining excellent mechanical performance. Every feature was developed following Design for Manufacturing (DFM) principles to ensure efficient fabrication and reliable assembly.
Project Features:
• Precision 3D CAD modeling
• CNC machining-ready geometry
• Lightweight aluminum construction
• Engineering tolerances
• Chamfers and fillets
• Threaded and clearance holes
• Manufacturing-ready technical drawings
• High-quality photorealistic renders
Deliverables:
• SolidWorks Part (.SLDPRT)
• STEP (.STEP)
• IGES (.IGS)
• STL (.STL)
• PDF Engineering Drawings
• DXF (if required)
• High-resolution rendered images
Applications:
• Industrial machinery
• Robotics
• Automation systems
• Automotive components
• Consumer products
• Aerospace prototypes
• Custom mechanical assemblies
