Aluminum Die-Casting Mold for Escalator Component

Report

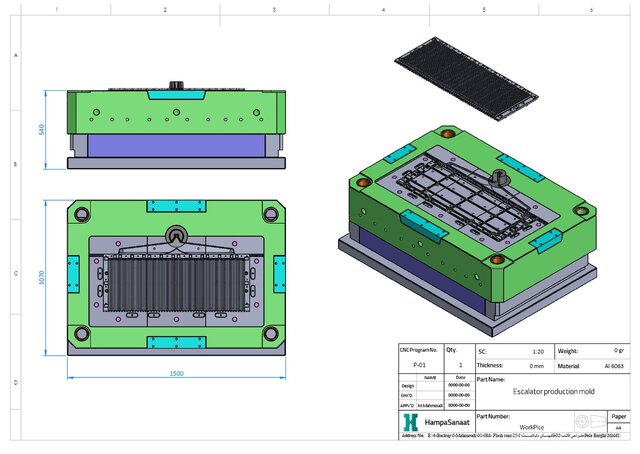

his is a two-part aluminum die-casting mold designed for an escalator step bracket. The project involved 3D modeling, parting line analysis, ejector pin planning, and mold base design using SolidWorks and CATIA. Draft angles and cooling channels were included as per manufacturing standards.
Published
in Industrial Design Services SolidWorks Design Services Mold and Die Design Services
solidworks catia die-casting mold-design
