Adjustable Offset Mounting Bracket

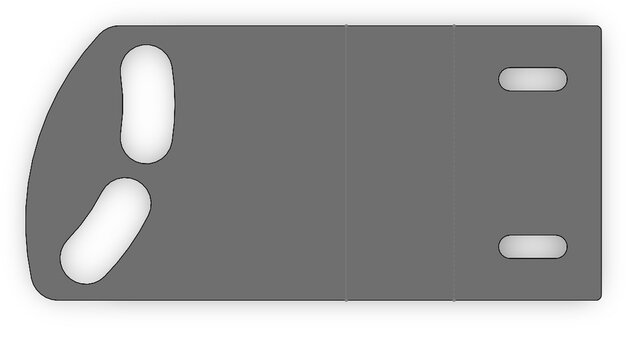

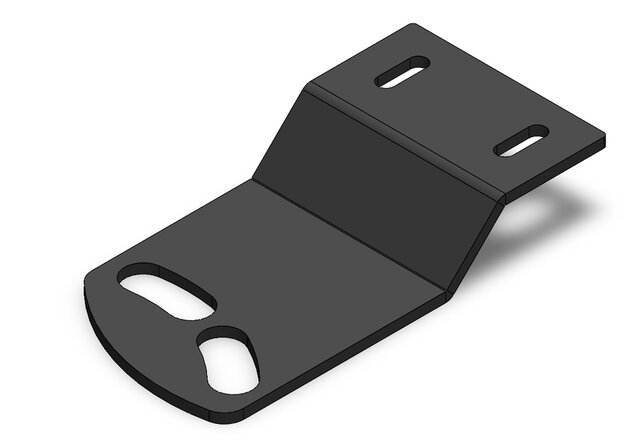

A precision sheet metal offset bracket designed for adjustable mounting applications. This model demonstrates advanced sketch geometry using radial and angular constraints to define slot paths.Technical Highlights:Radial Slot Geometry: Features two curved slots placed on an $80$ mm construction arc, allowing for $36.50^\circ$ of rotational adjustment.Dual-Bend Offset: Managed with specific bend deductions to maintain a total horizontal length of $210$ mm across multiple planes.Production Ready: Includes edge fillets ($R10$) to prevent sharp corners and is optimized for CNC laser or plasma cutting.
