Adjustable Motor Base Design for IEC 80–132 Electric Motors | Sheet Metal Assembly | Siemens NX

Report

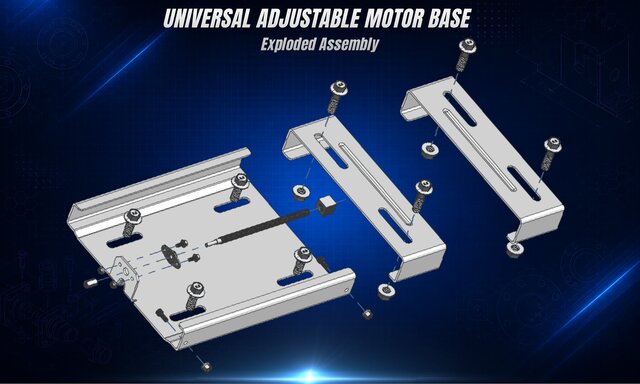

Designed a universal adjustable motor base suitable for IEC 80–132 frame electric motors. The assembly consists of laser-cut and bent sheet metal components with a lead screw adjustment mechanism for accurate motor positioning and V-belt tensioning. The design includes bearing-supported screw drive, replaceable nut arrangement, standard fasteners, and manufacturing-ready detailing. Complete 3D CAD modeling, assembly development, and exploded views were created using Siemens NX.
Published
in 3D Modeling Sheet Metal Design Design for Manufacturing and Assembly
product-design manufacturing-design mechanical-design machine-design sheet-metal-fabrication siemens-nx cad-modeling belt-drive sheet-meatal-design machine-component motor-accessories motor-base electric-motor-mount euipment-design
Rendering Images
