Adjustable Car Battery Tray

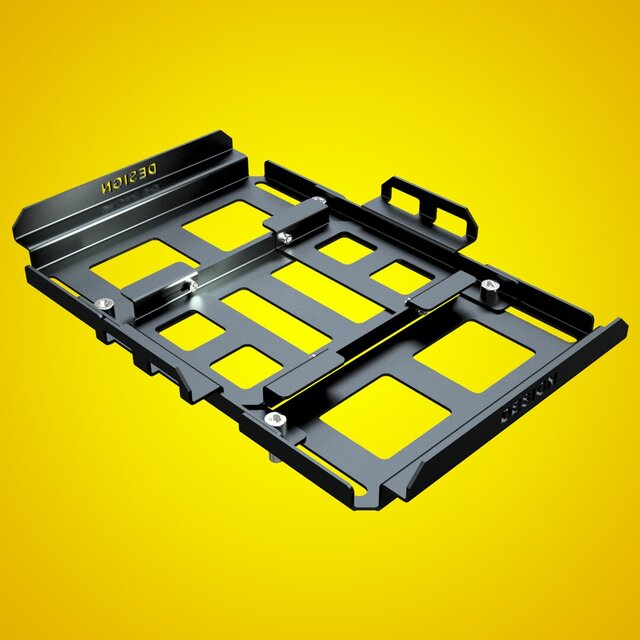

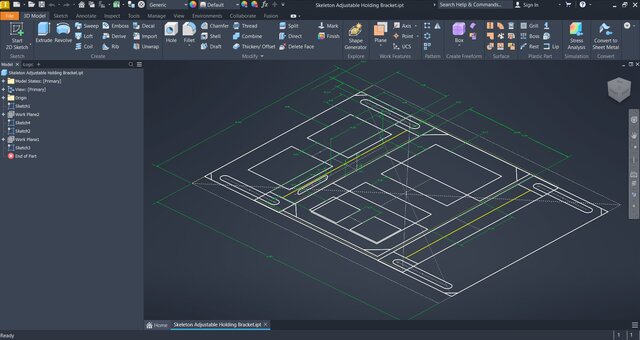

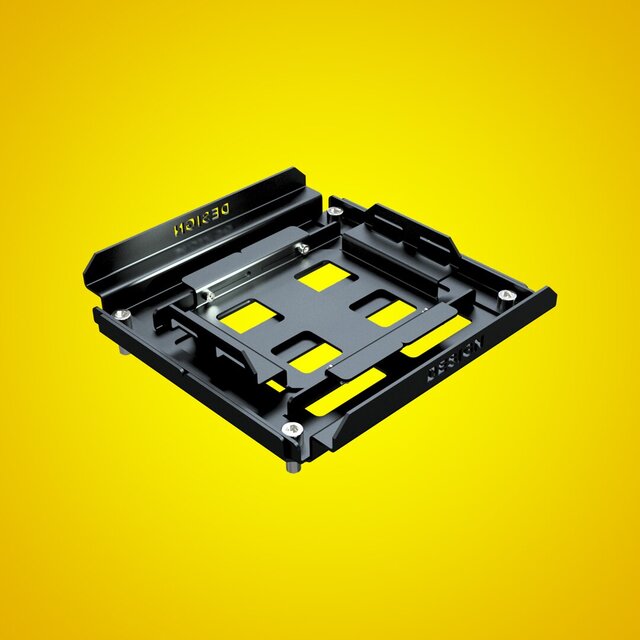

Heavy-duty battery support for vehicles, developed using the Skeleton Design methodology in Autodesk Inventor. This parametric approach utilizes multiple base sketches across different planes within a master part file, serving as foundational geometry for all components. The design features adjustable mounting points to accommodate various battery sizes: X-axis (horizontal) adjustment from 350 to 500 mm, and Y-axis (vertical) adjustment from 250 to 320 mm. The battery is secured with two mounting straps attached to slots in the Y-axis adjustable supports. The robust construction with strategic cutouts reduces weight while maintaining structural integrity, ideal for demanding automotive applications.
