5V & 3.3V Linear Regulated Power Supply

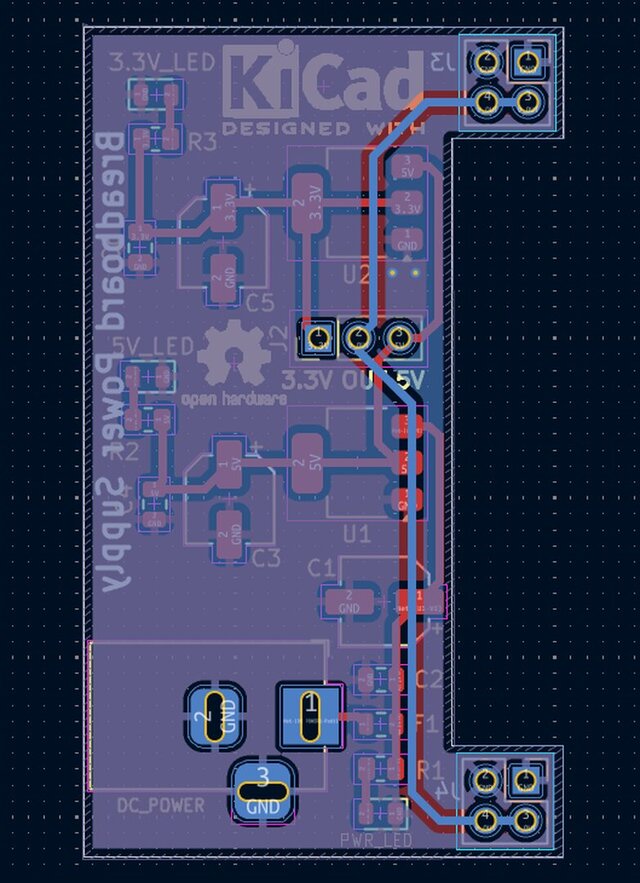

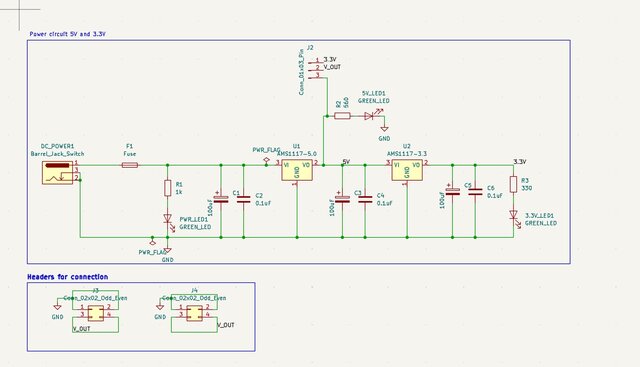

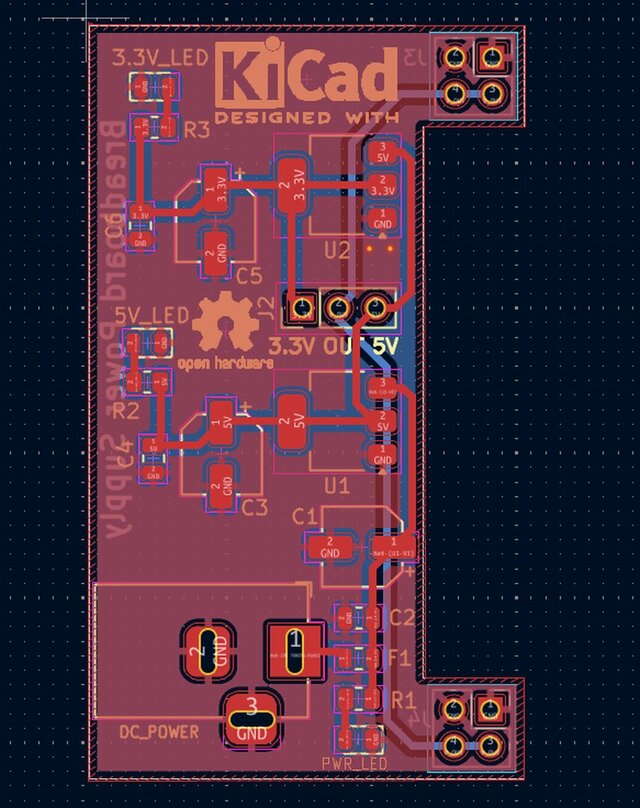

Designed and developed a compact dual-output regulated power supply PCB capable of providing stable 5V and 3.3V DC outputs from a single input source. The design is based on AMS1117 linear voltage regulators and is intended for powering embedded systems, IoT devices, development boards, and low-power electronic circuits. The PCB incorporates input fuse protection, power status LEDs, and dedicated output headers to ensure safe, reliable, and user-friendly operation. Careful attention was given to component placement, power routing, decoupling, and grounding to achieve a clean, manufacturable layout with stable voltage regulation. This project was designed in KiCad 9 following industry-standard PCB design practices, with a focus on reliability, ease of assembly, and production readiness. Key Features Dual regulated outputs: 5V and 3.3V AMS1117-5.0 and AMS1117-3.3 voltage regulators Input overcurrent protection using a fuse Power indicator LEDs for output monitoring Compact and manufacturable PCB layout Optimized power routing and grounding Designed using KiCad 9 Applications Embedded systems ESP32, STM32, and Arduino projects IoT hardware Sensor interface circuits Laboratory prototyping General-purpose regulated DC power supply Deliverables KiCad schematic and PCB design Production-ready Gerber files Drill files Bill of Materials (BOM) Pick & Place files Manufacturing-ready documentation
