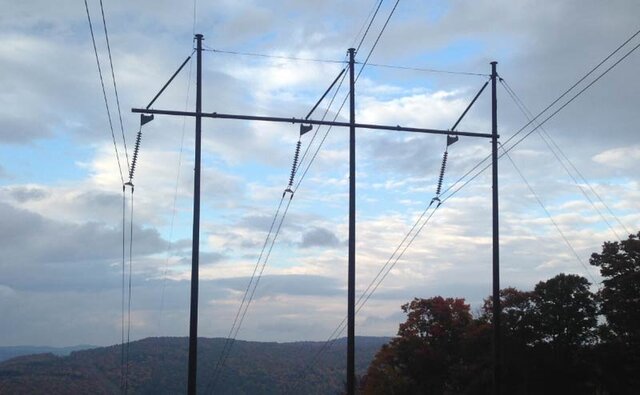

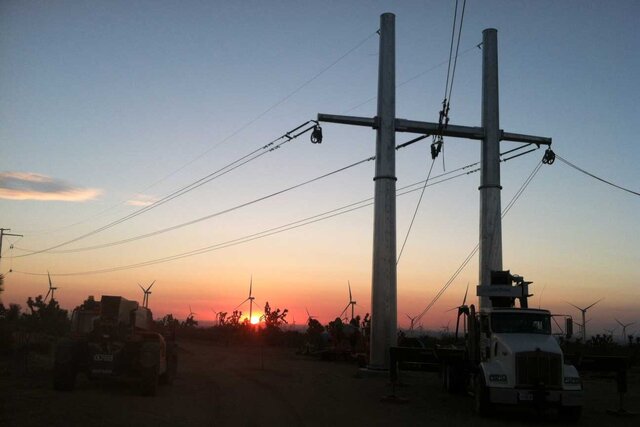

500kV H-Frame & Multi-Pole Steel Transmission Structures

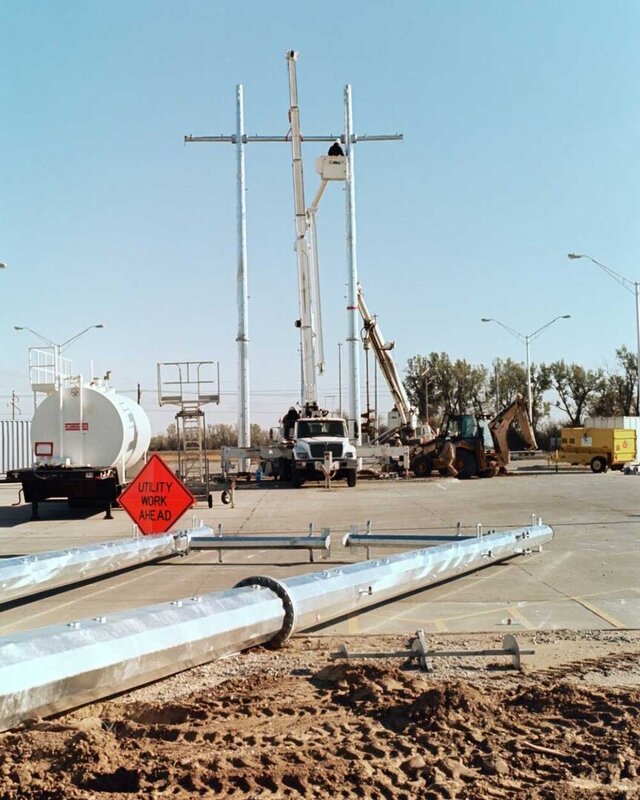

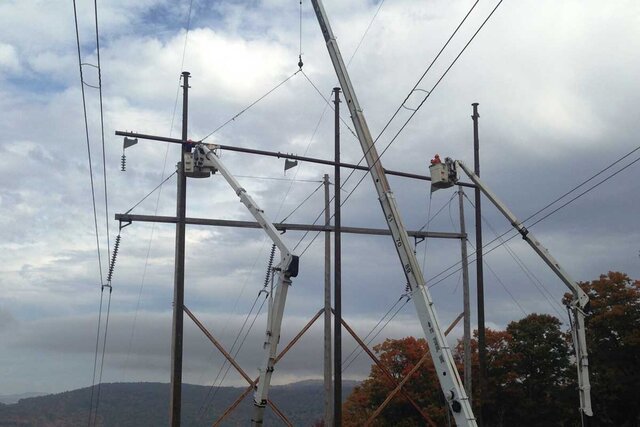

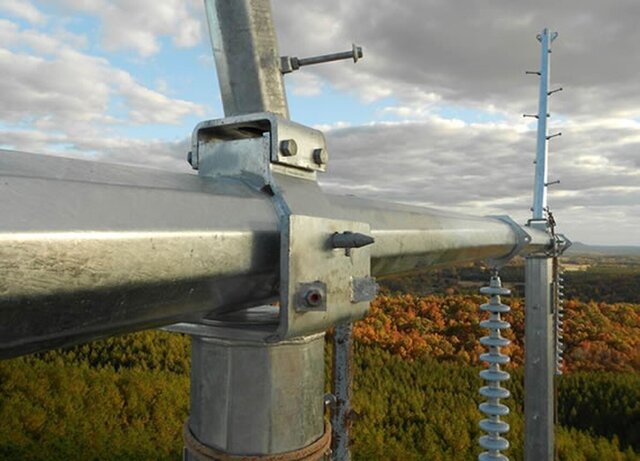

This project involved the structural design and detailing of heavy-duty utility infrastructure. I developed fabrication-ready 3D models for H-frame and 3-pole steel structures, ensuring compliance with international utility standards. The scope included designing for extreme environmental loads (wind/ice), preparing detailed Bill of Materials (BOM) for large-scale procurement, and overseeing the drafting of flanged connection details for octagonal steel poles. I also provided technical support for field installation and assembly sequences.
