500BBL Storage Tank

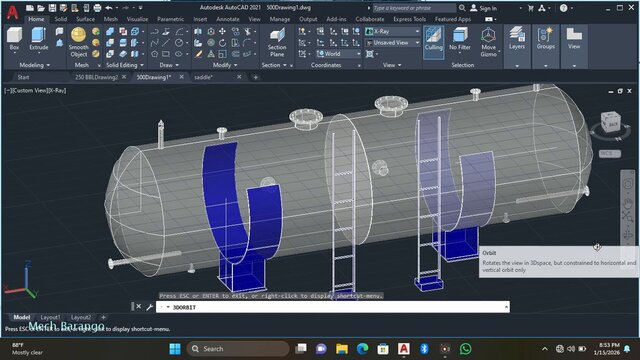

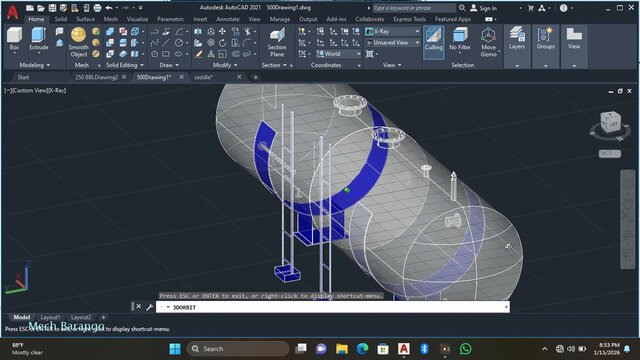

The 500-barrel storage tank is designed as a horizontal, cylindrical steel tank suitable for petroleum products and related fluids. The design complies with recognized industry standards, primarily API 650 / API 12F (as applicable to shop-fabricated tanks), with structural and fabrication considerations aligned with ASME best practices. Key Design Specifications Capacity: 500 BBL (≈79.5 m³) Orientation: Horizontal Compartments: Two (2) internal compartments for product segregation and operational flexibility Manholes: Two (2) manholes, one per compartment, designed for inspection, cleaning, and maintenance access Nozzles: Standard process nozzles sized DN 150 Includes inlet, outlet, drain, vent, and overflow nozzles as required Nozzle reinforcement provided where necessary in accordance with code requirements Material & Corrosion (Rust) Tolerance Shell, heads, and internals: Carbon steel (e.g., ASTM A36 or equivalent) Corrosion allowance: Provided to improve service life and rust tolerance Surface protection: Internal coating suitable for stored product External surface prepared and coated with anti-corrosion primer and protective paint system for environmental exposure Structural & Safety Features Properly designed saddle supports for horizontal mounting Venting provisions to prevent over-pressure or vacuum conditions Weld joints designed and inspected in line with applicable standards Allowance for thermal expansion and operational loads
