3D Scan to Parametric CAD | Reverse Engineering for 3D Printing

Report

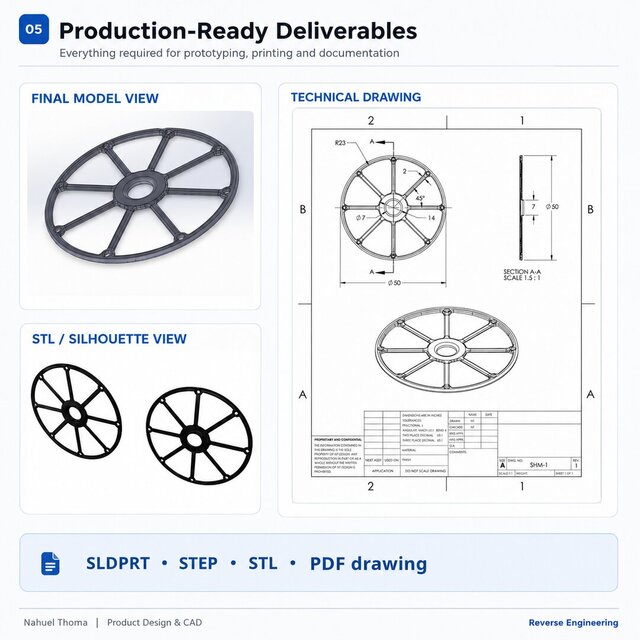

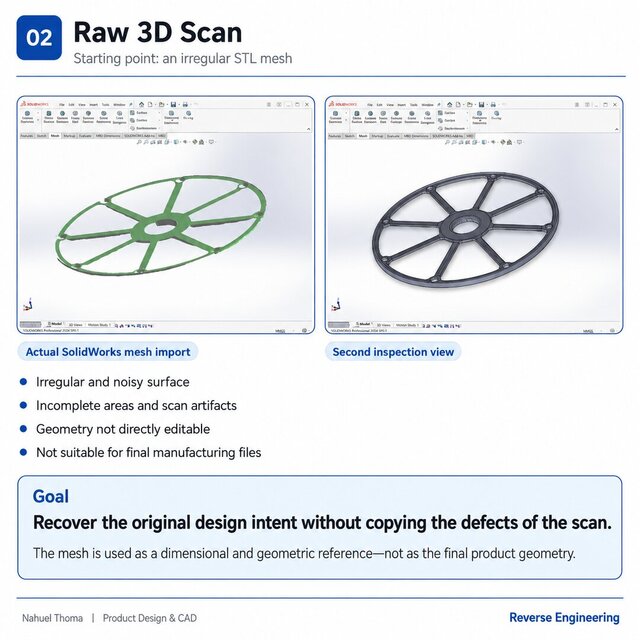

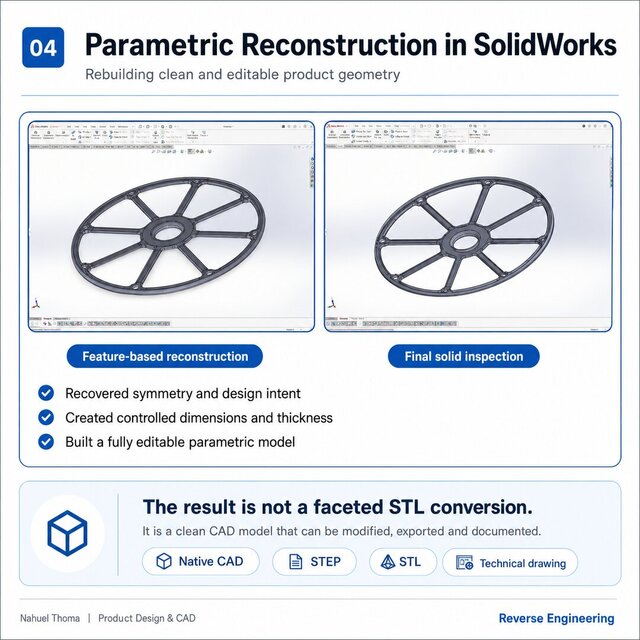

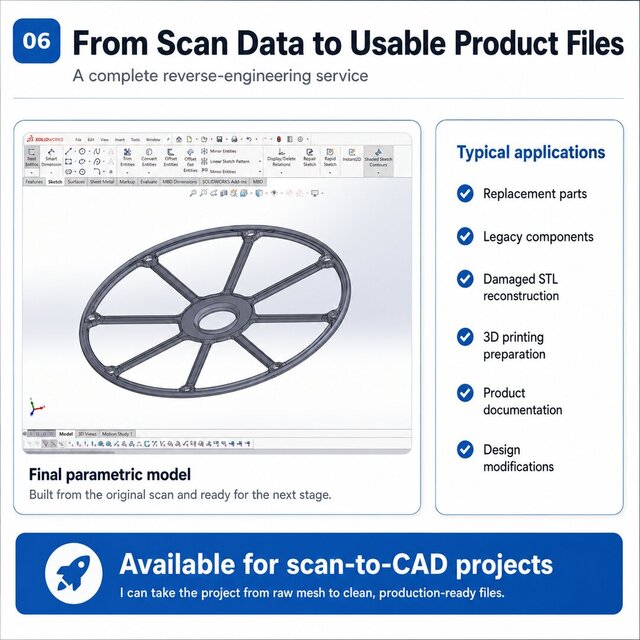

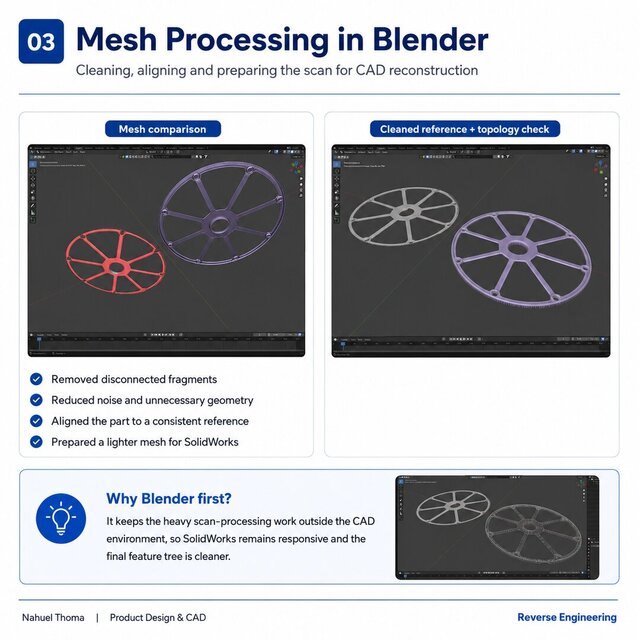

Reverse engineering project developed from 3D scan data and reference geometry into a clean, editable parametric CAD model. The workflow focused on reconstructing the original part geometry, correcting scan imperfections, defining controlled dimensions, and producing a manufacturable model suitable for further modification and 3D printing. The result is a structured CAD model rather than a simple mesh conversion, allowing dimensions and features to be edited as needed. Scope: Reverse engineering, 3D scan reconstruction, parametric CAD modeling, geometry cleanup, dimensional control, and 3D-print-ready design.
Published
in Part-to-CAD Modeling Mechanical CAD Design 3D Scan to CAD Service
3d-printing product-design mechanical-design 3d-scan cad-modeling reverse-engineering scan-to-cad parametric-modeling cad-reconstruction part-reconstruction mesh-to-cad geometry-reconstruction manufacturable-cad

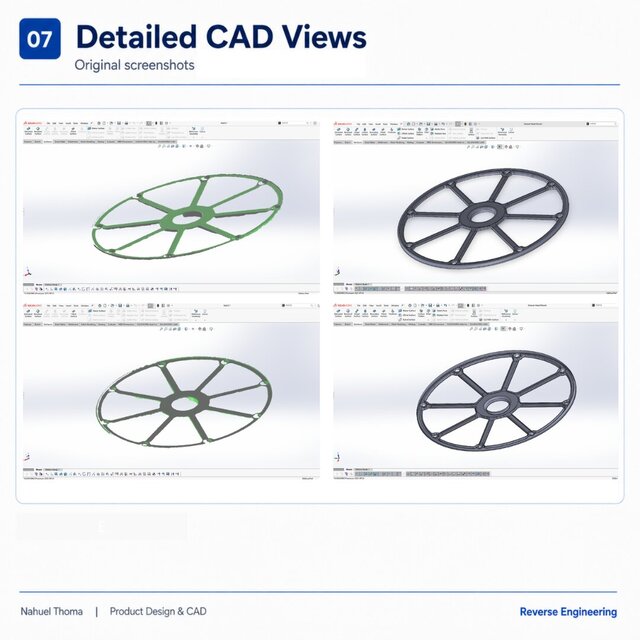

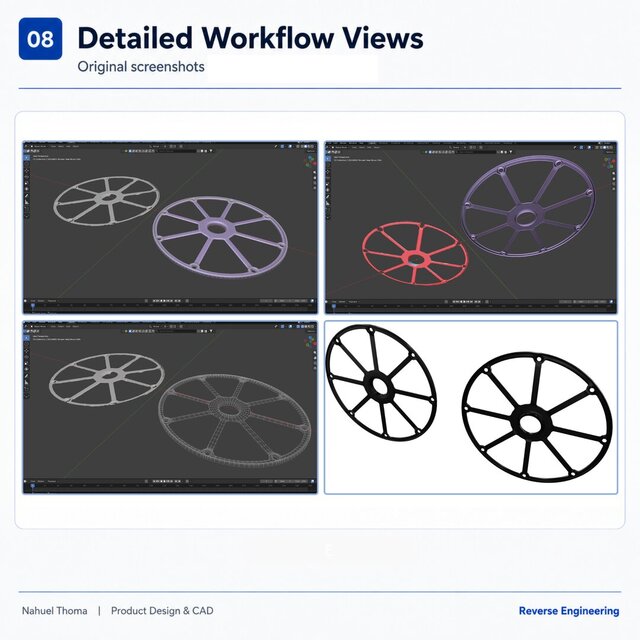

Rendering Images
