3D Printed Sealed IP54 Enclosure Design for NFC Reader

Report

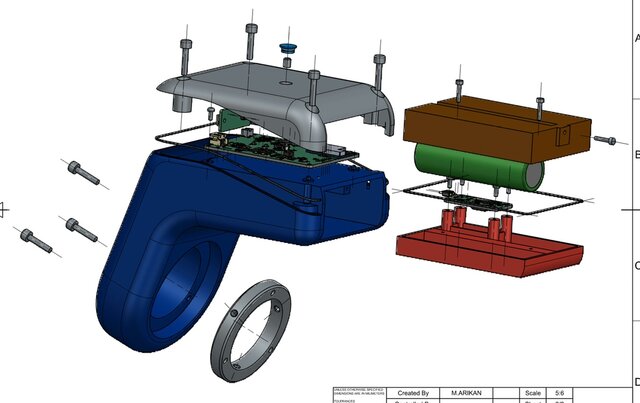

Custom L-shaped IP54 sealed electronics enclosure for an NFC sensor product. Features a removable battery drawer, locking ring mechanism, and press-fit PCB mounting. Designed for 3D printing with full DFM consideration. Delivered as production-ready STEP/STL files with assembly drawings.
Published
in CAD Design Design for Manufacturability (DFM Services) Electronic Enclosures Design
sensor 3d-printing enclosure waterproof nfc ip-rated-enclosure pcb-enclosure-design sensor-enclosure ip-rated

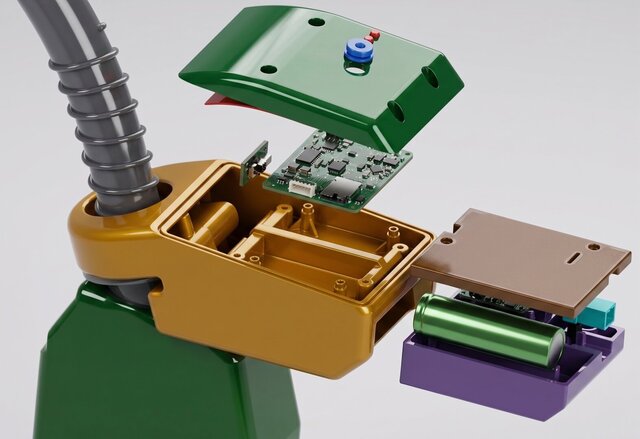

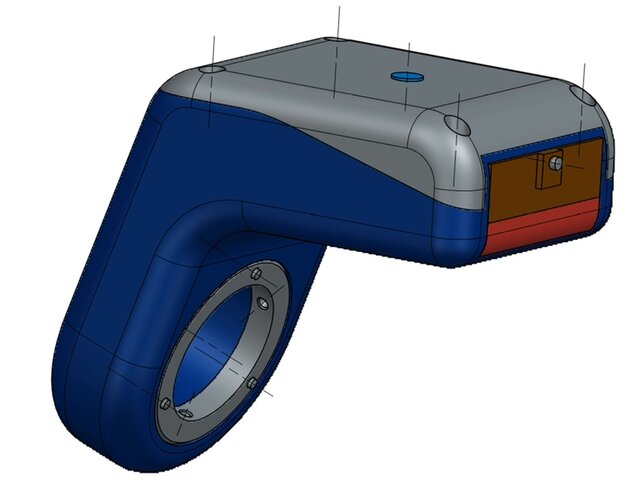

Rendering Images
