3D Model and Detailed Drawings of a Parametric Steel Staircase

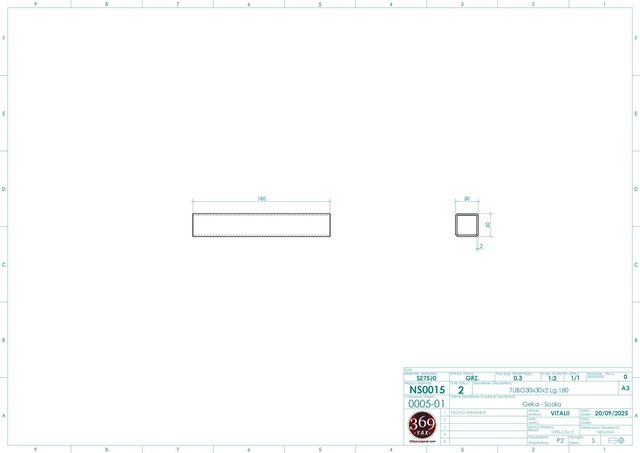

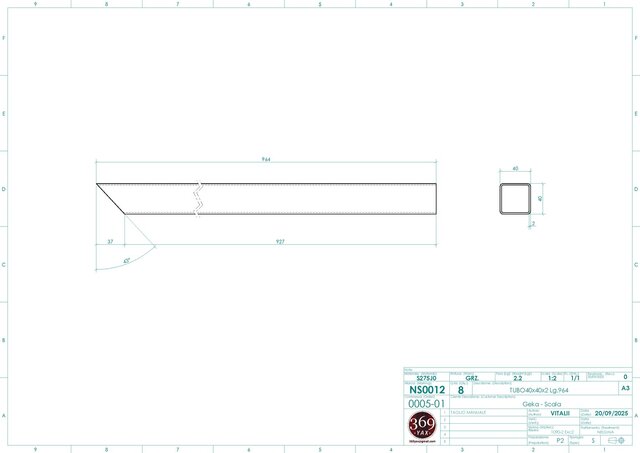

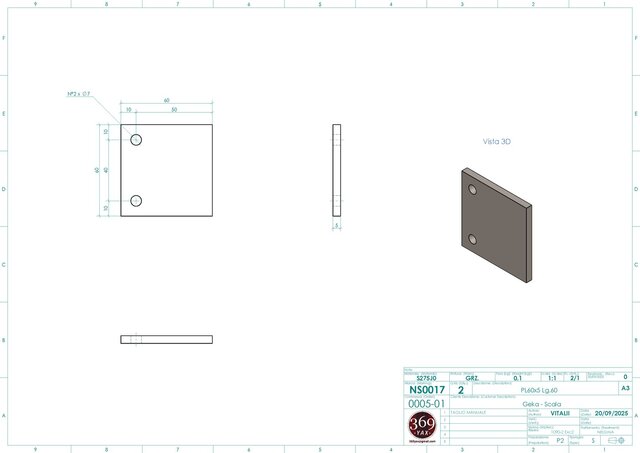

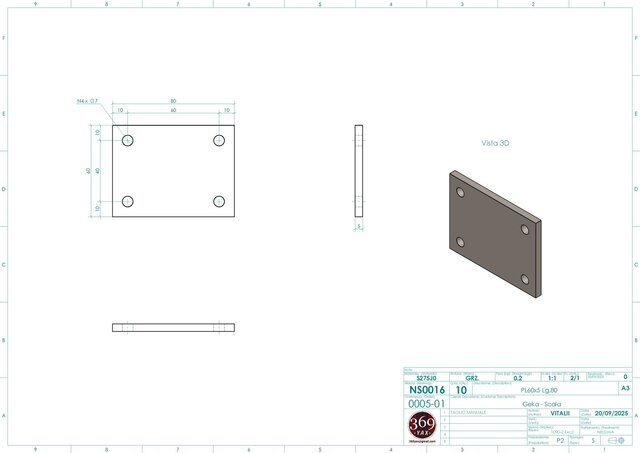

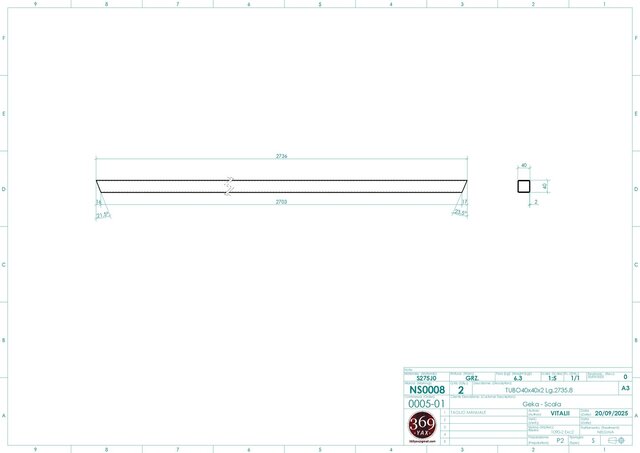

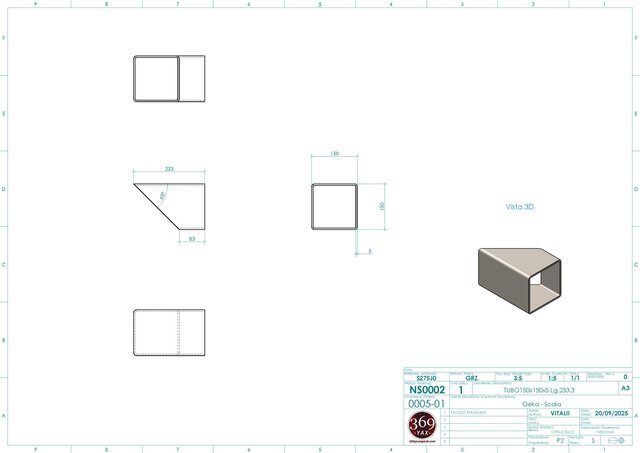

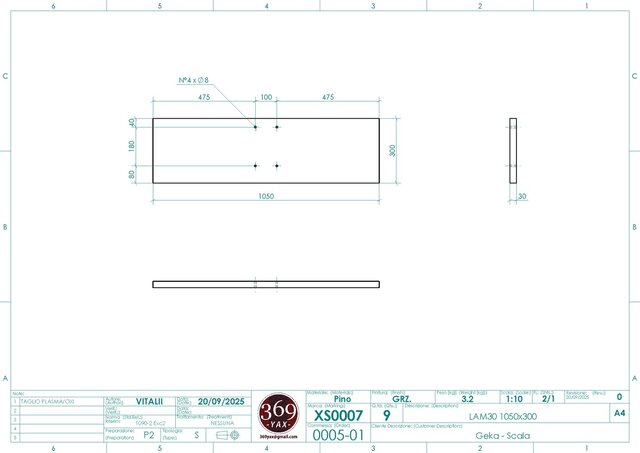

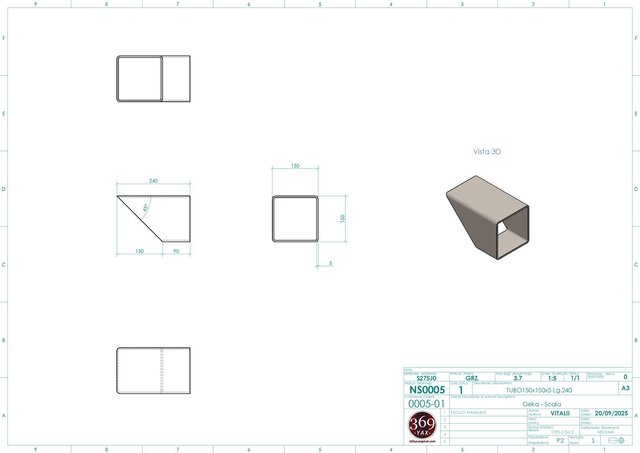

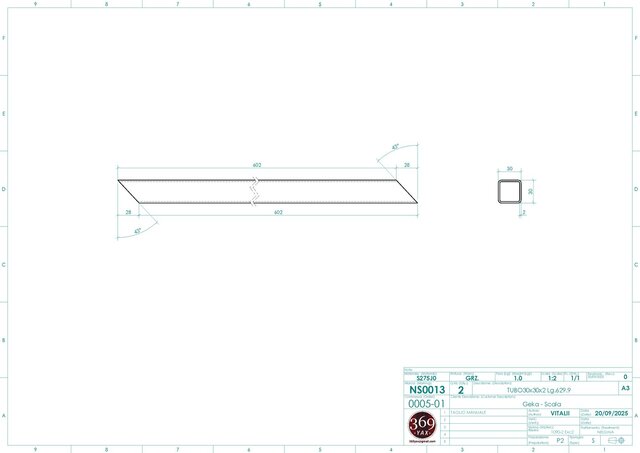

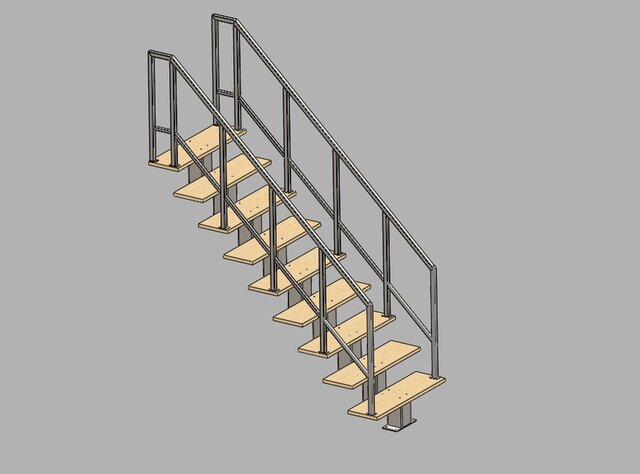

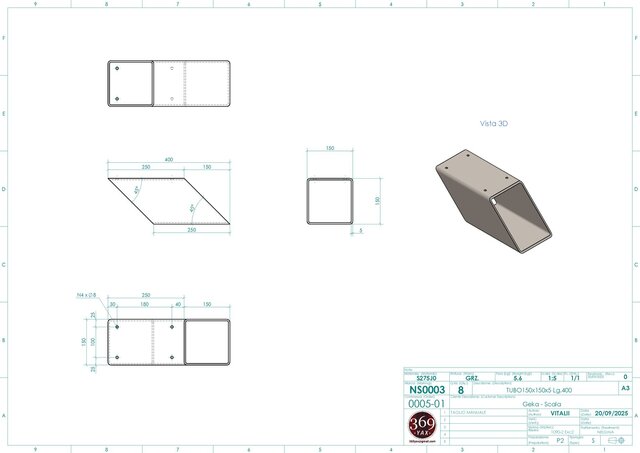

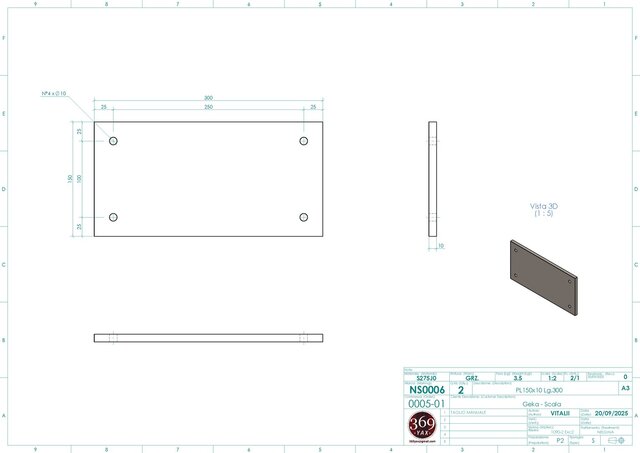

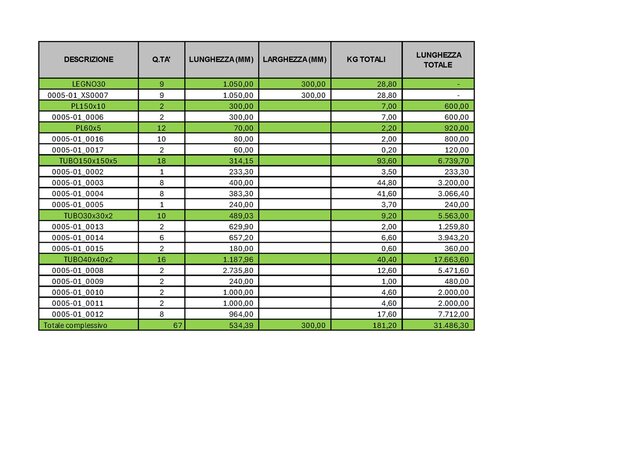

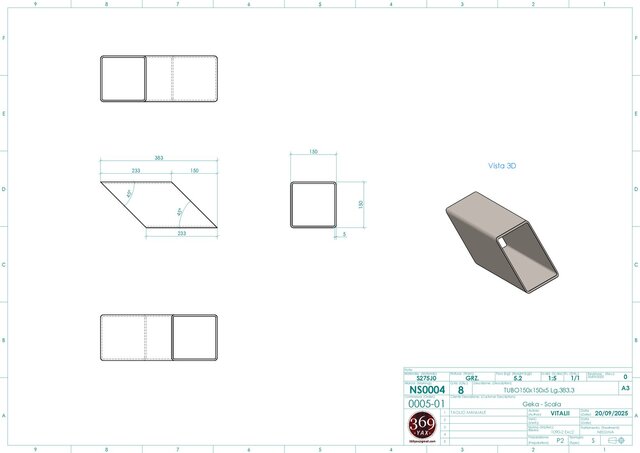

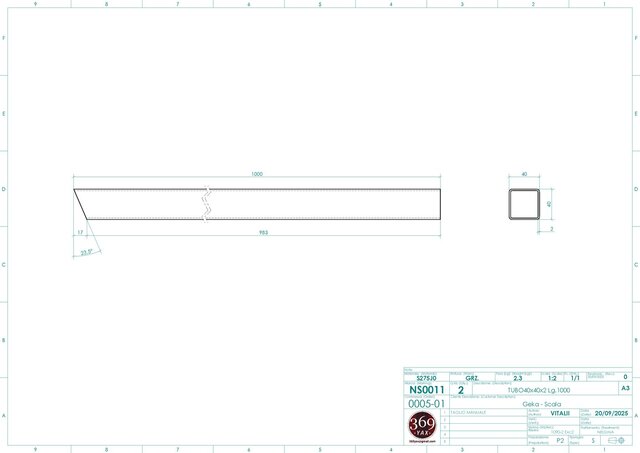

I designed a fully parametric steel staircase in SolidWorks, using custom structural profiles. The 3D model allows for dynamic changes in height, width, number of steps, and handrail configuration using design parameters or equations. The project includes: Complete 3D assembly and part models Fully detailed manufacturing drawings (with BOM) Ready-to-export DXF files for laser cutting Production-oriented design considering welding and bending processes Ideal for residential, commercial, or industrial use.
