20M HIGH EMERGENCY LADDER AND CONTROL TOWER ROOM FRAME

Report

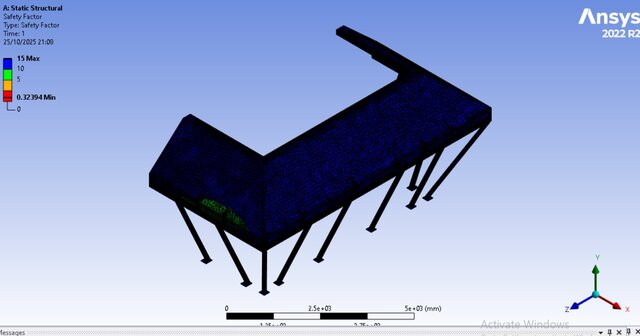

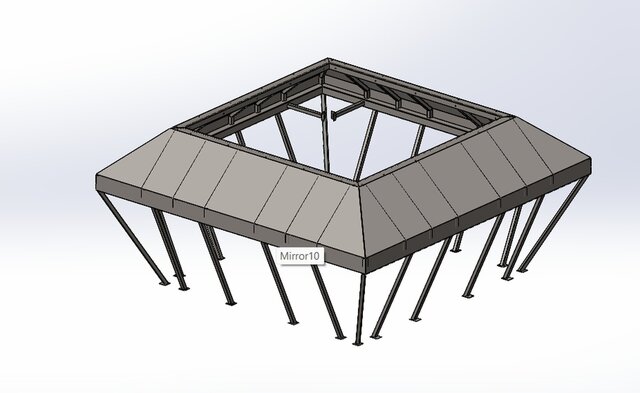

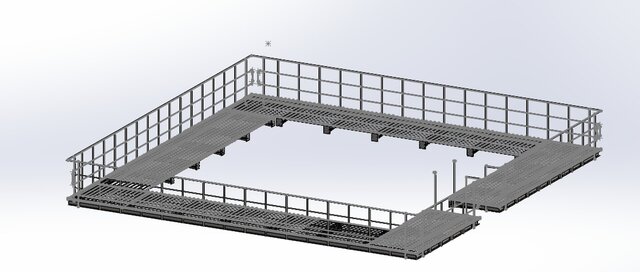

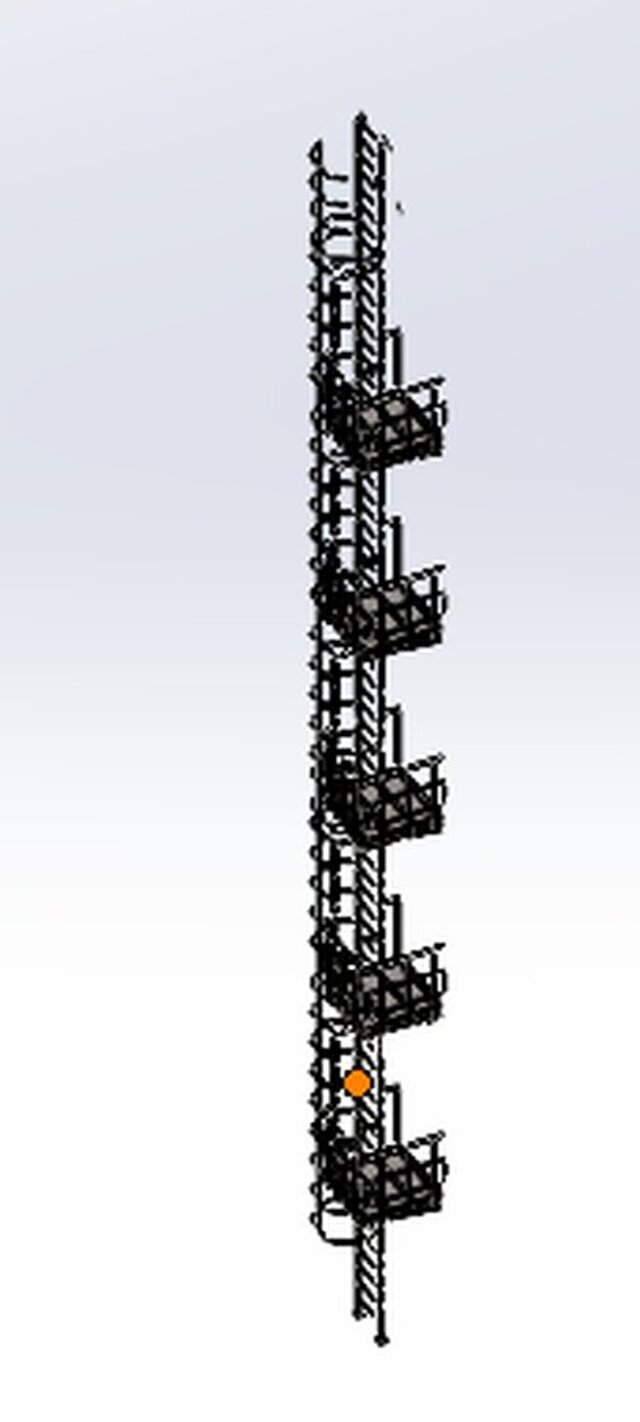

The project requires the modelling, analysis, structural optimization, and fabrication of an airport control tower steel frame, landind floors and an emergency monkey ladder to serve the tower in the high temperature and windy region of Nigeria. ROLE: Design Engineer i. Solidworks for modelling using Sheetmetal and weldments. ii. ANYS workbench for static analysis to optimize and validate design using the result of the static, the modal, and fatigue analysis. iii. Excel for BOM/BOQ. iv. Solid works for shop, fabrication and installation drawing.
Published
in FEA Finite Element Analysis SolidWorks Design Services Metal Design and Fabrication
fabrication-drawing finite-element-analysis thermal-analysis static-analysis geometric-dimensioning-and-tolerancing sheetmetal-design ansys-analysis solidwork-assembly
Rendering Images
