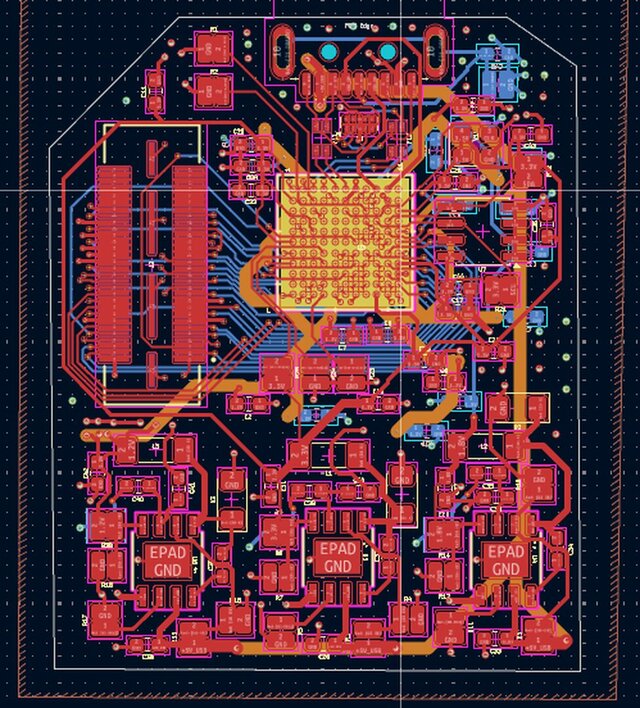

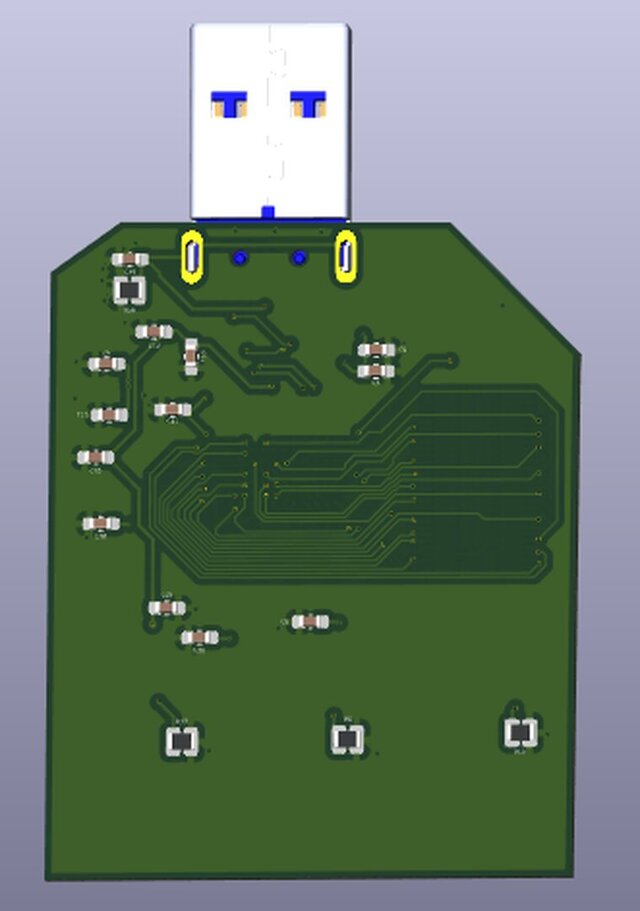

This project focuses on designing a high-speed USB 3.0 PCB using the CYUSB3014 FX3 controller from Infineon Technologies. The objective is to develop a reliable hardware platform capable of supporting USB 3.0 SuperSpeed data transfer up to 5 Gbps and parallel communication through the GPIF II interface. The design includes multiple power rails such as 1.2V, 1.8V, and 3.3V, along with decoupling capacitors for stable power distribution. A 19.2 MHz crystal oscillator, USB connector, and EEPROM/SPI flash are integrated for clocking and boot configuration. Special PCB layout rules are followed, including controlled impedance differential routing, length matching, solid ground planes, and minimized vias to maintain signal integrity. This project improves practical knowledge of high-speed PCB design, power management, signal integrity, and embedded hardware development.
