125mm Industrial Steam Stop Valve Assembly

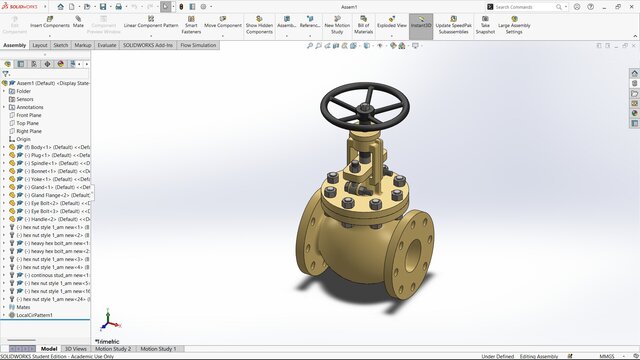

A high-precision 3D assembly of a 125mm Steam Stop Valve designed for industrial high-pressure applications. This project showcases detailed mechanical design, including: • Complete Assembly Modeling: Detailed body, bonnet, spindle, and gland mechanism. • Standardized Fastening: Implementation of local circular patterns for hex bolts and nuts, ensuring structural integrity. • Industrial Compliance: Designed with standard flanged ends for seamless integration into 125mm piping systems. • Motion Ready: Precisely constrained mates allowing for realistic spindle and handle rotation.
