1200T Automotive Steel Progressive Stamping Die | Full 3D Die Design

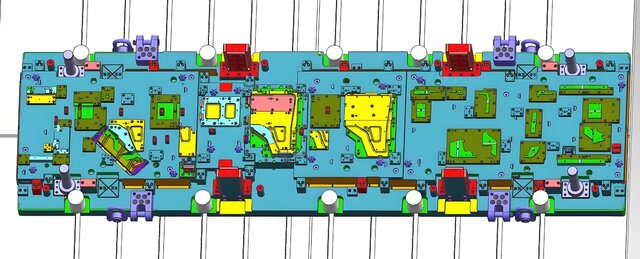

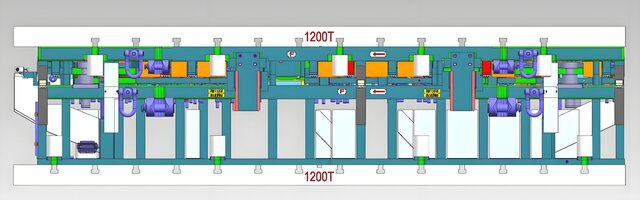

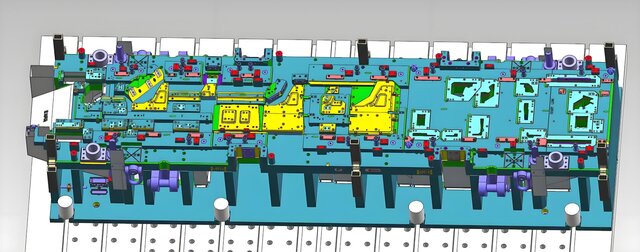

This is a full 3D design of a 1200-ton steel progressive stamping die developed for automotive sheet metal components. The die integrates multiple stamping stations on a single strip layout, covering piercing, blanking, bending & forming, trimming, restriking and final part separation, to enable continuous high-speed mass production on 1200T press lines. Core Design Highlights Strip layout optimized through DFM analysis, maximizing material utilization and long-run production stability High-precision guide pillar & bushing system, guaranteeing consistent die alignment under high-speed stamping cycles Independent stripper mechanism with uniform pressure distribution, ensuring high accuracy of formed part dimensions Reinforced die structure verified by rigidity calculation, suitable for long-term mass production conditions Built-in safety detection and mistake-proof features, compliant with international stamping die standards We provide end-to-end stamping die design services: product DFM feasibility analysis, strip process planning, full 3D die structure design, 2D detailed engineering drawings, and on-site tryout technical support. We specialize in steel progressive dies, single-station dies and transfer dies for automotive, home appliance and hardware industries, and can deliver design packages fully aligned with global die manufacturing standards.
